Sony STR-DG500 Service Manual

10

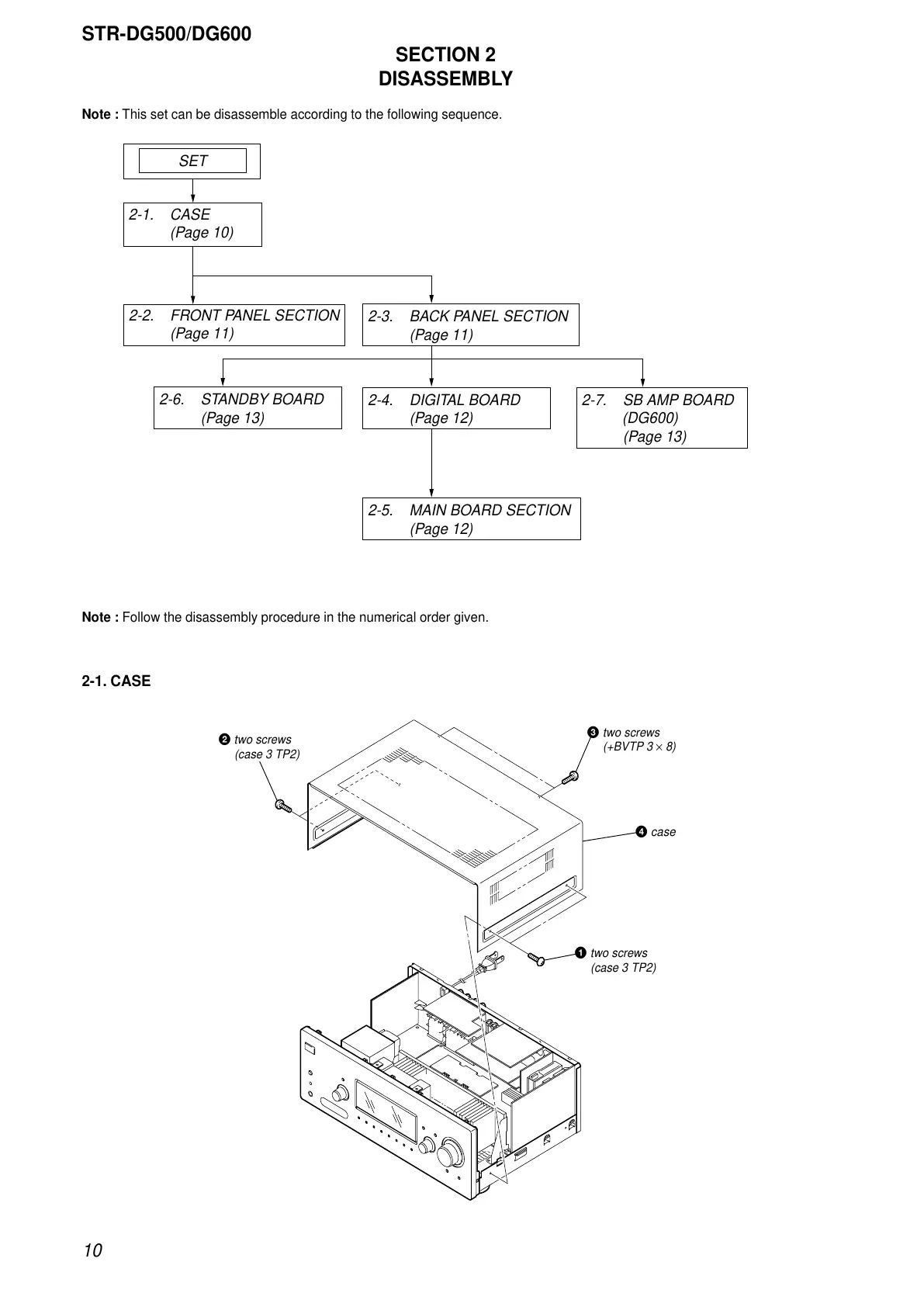

STR-DG500/DG600
Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
2-1. CASE
(Page 10)
2-2. FRONT PANEL SECTION
(Page 11)
2-3. BACK PANEL SECTION
(Page 11)
SET
2-6. STANDBY BOARD
(Page 13)
2-4. DIGITAL BOARD
(Page 12)
2-7. SB AMP BOARD
(DG600)
(Page 13)
2-5. MAIN BOARD SECTION
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.
1 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 two screws
(+BVTP 3
× 8
)
4 case
All manuals and user guides at all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
