Sony STR-DG500 Service Manual

60
STR-DG500/DG600

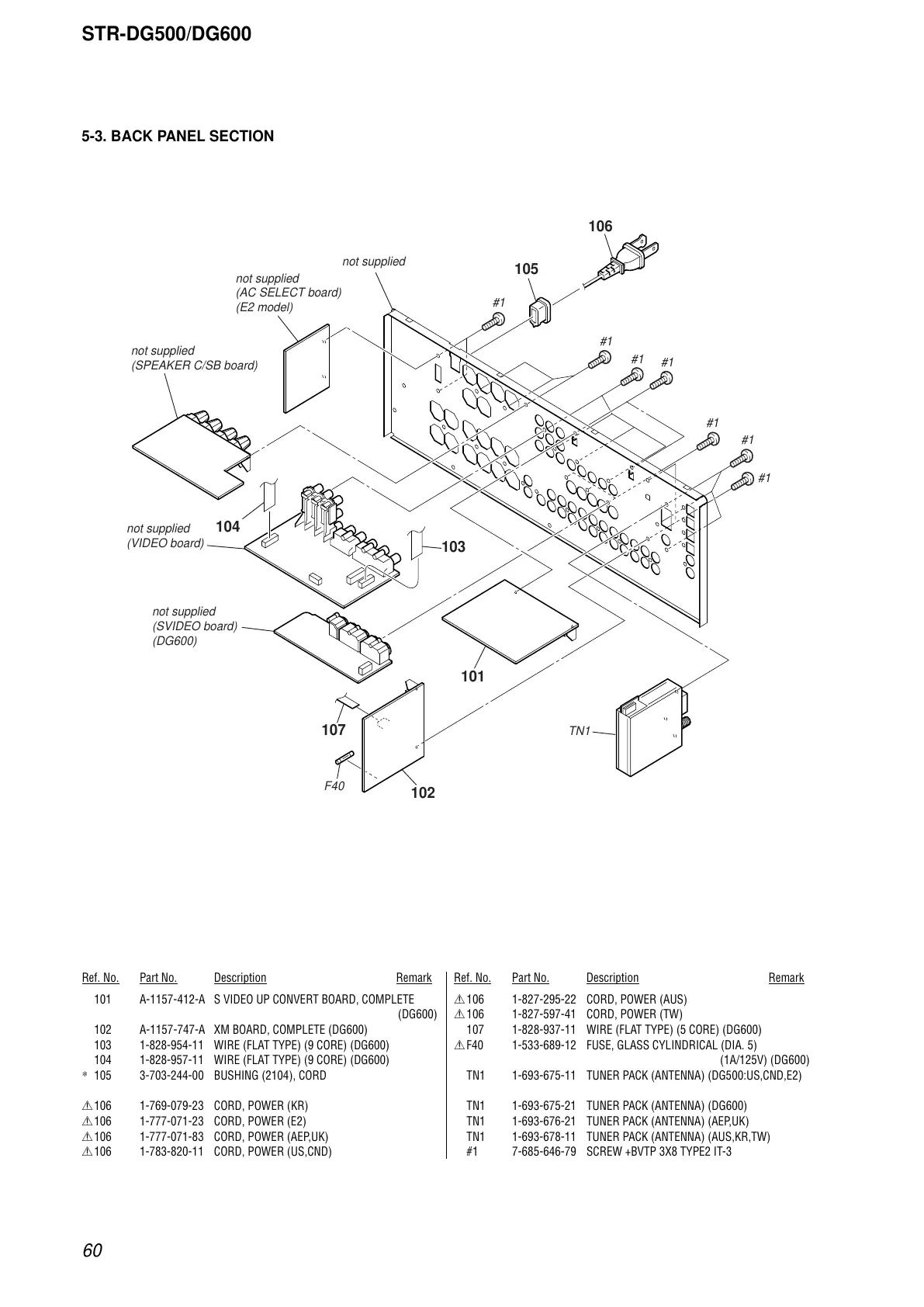

5-3. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1157-412-A S VIDEO UP CONVERT BOARD, COMPLETE
(DG600)
102 A-1157-747-A XM BOARD, COMPLETE (DG600)
103 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (DG600)
104 1-828-957-11 WIRE (FLAT TYPE) (9 CORE) (DG600)
* 105 3-703-244-00 BUSHING (2104), CORD
0106 1-769-079-23 CORD, POWER (KR)
0106 1-777-071-23 CORD, POWER (E2)
0106 1-777-071-83 CORD, POWER (AEP,UK)
0106 1-783-820-11 CORD, POWER (US,CND)
0 106 1-827-295-22 CORD, POWER (AUS)
0 106 1-827-597-41 CORD, POWER (TW)
107 1-828-937-11 WIRE (FLAT TYPE) (5 CORE) (DG600)
0 F40 1-533-689-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(1A/125V) (DG600)
TN1 1-693-675-11 TUNER PACK (ANTENNA) (DG500:US,CND,E2)
TN1 1-693-675-21 TUNER PACK (ANTENNA) (DG600)
TN1 1-693-676-21 TUNER PACK (ANTENNA) (AEP,UK)
TN1 1-693-678-11 TUNER PACK (ANTENNA) (AUS,KR,TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
105
106
101
103
104
102
107
#1
#1
#1
#1
#1
#1
#1
not supplied
(AC SELECT board)
(E2 model)
not supplied
(SVIDEO board)
(DG600)
not supplied
(VIDEO board)
not supplied
(SPEAKER C/SB board)
TN1
not supplied
F40
All manuals and user guides at all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
