STR-DG500/DG600
4646
STR-DG500/DG600

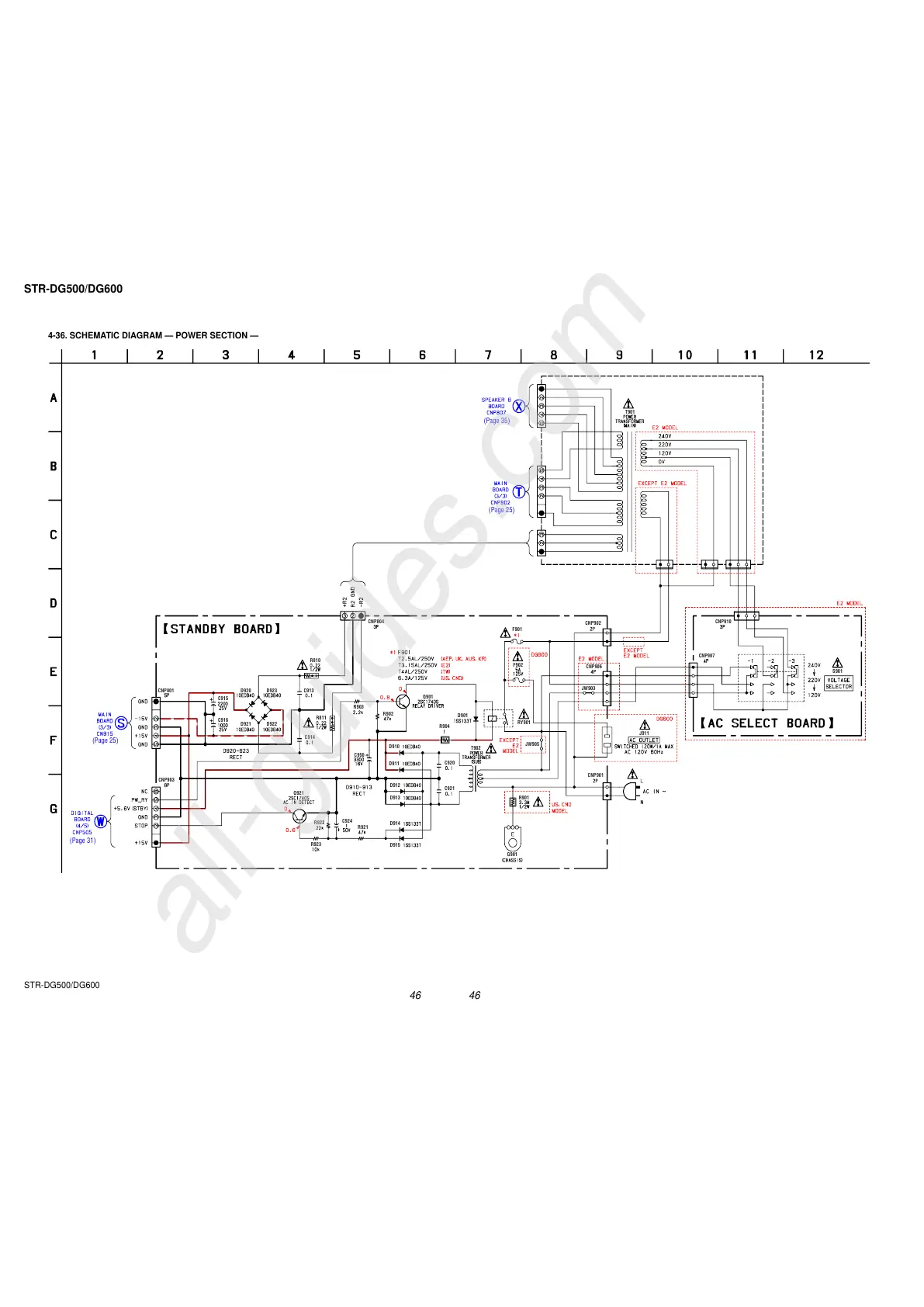

4-36. SCHEMATIC DIAGRAM — POWER SECTION —
C915
C916
D920
D921 D922
D923
R903
R902
D910
D911
D912
D913
D914
D915
CNP902
R923
R922
R921
C913
C914
C924
CNP903
R904
CNP801
CNP804
CNP906
R811
R810
C950
JW905
JW903
C920
RY901
C921
CNP901
CNP910
CNP907
Q901
D901
T902
Q921
F901
F902
R901
J911
S901
T901
G901
(Page 25)
(Page 31)
(Page 35)
(Page 25)
