Sony STR-DG500 Service Manual

12
STR-DG500/DG600

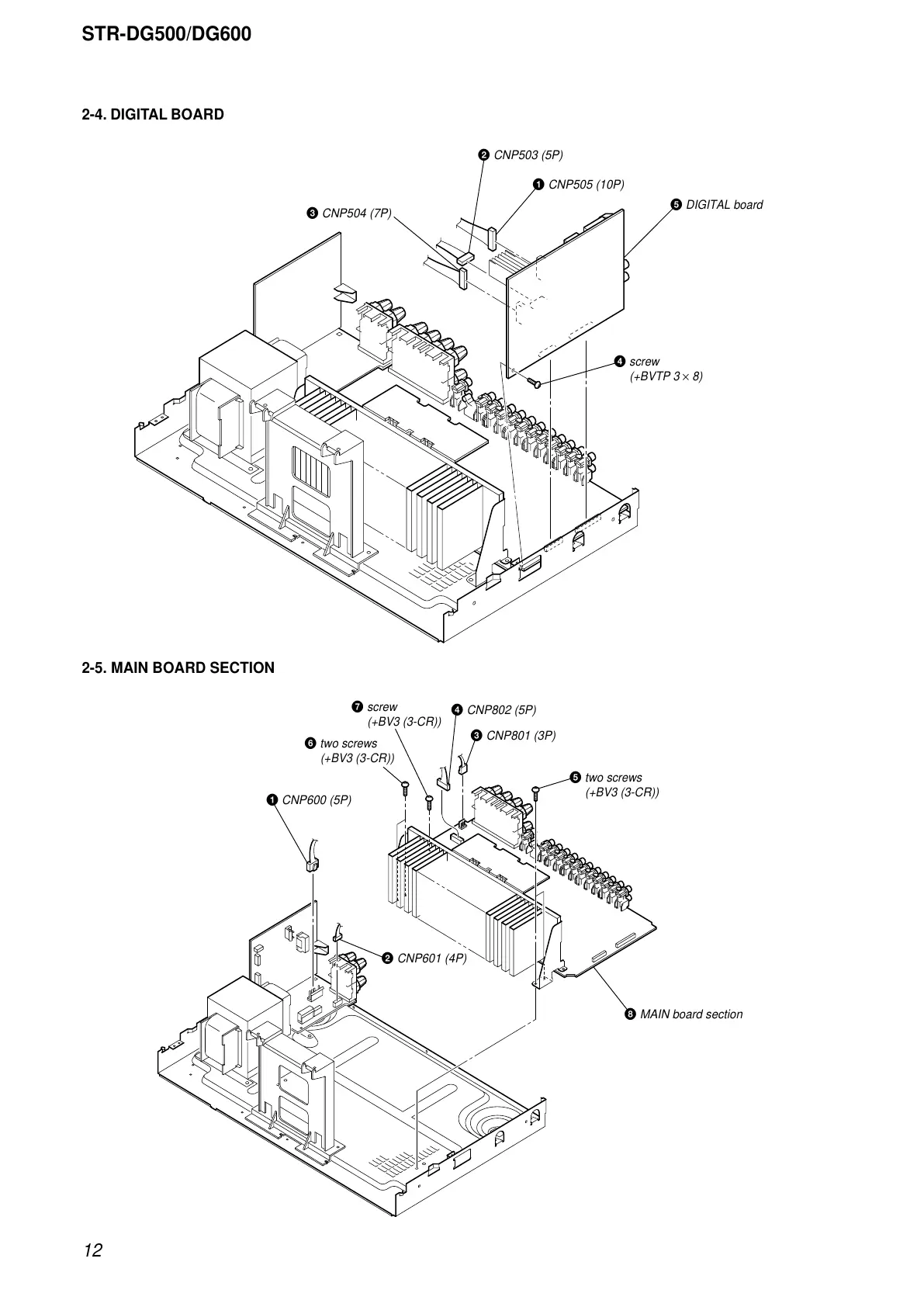

2-4. DIGITAL BOARD
2-5. MAIN BOARD SECTION
4 screw
(+BVTP 3
× 8)
5 DIGITAL boar
d
1 CNP505 (10P)
2 CNP503 (5P)
3 CNP504 (7P)
5 two screws
(+BV3 (3
-CR) )
8 MAIN board section
6 two screws
(+BV3 (3
-CR) )
7 screw
(+BV3 (3
-CR) )
1 CNP600 (5P)
3 CNP801 (3P)
4 CNP802 (5P)
2 CNP601 (4P)
All manuals and user guides at all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
