Sony STR-DG500 Service Manual

STR-DG500/DG600
1818
STR-DG500/DG600

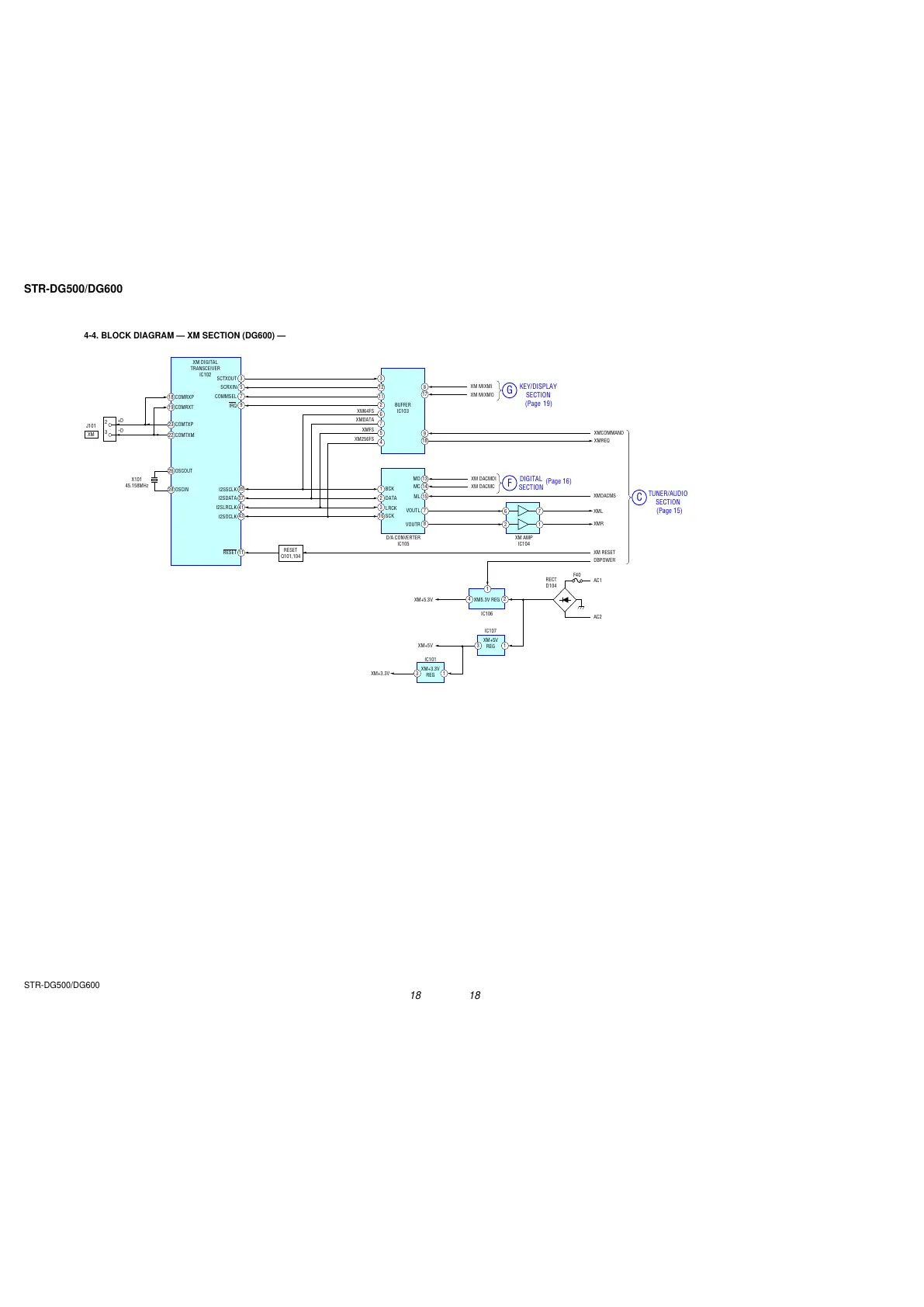

4-4. BLOCK DIAGRAM — XM SECTION (DG600) —
18 COMRXP
23 COMTXP
J101
XM DIGITAL
TRANSCEIVER
IC102
BUFFER
IC103
X101
45.158MHz
XM
+D
–D
2
3
22 COMTXM
3
SCTXOUT
5
SCRXIN
7
COMMSEL
9
IRQ
XM64FS
XMDATA
XMFS
XM256FS
3
12
11
2
6
7
5
4
1
39
I2SSCLK
8
17
2
37
I2SDATA
3
41
I2SLRCLK
16
43
I2SOCLK
11
RESET
26 OSCOUT
28 OSCIN
XM MIXMI
XM MIXMO
9
18
XMCOMMAND
XMREQ
13
MD
14
MC
XM DACMDI
XM DACMC
BCK
DATA
LRCK
SCK
15
ML
7
VOUTL
XMDACMS
XML
XMR
XM RESET
DBPOWER
AC1
AC2
19 COMRXT
6 7
8
VOUTR
XM+3.3V
XM+5V
XM+5.3V
2
1
4 2
1
3 1
3 1
RESET
Q101,104
D/A CONVERTER
IC105
XM AMP
IC104
IC106
F40
RECT
D104
IC107
XM+5V
REG
IC101
XM+3.3V
REG
XM5.3V REG
KEY/DISPLAY
SECTION
G
TUNER/AUDIO
SECTION
C
DIGITAL
SECTION
F
(Page 19)
(Page 15)
(Page 16)
All manuals and user guides at all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
