Sony STR-DG500 Service Manual

STR-DG500/DG600
45 45
STR-DG500/DG600

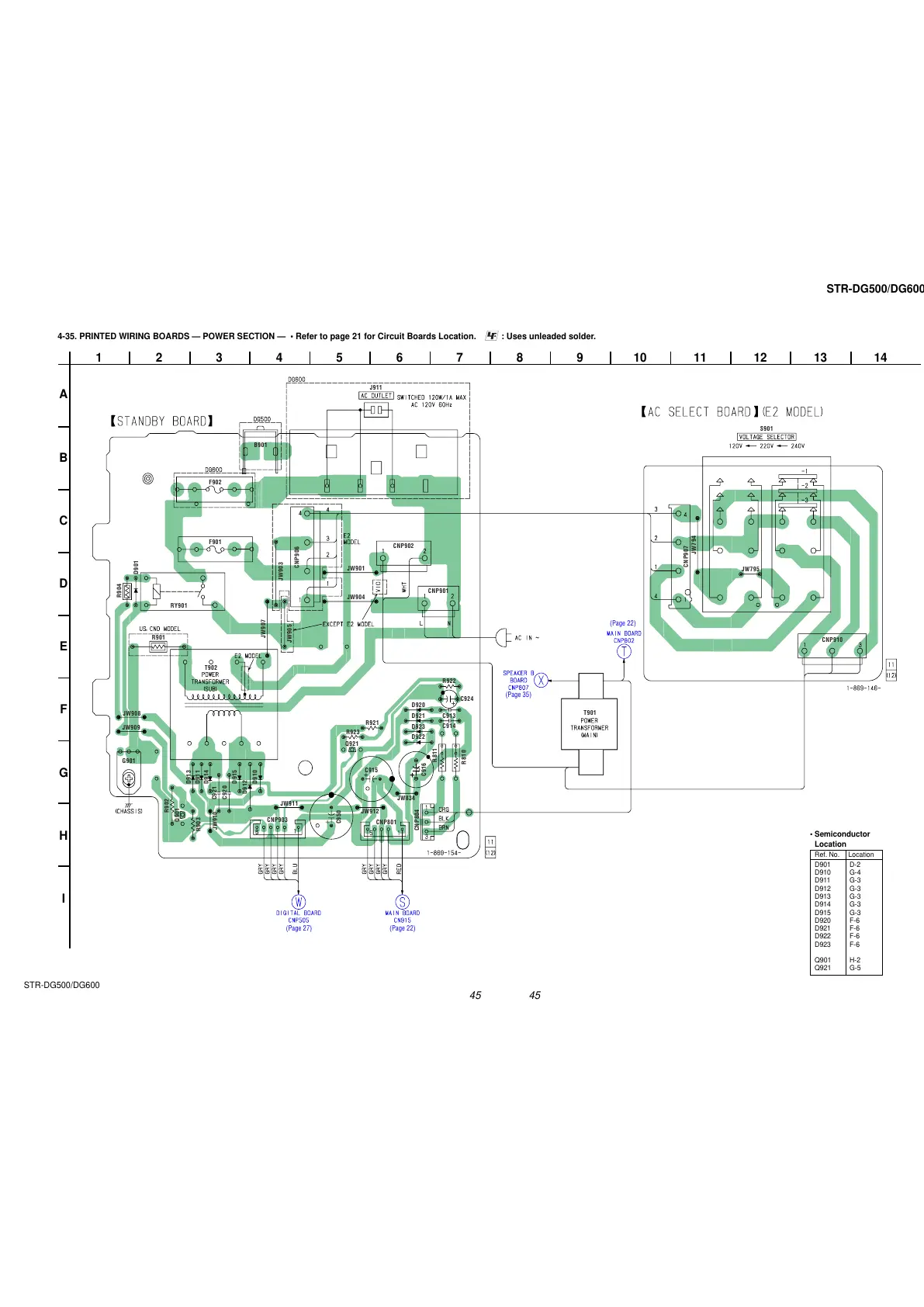

4-35. PRINTED WIRING BOARDS — POWER SECTION — • Refer to page 21 for Circuit Boards Location. : Uses unleaded solder.
1
A
B
C
D
E
F
G
H
I
234567891011 12 13 14
CNP907
CNP910
JW795
T901
JW794
S901
J911
R921
C950
Q921
R922
R923
C914
C915
C916
D920
D921
D922
D923
R810
R811
CNP804
CNP901
CNP906
CNP902
CNP801
C924
C913
D914
JW834
JW904
JW903
JW901
JW907
CNP903
D913
D911
RY901
F901
F902
T902
Q901
G901
R901
B901
JW905
D915
C920
C921
D910
D912
R903
R902
D901
R904
JW908
JW909
JW910
JW911
JW912
D901 D-2
D910 G-4
D911 G-3
D912 G-3
D913 G-3
D914 G-3
D915 G-3
D920 F-6
D921 F-6
D922 F-6
D923 F-6
Q901 H-2
Q921 G-5
• Semiconductor
Location
Ref. No. Location
(Page 27)
(Page 22)
(Page 35)
(Page 22)
All manuals and user guides at all-guides.com

Sony STR-DG500 Specifications

General

Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Component Video Output	1
Power Output	100 watts per channel
Output Power	100W per channel (6 ohms, 1 kHz, THD 0.9%)
Surround Sound Formats	Dolby Digital, DTS
Dimensions (W x H x D)	430 x 157.5 x 298 mm
Frequency Response	10 Hz - 50 kHz
Inputs	HDMI, Component Video, Digital Audio, Analog Audio
Outputs	HDMI, Component Video
