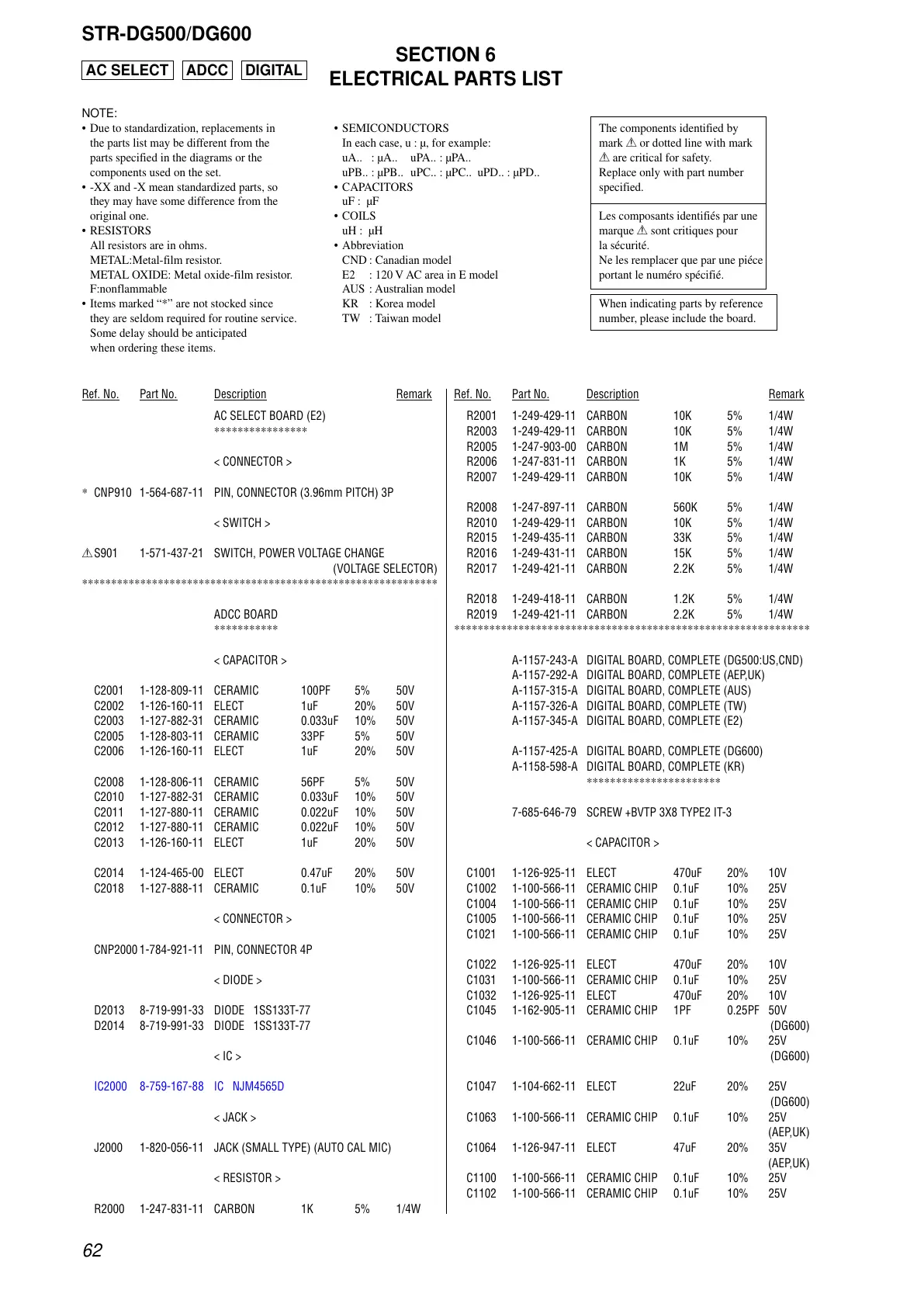

STR-DG500/DG600
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AC SELECT BOARD (E2)
****************
< CONNECTOR >
* CNP910 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
< SWITCH >
0S901 1-571-437-21 SWITCH, POWER VOLTAGE CHANGE
(VOLTAGE SELECTOR)
*************************************************************
ADCC BOARD
***********
< CAPACITOR >
C2001 1-128-809-11 CERAMIC 100PF 5% 50V
C2002 1-126-160-11 ELECT 1uF 20% 50V
C2003 1-127-882-31 CERAMIC 0.033uF 10% 50V
C2005 1-128-803-11 CERAMIC 33PF 5% 50V
C2006 1-126-160-11 ELECT 1uF 20% 50V
C2008 1-128-806-11 CERAMIC 56PF 5% 50V
C2010 1-127-882-31 CERAMIC 0.033uF 10% 50V
C2011 1-127-880-11 CERAMIC 0.022uF 10% 50V
C2012 1-127-880-11 CERAMIC 0.022uF 10% 50V
C2013 1-126-160-11 ELECT 1uF 20% 50V
C2014 1-124-465-00 ELECT 0.47uF 20% 50V
C2018 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
CNP2000 1-784-921-11 PIN, CONNECTOR 4P
< DIODE >
D2013 8-719-991-33 DIODE 1SS133T-77
D2014 8-719-991-33 DIODE 1SS133T-77
< IC >
IC2000 8-759-167-88 IC NJM4565D
< JACK >
J2000 1-820-056-11 JACK (SMALL TYPE) (AUTO CAL MIC)
< RESISTOR >
R2000 1-247-831-11 CARBON 1K 5% 1/4W
R2001 1-249-429-11 CARBON 10K 5% 1/4W
R2003 1-249-429-11 CARBON 10K 5% 1/4W
R2005 1-247-903-00 CARBON 1M 5% 1/4W
R2006 1-247-831-11 CARBON 1K 5% 1/4W
R2007 1-249-429-11 CARBON 10K 5% 1/4W
R2008 1-247-897-11 CARBON 560K 5% 1/4W
R2010 1-249-429-11 CARBON 10K 5% 1/4W
R2015 1-249-435-11 CARBON 33K 5% 1/4W
R2016 1-249-431-11 CARBON 15K 5% 1/4W
R2017 1-249-421-11 CARBON 2.2K 5% 1/4W
R2018 1-249-418-11 CARBON 1.2K 5% 1/4W
R2019 1-249-421-11 CARBON 2.2K 5% 1/4W
*************************************************************
A-1157-243-A DIGITAL BOARD, COMPLETE (DG500:US,CND)
A-1157-292-A DIGITAL BOARD, COMPLETE (AEP,UK)
A-1157-315-A DIGITAL BOARD, COMPLETE (AUS)
A-1157-326-A DIGITAL BOARD, COMPLETE (TW)
A-1157-345-A DIGITAL BOARD, COMPLETE (E2)
A-1157-425-A DIGITAL BOARD, COMPLETE (DG600)
A-1158-598-A DIGITAL BOARD, COMPLETE (KR)
***********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C1001 1-126-925-11 ELECT 470uF 20% 10V
C1002 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1004 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1005 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1021 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1022 1-126-925-11 ELECT 470uF 20% 10V
C1031 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1032 1-126-925-11 ELECT 470uF 20% 10V
C1045 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
(DG600)
C1046 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
(DG600)
C1047 1-104-662-11 ELECT 22uF 20% 25V
(DG600)
C1063 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
(AEP,UK)
C1064 1-126-947-11 ELECT 47uF 20% 35V
(AEP,UK)
C1100 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C1102 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
•Abbreviation
CND : Canadian model
E2 : 120 V AC area in E model
AUS: Australian model
KR : Korea model
TW : Taiwan model
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
AC SELECT ADCC DIGITAL
