Sony STR-DG500 - STANDBY Board; SB AMP Board (DG600)

13
STR-DG500/DG600

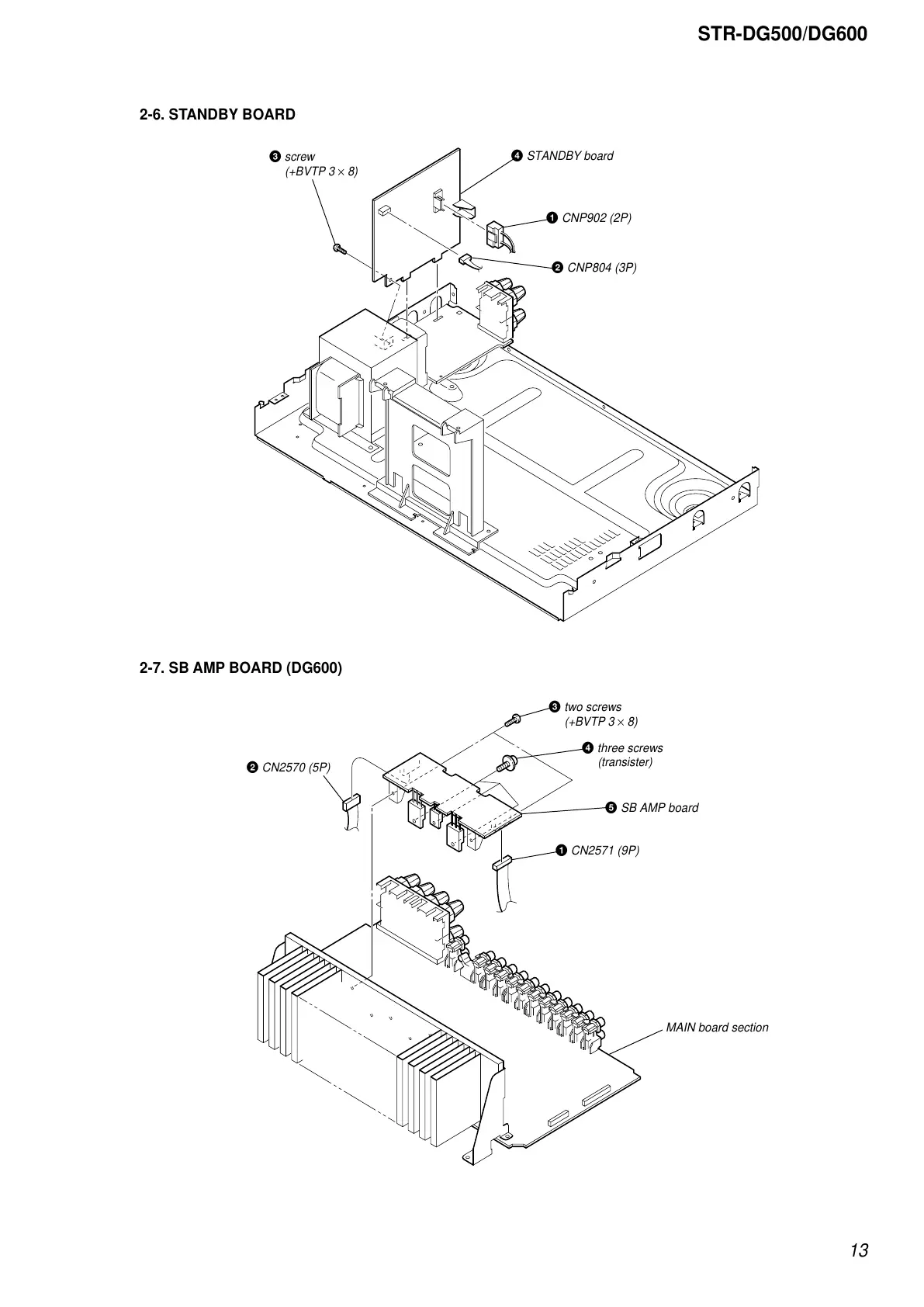

2-6. STANDBY BOARD
2-7. SB AMP BOARD (DG600)
3 screw
(+BVTP 3 × 8)
4 STANDBY board
1 CNP902 (2P)
2 CNP804 (3P)
3 two screws
(+BVTP 3 × 8)
4 three screws
(transister)
5 SB AMP board
MAIN board section
1 CN2571 (9P)
2 CN2570 (5P)
