14
STR-DG500/DG600

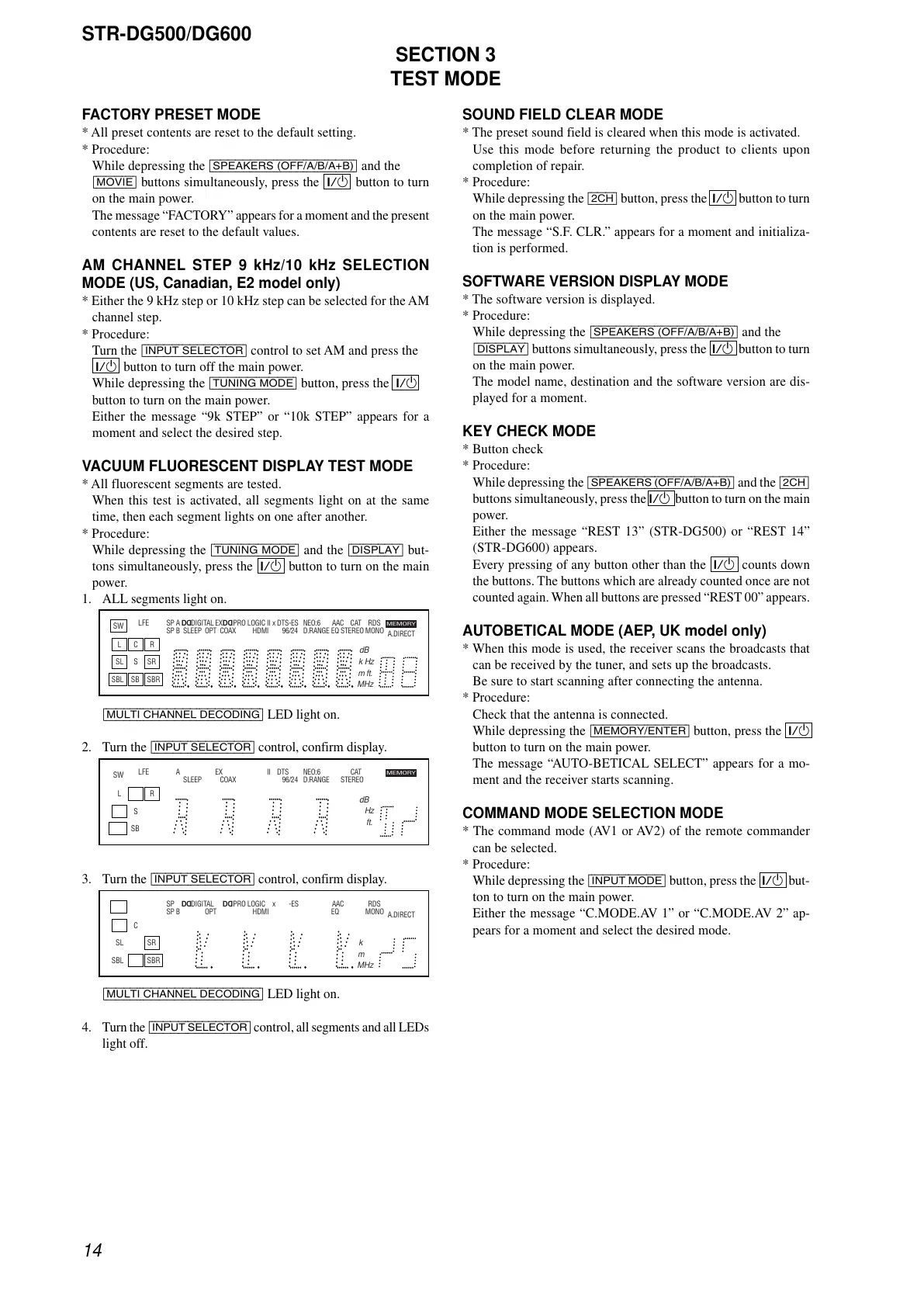

SECTION 3
TEST MODE
FACTORY PRESET MODE
* All preset contents are reset to the default setting.
* Procedure:
While depressing the [SPEAKERS $OFF/A/B/A+B%] and the
[MOVIE] buttons simultaneously, press the
?/1 button to turn
on the main power.
The message “FACTORY” appears for a moment and the present
contents are reset to the default values.
AM CHANNEL STEP 9 kHz/10 kHz SELECTION
MODE (US, Canadian, E2 model only)
* Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
* Procedure:
Turn the [INPUT SELECTOR] control to set AM and press the
?/1 button to turn off the main power.
While depressing the [TUNING MODE] button, press the ?/1
button to turn on the main power.
Either the message “9k STEP” or “10k STEP” appears for a
moment and select the desired step.
VACUUM FLUORESCENT DISPLAY TEST MODE
* All fluorescent segments are tested.
When this test is activated, all segments light on at the same
time, then each segment lights on one after another.
* Procedure:
While depressing the [TUNING MODE] and the [DISPLAY] but-
tons simultaneously, press the ?/1 button to turn on the main
power.
1. ALL segments light on.
[MULTI CHANNEL DECODING] LED light on.
2. Turn the [INPUT SELECTOR] control, confirm display.
3. Turn the [INPUT SELECTOR] control, confirm display.
[MULTI CHANNEL DECODING] LED light on.
4. Turn the [INPUT SELECTOR] control, all segments and all LEDs
light off.
SOUND FIELD CLEAR MODE
* The preset sound field is cleared when this mode is activated.
Use this mode before returning the product to clients upon
completion of repair.
* Procedure:
While depressing the [2CH] button, press the ?/1 button to turn
on the main power.
The message “S.F. CLR.” appears for a moment and initializa-
tion is performed.
SOFTWARE VERSION DISPLAY MODE
* The software version is displayed.
* Procedure:
While depressing the [SPEAKERS $OFF/A/B/A+B%] and the
[DISPLAY] buttons simultaneously, press the ?/1 button to turn
on the main power.
The model name, destination and the software version are dis-
played for a moment.
KEY CHECK MODE
* Button check
* Procedure:
While depressing the [SPEAKERS $OFF/A/B/A+B%] and the [2CH]
buttons simultaneously, press the ?/1 button to turn on the main
power.
Either the message “REST 13” (STR-DG500) or “REST 14”
(STR-DG600) appears.
Every pressing of any button other than the ?/1 counts down
the buttons. The buttons which are already counted once are not
counted again. When all buttons are pressed “REST 00” appears.
AUTOBETICAL MODE (AEP, UK model only)
* When this mode is used, the receiver scans the broadcasts that
can be received by the tuner, and sets up the broadcasts.
Be sure to start scanning after connecting the antenna.
* Procedure:
Check that the antenna is connected.
While depressing the [MEMORY/ENTER] button, press the ?/1
button to turn on the main power.
The message “AUTO-BETICAL SELECT” appears for a mo-
ment and the receiver starts scanning.
COMMAND MODE SELECTION MODE
* The command mode (AV1 or AV2) of the remote commander
can be selected.
* Procedure:
While depressing the [INPUT MODE] button, press the ?/1 but-
ton to turn on the main power.
Either the message “C.MODE.AV 1” or “C.MODE.AV 2” ap-
pears for a moment and select the desired mode.
L
SW
LFE
CR
SL S SR
SBL SB SBR
SP A
SP B SLEEP OPT COAX HDMI 96/24
DIGITAL EX PRO LOGIC II x DTS-ES NEO:6 AAC CAT RDS
D.RANGE EQ STEREO MONO
A.DIRECT
D
D
D
D
dB
k Hz
m ft.
MHz
MEMORY
L
SW
LFE
R
S
SB
A
SLEEP COAX 96/24
EX DTSII NEO:6 CAT
D.RANGE
STEREO
dB
Hz
ft.
MEMORY
C
SL SR
SBL SBR
SP
SP B OPT HDMI
DIGITAL xPRO LOGIC -ES AAC RDS
EQ MONO
A.DIRECT
D
D
D
D
k
m
MHz
