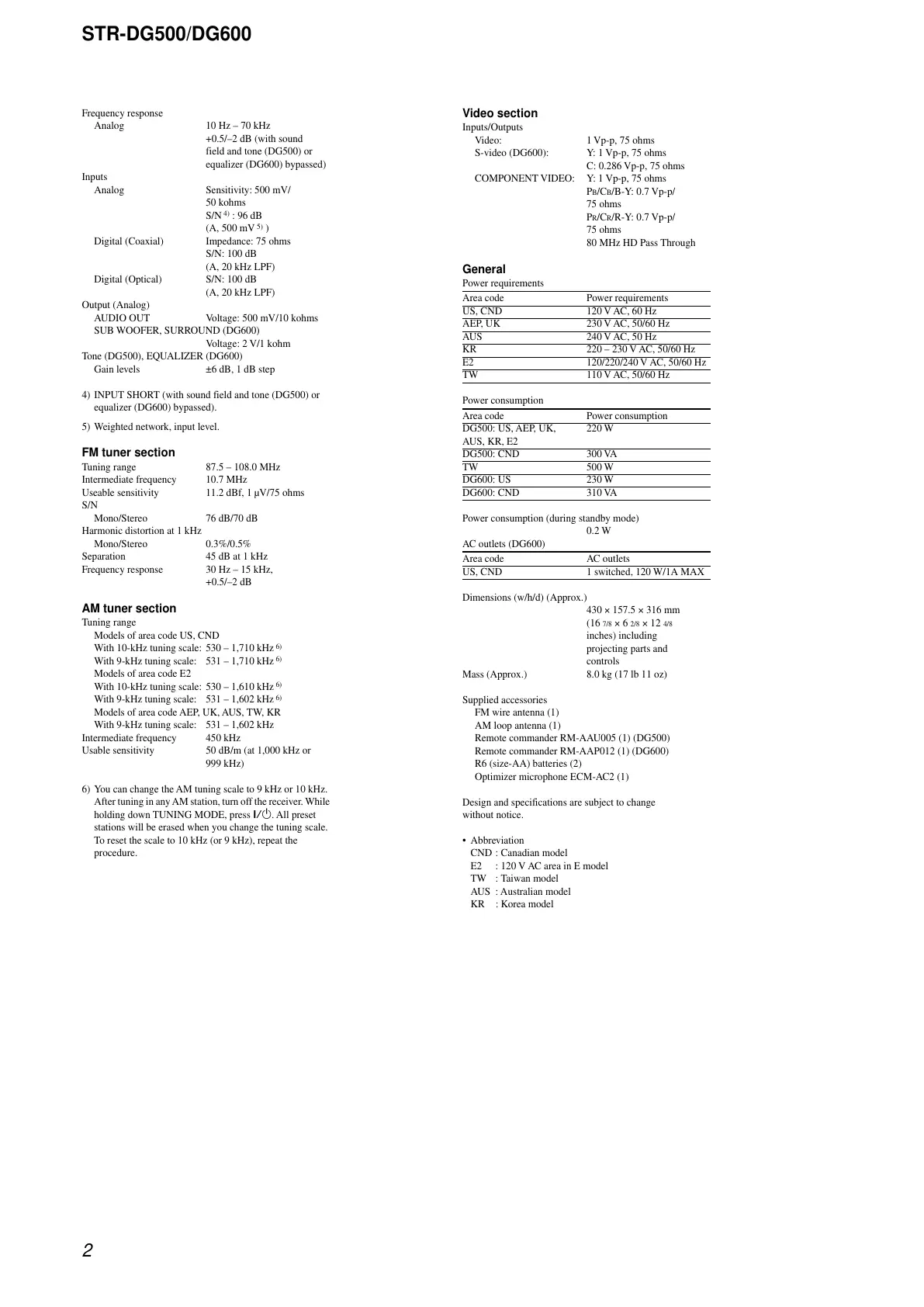

2
STR-DG500/DG600
Frequency response
Analog 10 Hz – 70 kHz
+0.5/–2 dB (with sound
field and tone (DG500) or
equalizer (DG600) bypassed)
Inputs
Analog Sensitivity: 500 mV/
50 kohms
S/N
4)
: 96 dB
(A, 500 mV
5)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (Analog)
AUDIO OUT Voltage: 500 mV/10 kohms
SUB WOOFER, SURROUND (DG600)
Voltage: 2 V/1 kohm
Tone (DG500), EQUALIZER (DG600)
Gain levels ±6 dB, 1 dB step
4) INPUT SHORT (with sound field and tone (DG500) or
equalizer (DG600) bypassed).
5) Weighted network, input level.
FM tuner section
Tuning range 87.5 – 108.0 MHz
Intermediate frequency 10.7 MHz
Useable sensitivity 11.2 dBf, 1 µV/75 ohms
S/N
Mono/Stereo 76 dB/70 dB
Harmonic distortion at 1 kHz
Mono/Stereo 0.3%/0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz – 15 kHz,
+0.5/–2 dB
AM tuner section
Tuning range
Models of area code US, CND
With 10-kHz tuning scale: 530 – 1,710 kHz
6)
With 9-kHz tuning scale: 531 – 1,710 kHz
6)
Models of area code E2
With 10-kHz tuning scale: 530 – 1,610 kHz
6)
With 9-kHz tuning scale: 531 – 1,602 kHz
6)
Models of area code AEP, UK, AUS, TW, KR
With 9-kHz tuning scale: 531 – 1,602 kHz
Intermediate frequency 450 kHz
Usable sensitivity 50 dB/m (at 1,000 kHz or
999 kHz)
6) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn off the receiver. While
holding down TUNING MODE, press ?/1. All preset
stations will be erased when you change the tuning scale.
To reset the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
S-video (DG600): Y: 1 Vp-p, 75 ohms
C: 0.286 Vp-p, 75 ohms
COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms
PB/CB/B-Y: 0.7 Vp-p/
75 ohms
PR/CR/R-Y: 0.7 Vp-p/
75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50/60 Hz
AUS 240 V AC, 50 Hz
KR 220 – 230 V AC, 50/60 Hz
E2 120/220/240 V AC, 50/60 Hz
TW 110 V AC, 50/60 Hz
Power consumption
Area code Power consumption
DG500: US, AEP, UK, 220 W
AUS, KR, E2
DG500: CND 300 VA
TW 500 W
DG600: US 230 W
DG600: CND 310 VA
Power consumption (during standby mode)
0.2 W
AC outlets (DG600)
Area code AC outlets
US, CND 1 switched, 120 W/1A MAX
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 316 mm
(16 7/8 × 6 2/8 × 12 4/8
inches) including
projecting parts and
controls
Mass (Approx.) 8.0 kg (17 lb 11 oz)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Remote commander RM-AAU005 (1) (DG500)
Remote commander RM-AAP012 (1) (DG600)
R6 (size-AA) batteries (2)
Optimizer microphone ECM-AC2 (1)
Design and specifications are subject to change
without notice.
•Abbreviation
CND : Canadian model
E2 : 120 V AC area in E model
TW : Taiwan model
AUS: Australian model
KR : Korea model
