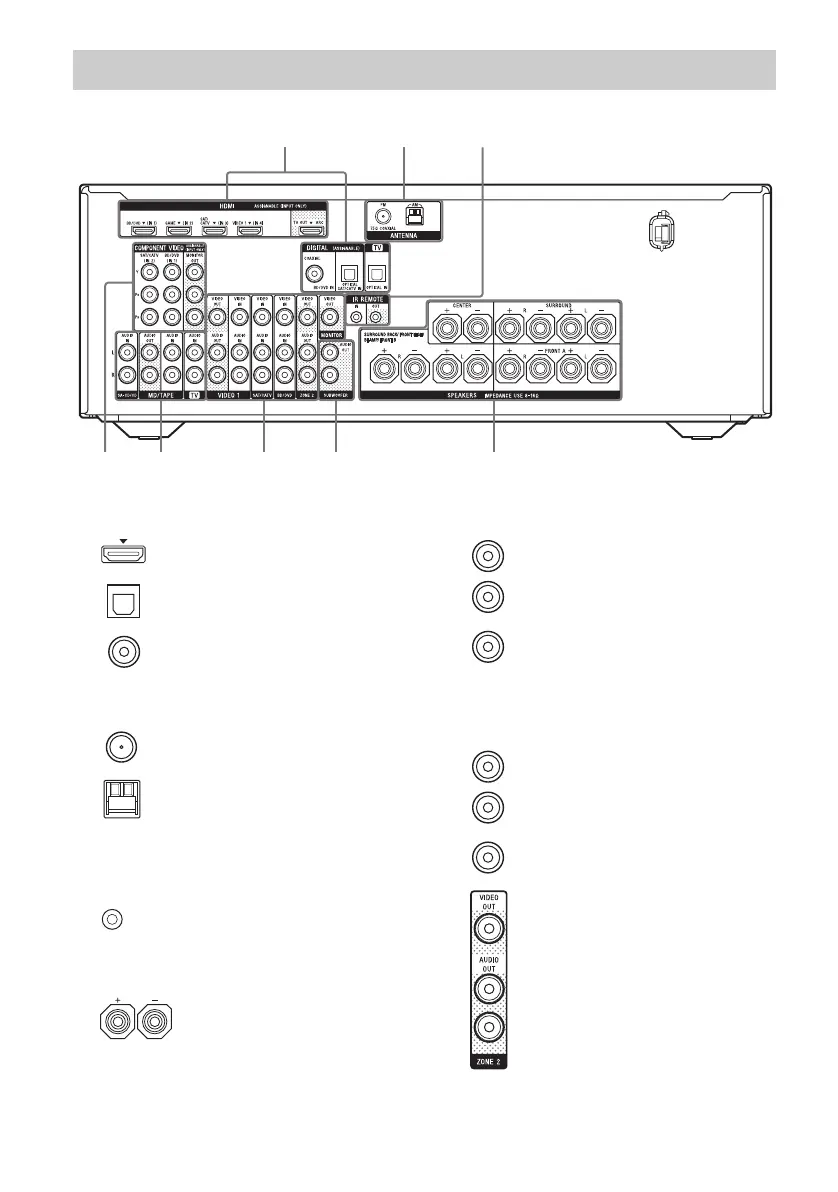

Rear panel
45657
1 2 3
A DIGITAL INPUT/OUTPUT section
HDMI IN/OUT* jacks (page 23,
27, 28, 29, 30)
OPTICAL IN jacks (page 23, 27,
28)
COAXIAL IN jack (page 27)
B ANTENNA section
FM ANTENNA jack (page 33)
AM ANTENNA terminals
(page 33)
C Controls jacks for Sony equipment
and other external equipment
IR REMOTE IN/OUT jacks
(page 66)
D SPEAKERS section (page 21)
E AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 23, 32)
AUDIO OUT jacks (page 21)
F VIDEO/AUDIO INPUT/OUTPUT
section (page 23, 27, 28, 30)
AUDIO IN/OUT jacks
VIDEO IN/OUT* jacks
AUDIO OUT jacks
VIDEO OUT jack (page 66)
White (L)
Red (R)
Black
White (L)
Red (R)
Yellow

Sony STR-DH820 Specifications

General

Display	LED
Sleep timer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
HDMI in	4
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Audio output channels	7.1 channels
Power output per channel (20-20KHz@8 Ohm)	105 W
Headphone connectivity	6.3 mm
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	FM
Preset stations quantity	60
Supported video modes	1080p
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Channels quantity	7 channels
Power requirements	230V 50/60Hz
