Sony STR-DH820 User Manual

19
GB
D:\NORM'S JOB\SONY HA\SO0129\STR-DH820_PMRF_01\4266497112_GB\GB04GET_STR-
DH820-CEL.fm
masterpage: Right
STR-DH820
4-266-497-11(2)
Connections
1: Installing the speakers
This receiver allows you to use a 7.2 channel
system (7 speakers and 2 subwoofers).

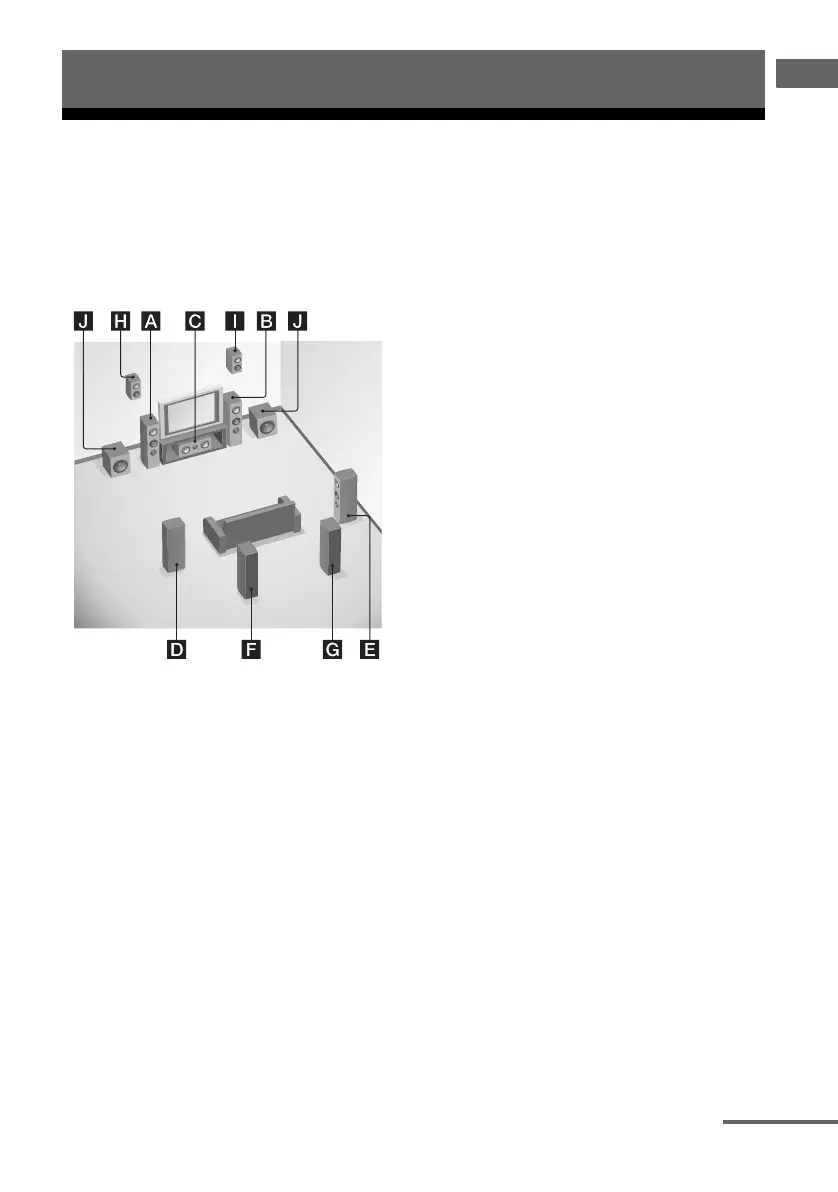

Example of speaker system
configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSurround back speaker (Left)*
GSurround back speaker (Right)*
HFront high speaker (Left)*
IFront high speaker (Right)*
JSubwoofer
* You cannot use the surround back speakers and the
front high speakers simultaneously.
5.1 channel speaker system
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.
7.1 channel speaker system
using surround back speakers
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded sound
in 6.1 channel or 7.1 channel format by
connecting additional one surround back
speaker (6.1 channel) or two surround back
speakers (7.1 channel).
7.1 channel speaker system
using front high speakers
You can enjoy vertical sound effects by
connecting additional two front high speakers
in PLIIz mode (page 55).
Connections
continued

Sony STR-DH820 Specifications

General

Display	LED
Sleep timer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
HDMI in	4
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Audio output channels	7.1 channels
Power output per channel (20-20KHz@8 Ohm)	105 W
Headphone connectivity	6.3 mm
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	FM
Preset stations quantity	60
Supported video modes	1080p
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Channels quantity	7 channels
Power requirements	230V 50/60Hz
