Getting started

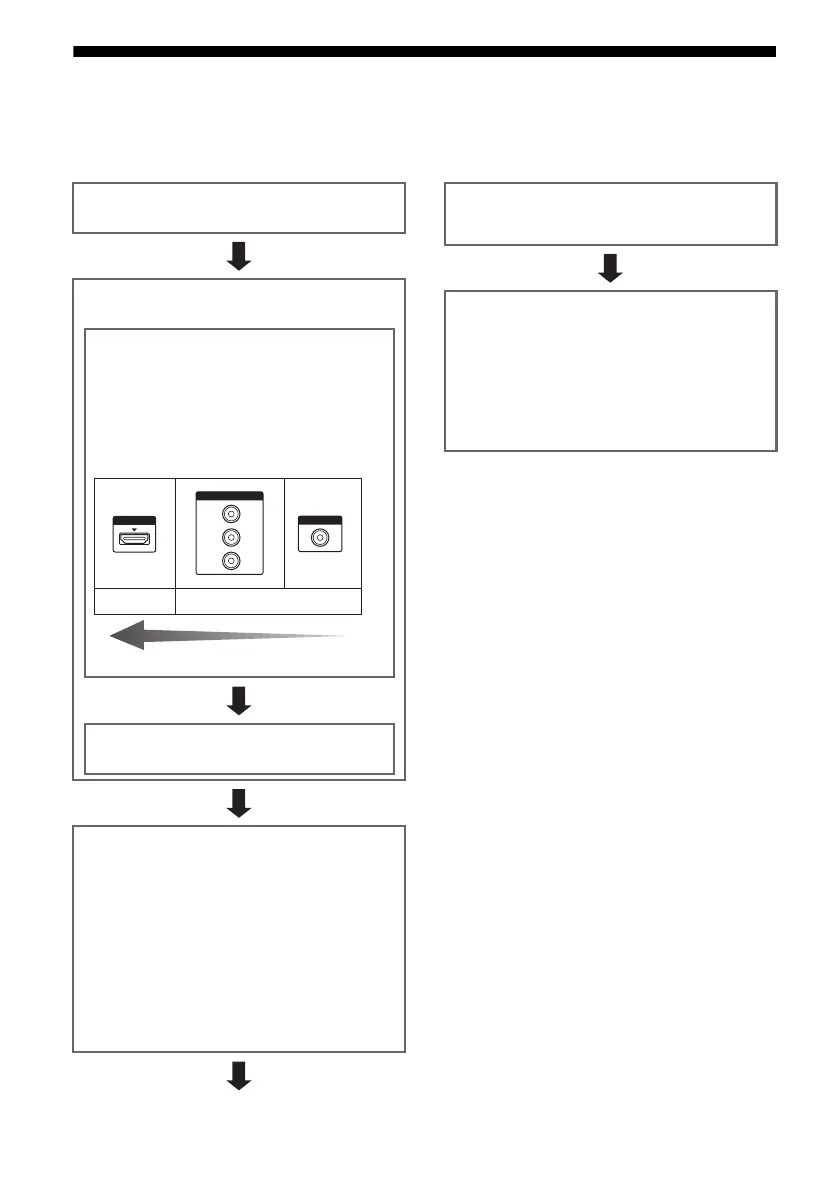

You can enjoy your audio/video equipment connected to the receiver by following the simple steps
below.
Installing and connecting the
speakers (page 19, 21)
Checking the connection
appropriate for your equipment
Connecting the TV and video
equipment (page 23, 24)
The image quality depends on the connecting jack.
See the illustration below. Select the connection
according to the jacks on your equipment.
We recommend that you connect your video
equipment via HDMI connection if they have HDMI
jacks.
Connecting the audio equipment
(page 32)
Setting the audio output settings on
the connected equipment
To output multi channel digital audio, check the digital
audio output setting on the connected equipment.
For a Blu-ray Disc player, check that “Audio (HDMI)”,
“Dolby Digital (Coaxial/Optical)”, and “DTS (Coaxial/
Optical)” are set to “Auto”, “Dolby Digital” and “DTS”
respectively (as of September 2010).
For a PlayStation 3, check that “BD/DVD Audio Output
Format (HDMI)” is set to “Bitstream” (with system
software version 3.5).
For details, refer to the operating instructions supplied
with the connected equipment.
HDMI
COMPONENT VIDEO
Y
P
B
/C
B
P
R
/C
R
VIDEO
Analog
High quality image
Digital
Preparing the receiver
See “6: Connecting the AC power cord (mains lead)”
(page 33) and “Initializing the receiver” (page 34).
Setting the speakers
Select the speaker pattern (page 34), then perform Auto
Calibration (page 36).
Note
You can check the speaker connection using “Test Tone”
(page 70). If the sound is not output correctly, check the
speaker connection and make the settings explained
above again.
