Connections
3: Connecting the TV

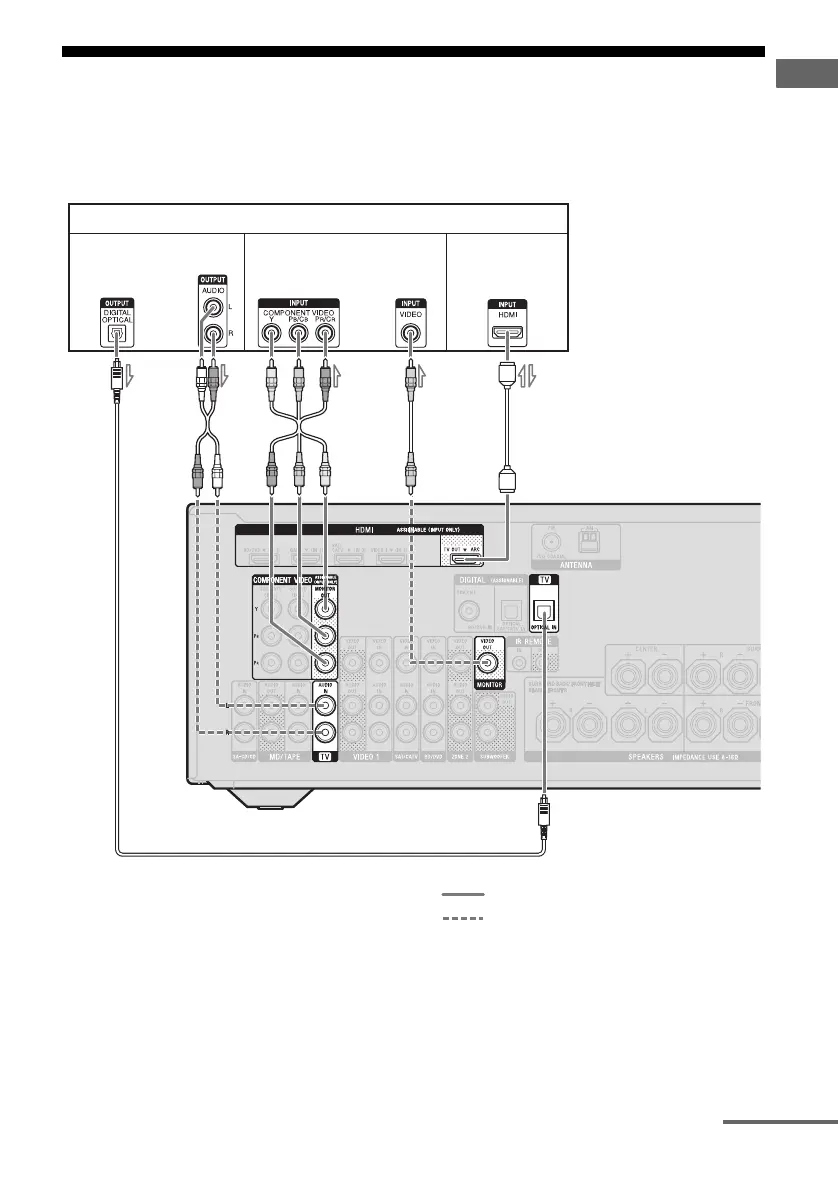

You can watch the selected input image when you connect the HDMI TV OUT or MONITOR OUT
jack to a TV. You can operate this receiver using a GUI (Graphical User Interface) if you connect
HDMI TV OUT jack to a TV.
ARC
TV
A
*
Audio signals Video signals Audio/video
signals
BC D E
***
or or
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
E HDMI cable (not supplied)
Sony recommends that you use an HDMI-
authorized cable or Sony HDMI cable.
Recommended connection
Alternative connection
continued

Sony STR-DH820 Specifications

General

Display	LED
Sleep timer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1)
HDMI in	4
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Audio output channels	7.1 channels
Power output per channel (20-20KHz@8 Ohm)	105 W
Headphone connectivity	6.3 mm
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	FM
Preset stations quantity	60
Supported video modes	1080p
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Channels quantity	7 channels
Power requirements	230V 50/60Hz
