STR-DN1010
2
1)
Measured under the following conditions:
2)
Reference power output for front, center,
surround, surround back and front high speakers.
Depending on the sound field settings and the
source, there may be no sound output.
Frequency response
Analog 10 Hz – 70 kHz,
+0.5 dB/–2 dB (with sound
field and equalizer
bypassed)
Area code Power requirements
US, CND 120 V AC, 60 Hz
UK, ECE, AUS 230 V AC, 50 Hz
Input
Analog Sensitivity: 500 mV/
50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (Analog)
AUDIO OUT Voltage: 500 mV/10 kohms
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±10 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer
bypassed).
4)
Weighted network, input level.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B/CB: 0.7 Vp-p, 75 ohms
P
R/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
HDMI Video
Input/Output (HDMI Repeater block)
640 × 480p@60 Hz
720 × 480p@59.94/60 Hz
1280 × 720p@59.94/60 Hz
1920 × 1080i@59.94/60 Hz
1920 × 1080p@59.94/60 Hz
720 × 576p@50 Hz
1280 × 720p@50 Hz
1920 × 1080i@50 Hz
1920 × 1080p@50 Hz
1920 × 1080p@24 Hz
HDMI Video (3D)
Input/Output (HDMI Repeater block)
1280 × 720p@59.94/60 Hz Frame packing
1920 × 1080i@59.94/60 Hz Frame packing
1920 × 1080i@59.94/60 Hz Side-by-Side (Half)
1920 × 1080p@59.94/60 Hz Side-by-Side (Half)
1280 × 720p@50 Hz Frame packing
1920 × 1080i@50 Hz Frame packing
1920 × 1080i@50 Hz Side-by-Side (Half)
1920 × 1080p@50 Hz Side-by-Side (Half)
1920 × 1080p@24 Hz Frame packing
AM tuner section
Tuning range
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency
450 kHz
Area code Tuning scale
10 kHz step 9 kHz step
UK, ECE, AUS – 531 kHz –
1,602 kHz
530 kHz –
US, CND
1,710 kHz
531 kHz –
1,710 kHz
General
Power requirements
Power output (DIGITAL MEDIA PORT)
DC OUT: 5V, 0.7A MAX
Power consumption
Area code Power requirements
US, CND 120 V AC, 60 Hz
Area code Power consumption
US, CND, UK
ECE, AUS
250 W
ECE, UK 230 V AC, 50/60 Hz
AUS 230 V AC, 50 Hz
Power consumption (during standby mode)
0.9 W (When “Ctrl for
HDMI” and “S-AIR Stby”
are set to “OFF”)
Dimensions (width/height/depth) (Approx.)
17 in × 6 1/4 in × 12 7/8 in
(430 mm × 157.5 mm ×
324.5 mm) including
controls
projecting parts and
Mass (Approx.) 18 lb 16 oz (8.6 kg)

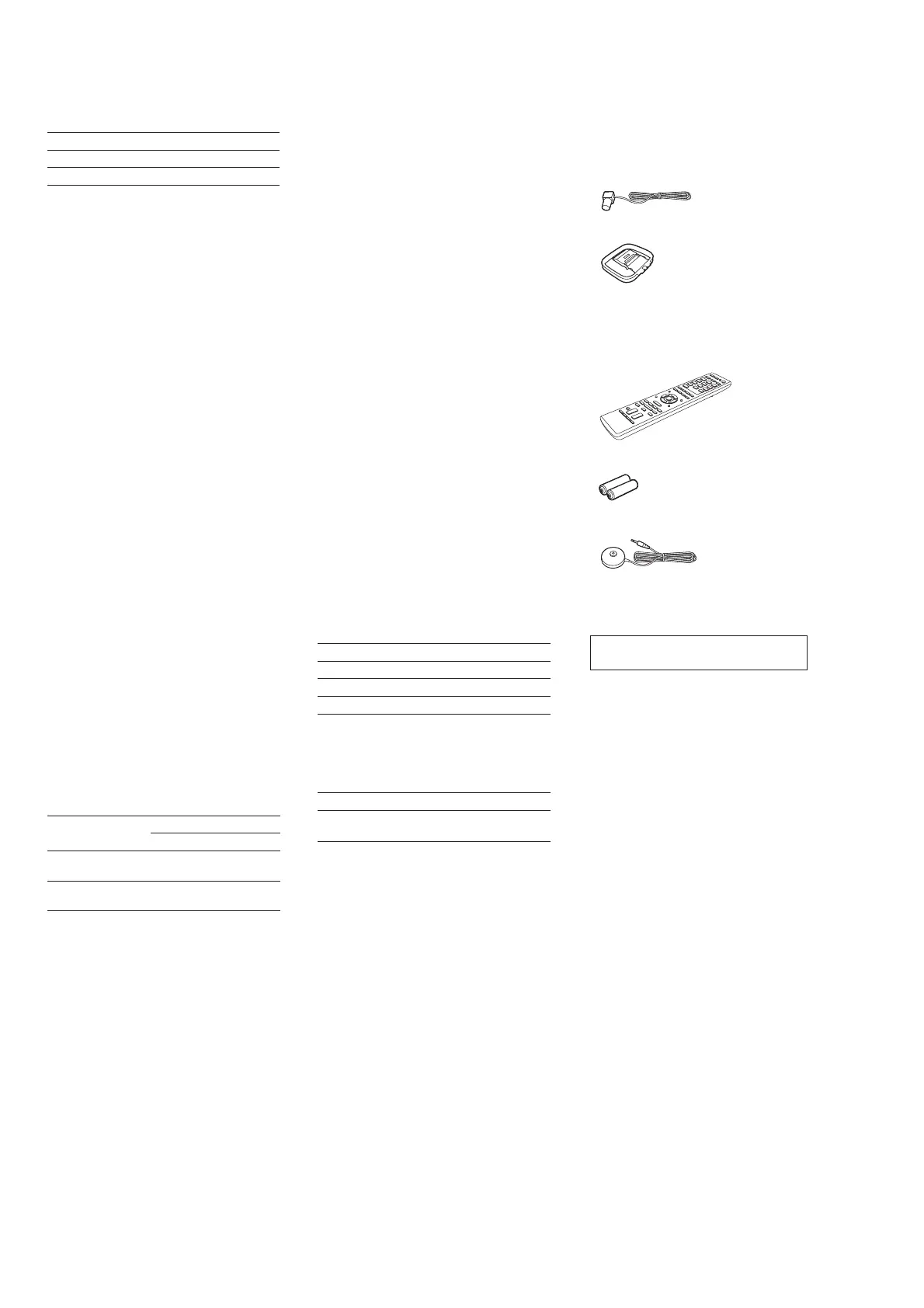

Supplied accessories
Design and specifications are subject to
change without notice.
AUS : Australian model
CND : Canadian model
ECE : Continental European, East European
and Russian models
FM tuner section
Tuning range 87.5 MHz – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohm
s, unbalanced
Intermediate frequency
10.7 MHz
Halogenated flame retardants are not used in
the certain printed wiring boards.
s Operating Instructions
s Quick Setup Guide
s GUI Menu List
s FM wire antenna (aerial) (1)
s AM loop antenna (aerial) (1)
s Remote commander (1)
– RM-AAP051 (Models of area code US,
CND only)
– RM-AAP052 (Models of area code ECE,
UK, AUS only)
s R6 (size-AA) batteries (2)
s Optimizer microphone (ECM-AC2) (1)
s Abbrevation
