75
STR-DN1010
SECTION 6
EXPLODED VIEWS
1 3-381-709-21 CUSHION, SARANET
2 2-580-630-01 SCREW, +BVST 4X8
3 3-906-887-11 SCREW (+BTP) (DIA. 3) (BZN-N)
4 4-160-845-51 CASE
5 A-1755-476-A STANDBY DCDC BOARD, COMPLETE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European,
East European and Russian mod
els

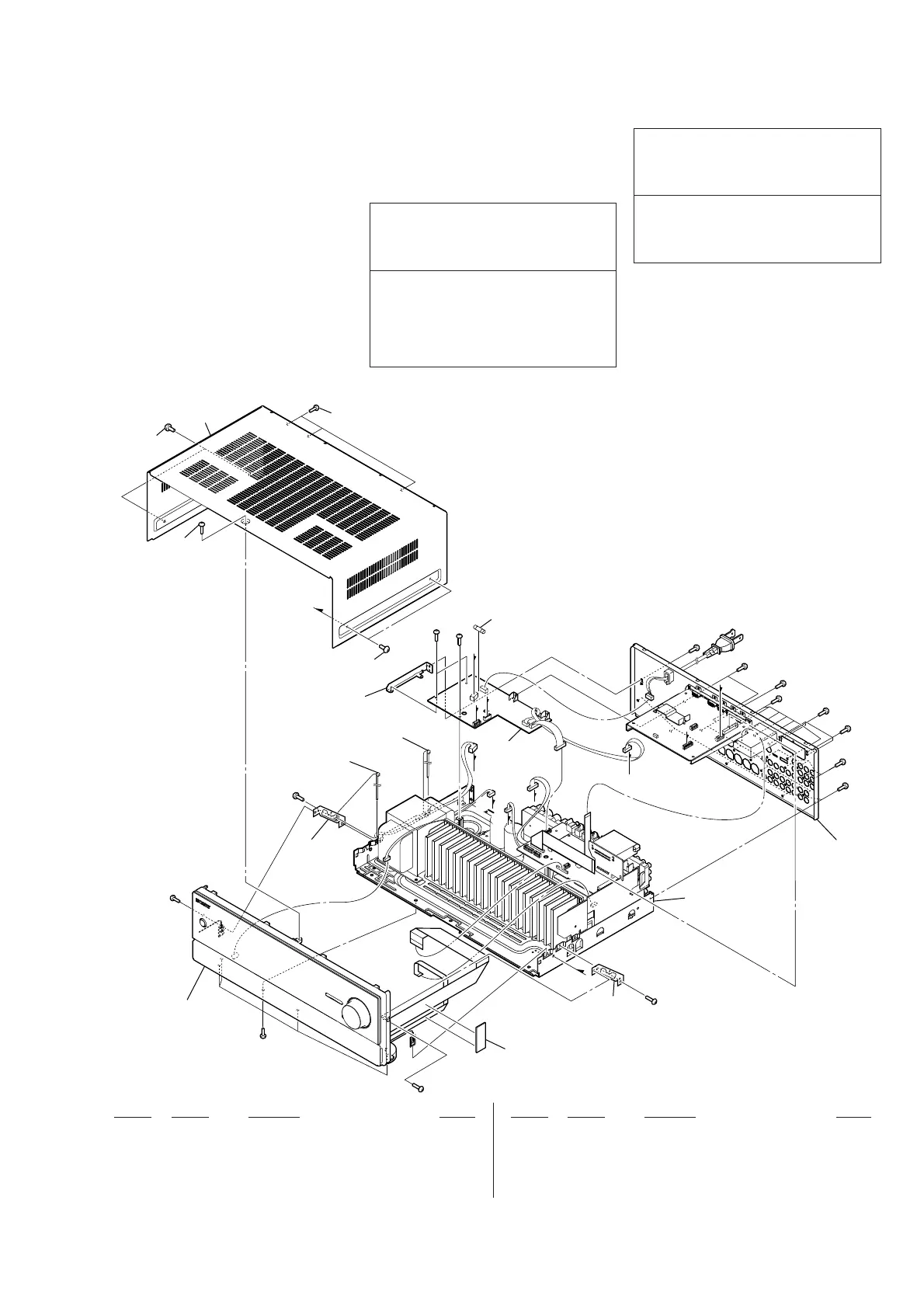

6-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
0 F900 1-532-465-33 FUSE, T3.15AL 250V (UK, AUS, ECE)
0 F900 1-533-311-12 FUSE, GLASS (DIA.5) 8A 125V (US, CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6(S)
#1
#1
#1
#1
#1
#1
#1
#2
#1
#1
#1
#1
1
2
2
3
4
3
5
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
not
supplied
A
B
C
E
E
D
C
B
A
D
F900
front panel section
chassis section
back panel
section
To Next Page
