Sony STR-DN1010 Service Manual

STR-DN1010
7

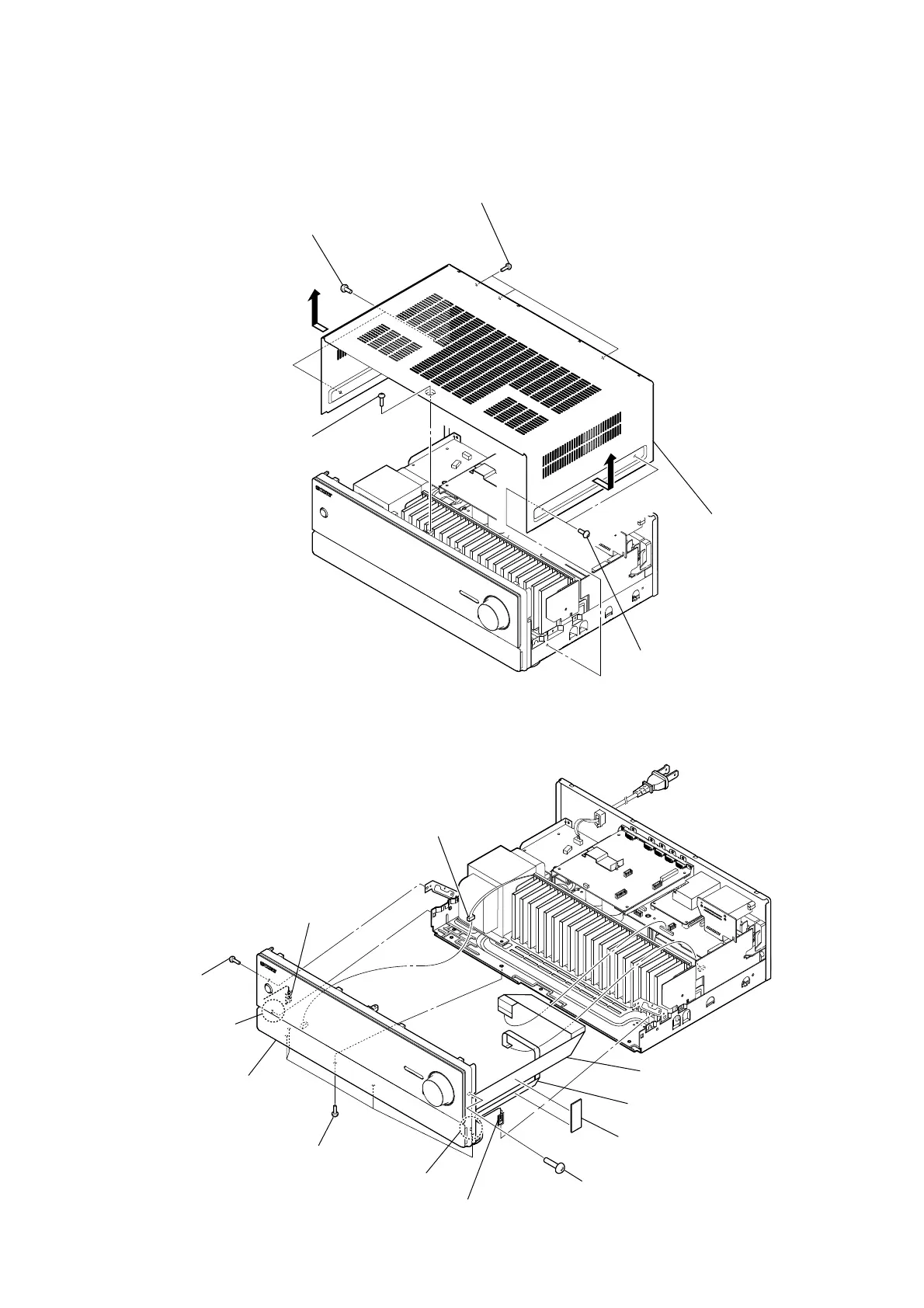

2-3. FRONT PANEL BLOCK
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
2 three screws
((+BTP) (DIA. 3) (BZN-N))
2 screw
((+BTP) (DIA. 3) (BZN-N))
3
3
1 two screws
(+BVST 4 u 8)
4 case
1 two screws
(+BVST 4 u 8)
4 CNP300 (4P)
1 wire (flat type) (23 core) (CN2012)
2 wire (flat type) (9 core) (CN805)
3 saranet cushion
5 lead (with connector)
5 lead (with connector)
6 one screw
(+BVTP 3 u 8)
8 claw
8 claw
9 front panel block
7 five screws
(+BVTP 3 u 8)
6 one screw
(+BVTP 3 u 8)

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
