Sony STR-DN1010 Service Manual

76
STR-DN1010

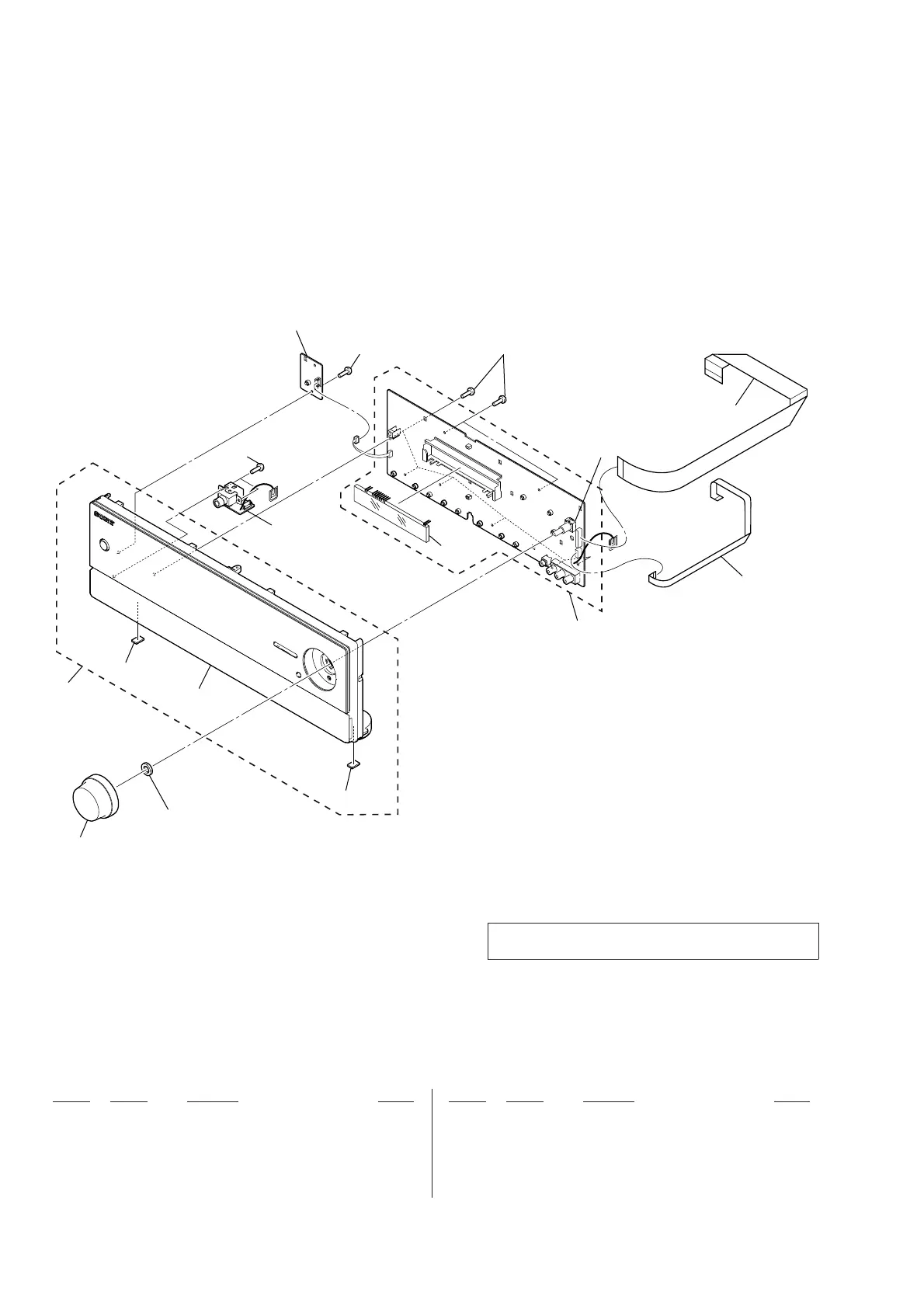

6-2. FRONT PANEL SECTION
51 4-135-120-01 KNOB, VOLUME
52 X-2546-030-1 FRONT PANEL ASSY (US, CND)
52 X-2546-033-1 FRONT PANEL ASSY (UK, AUS, ECE)
53 4-977-358-01 CUSHION
54 3-087-053-01 +BVTP2.6 (3CR)
55 1-828-384-11 WIRE (FLAT TYPE) (23 CORE)
56 1-828-312-51 WIRE (FLAT TYPE) (9 CORE)
57 A-1755-474-A DISPLAY BOARD, COMPLETE
ND101 1-483-118-11 VACUUM FLOURESCENT DISPLAY
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
not supplied
(POWER KEY board)
ND101
not
supplied
supplied with RV102
not supplied
(HEADPHONE board)
RV102
54
54
54
53
52
51
53
57
56
55

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
