Sony STR-DN1010 Service Manual

STR-DN1010
9

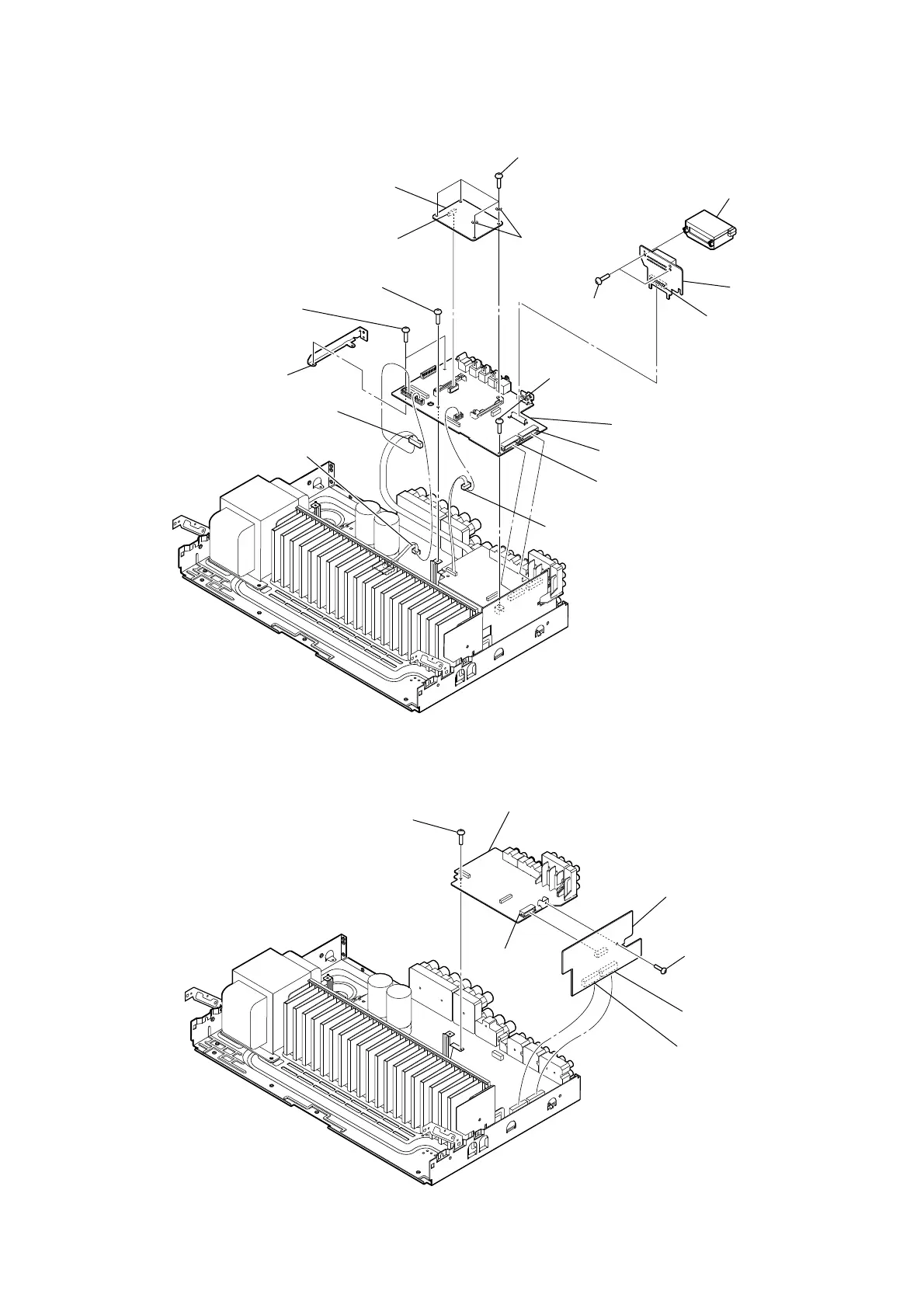

2-7 VIDEO BOARD
2-6. DIGITAL BOARD
3 one screw
(+BVTP 3 u8)
5 VIDEO board
6 CONNECTION board
1 one screw
(+BVTP 3 u8)
2 CN804 (18P)
2 CN803 (18P)
4 CN6202
(14P)
4 CN2010 (20P)
4 CN2011 (20P)
9 DIGITAL board
qh SAIR board
qj SAIR holder
qf CN861 (20P)
7 two screws
(+BVTP 3 u8)
5 one screw
(+BVTP 3 u8)
6 one screw
(+BVTP 3 u8)
qs CN5001 (50P)
qa four screws
(+BVTP 2.6 (3CR))
0 washer,
valcanized fiber
qg two screws
(+BVTP 3 u8)
1 CN2008 (7P)
2 CN2014 (4P)
3 CN2016 (3P)
qd DSP board
8 bracket, HDMI,
right

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
