Sony STR-DN1010 Service Manual

STR-DN1010
8

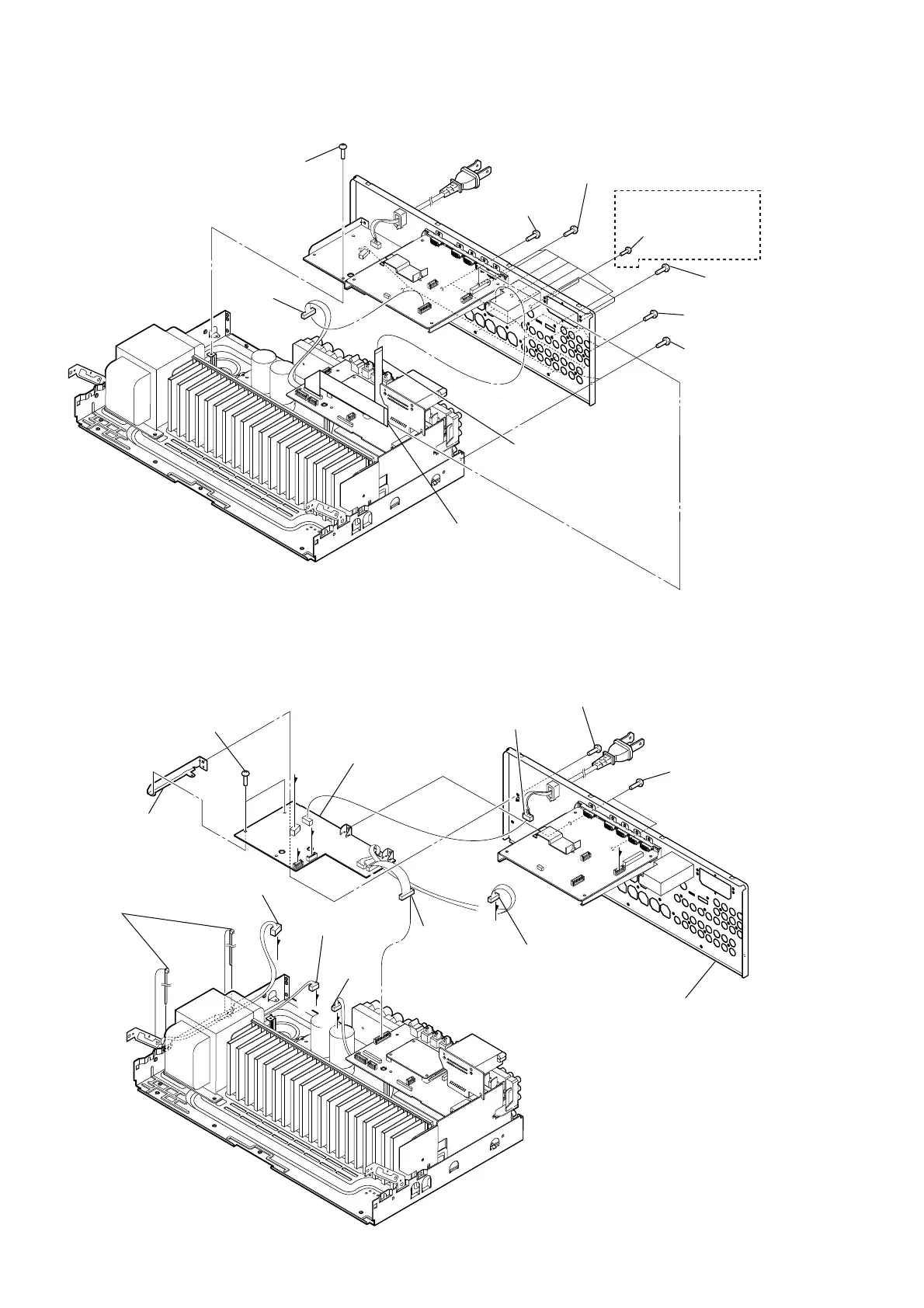

2-5. STANDBY DCDC BOARD
2-4. BACK PANEL BLOCK
1 wire (flat type) (11 core)
(CN2002) (UK, AUS, ECE)
wire (flat type) (9 core)
(CN2003) (US, CND)
2 wire (flat type)
(27 core)(CN3512)
3 CN3200
(8P)
9 four screws
(+BVTP 3 u8)
4 five screws
(+BVTP 3 u8)
5 five screws
(+BVTP 3 u8)
6 eight screws
(+BVTP 3 u8)
7 six screws
(+BVTP 3 u8)
8 one screw
(+BVTT 3 u6(S))
0 one screw
(+BVTP 3 u8)
(For US and Canadian
models only)
6 CNP901
(2P)
3 CN905
(5P)
1 CN2000
(11P)
7 CNP906 (3P)
0 two screws
(+BVTP 3 u8)
qa bracket, HDMI,
right
4 CNP907
(4P)
C
C
D
B
D
B
A
A
2 CN3510
(5P)
8 two screws
(+BVTP 3 u8)
9 one screw
(+BVTP 3 u8)
qs STANDBY DCDC board
qd back panel block
5 cut the cable tie

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
