Sony STR-DN1010 Service Manual

79
STR-DN1010

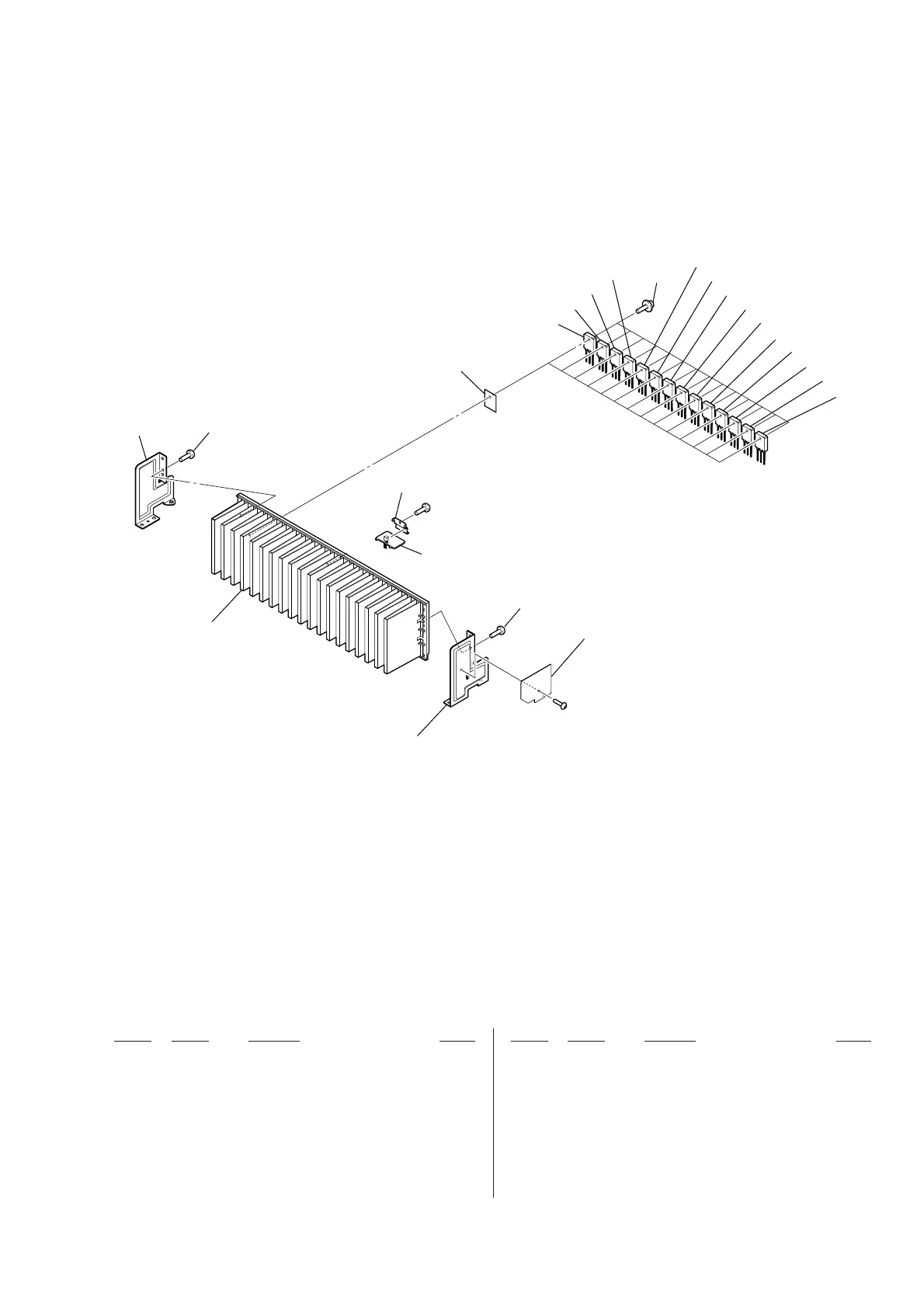

6-5. HEATSINK SECTION
201 3-905-609-32 SCREW (TRANSISTOR)
IC604 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC605 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC606 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC607 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC608 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC609 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC610 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC611 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC612 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC613 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC614 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC615 6-702-391-01 TRANSISTOR MP1620-OPY-MK
IC616 6-702-390-01 TRANSISTOR MN2488-OPY-MK
IC617 6-702-391-01 TRANSISTOR MP1620-OPY-MK
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
supplied with
IC604  IC617
IC617
IC614
IC616
IC611
IC610
IC607
IC606
IC613
IC612
IC609
IC608
IC605
IC604
IC615
201
not supplied
(INSULATOR board)
#1
not supplied
not supplied
not supplied
(THERMAL SENSOR board)
#1
#1
#1

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
