Sony STR-DN1010 Service Manual

78
STR-DN1010
T901
C
E
not supplied
#1
#1
#1
158
not supplied
(CONNECTION board)
159
#1
#1
#1
not
supplied
151
not supplied
151
152
152
heatsink section
#1
#1
#1
B
B
A
A
E
#1
#1
#1
157
156
155
not supplied
(SAIR board)
not supplied
not supplied
not supplied
(SAIR holder)
153
154
160
not supplied
#1
C
D
D
F
F

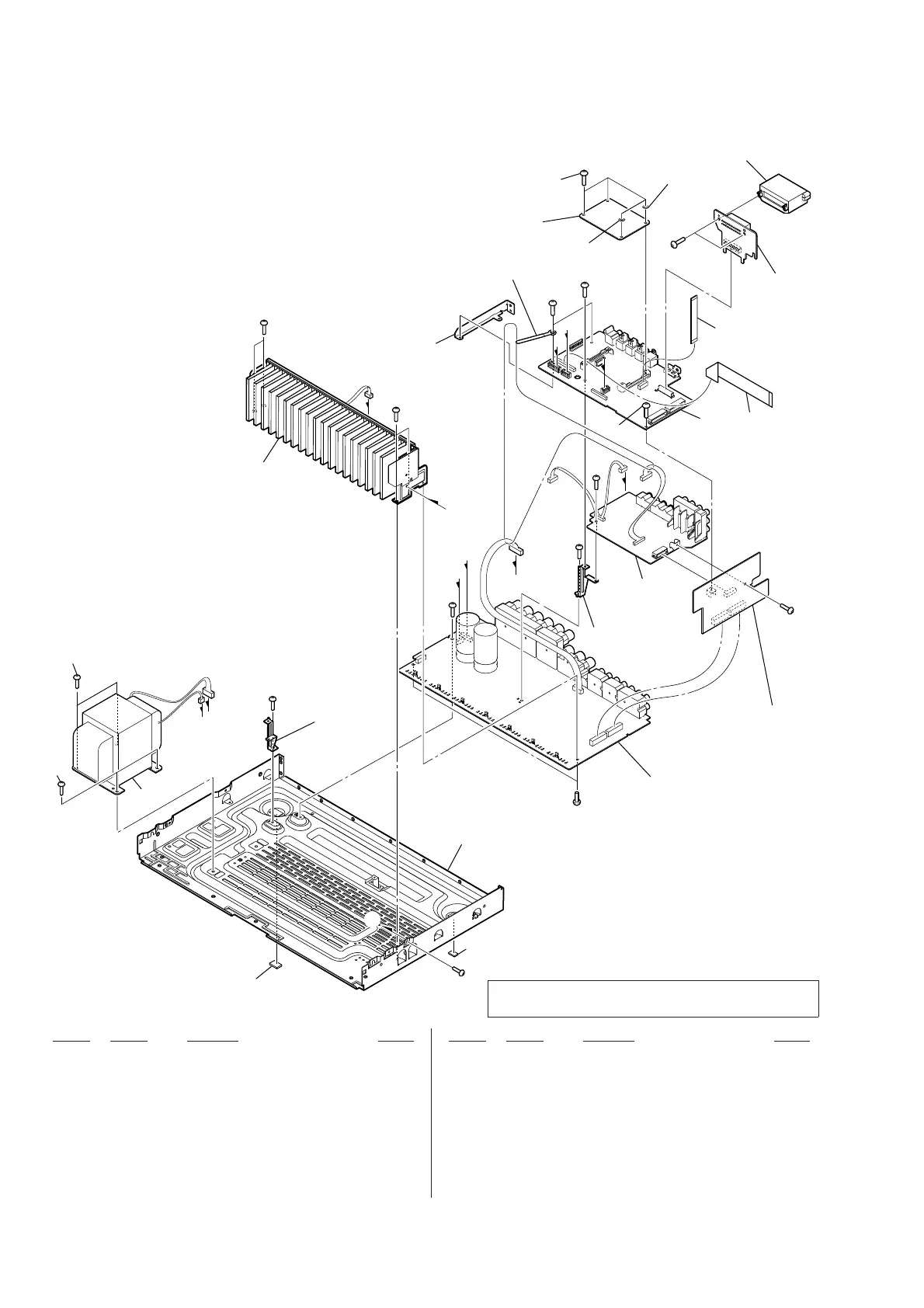

6-4. CHASSIS SECTION
151 4-977-358-01 CUSHION
152 4-249-675-01 +BV SUMITITE S 4X6 ROUND
153 3-087-053-01 +BVTP2.6 (3CR)
154 A-1767-379-A DSP BOARD, COMPLETE
155 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (US, CND)
155 1-828-964-11 WIRE (FLAT TYPE) (11 CORE) (UK, AUS, ECE)
156 1-828-660-11 WIRE (FLAT TYPE) (27 CORE)
157 A-1755-471-A DIGITAL BOARD, COMPLETE (US, CND)
157 A-1755-501-A DIGITAL BOARD, COMPLETE (UK, AUS, ECE)
158 A-1755-478-A VIDEO BOARD, COMPLETE
159 A-1755-465-A MAIN BOARD, COMPLETE (US, CND)
159 A-1755-500-A MAIN BOARD, COMPLETE (UK, AUS, ECE)
160 3-703-150-11 CLAMP
0 T901 1-445-652-21 POWER TRANSFORMER (MAIN) (UK, AUS, ECE)
0 T901 1-445-797-11 POWER TRANSFORMER (MAIN) (US)
0 T901 1-445-824-11 POWER TRANSFORMER (MAIN) (CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
