1-6
VPL-VW70

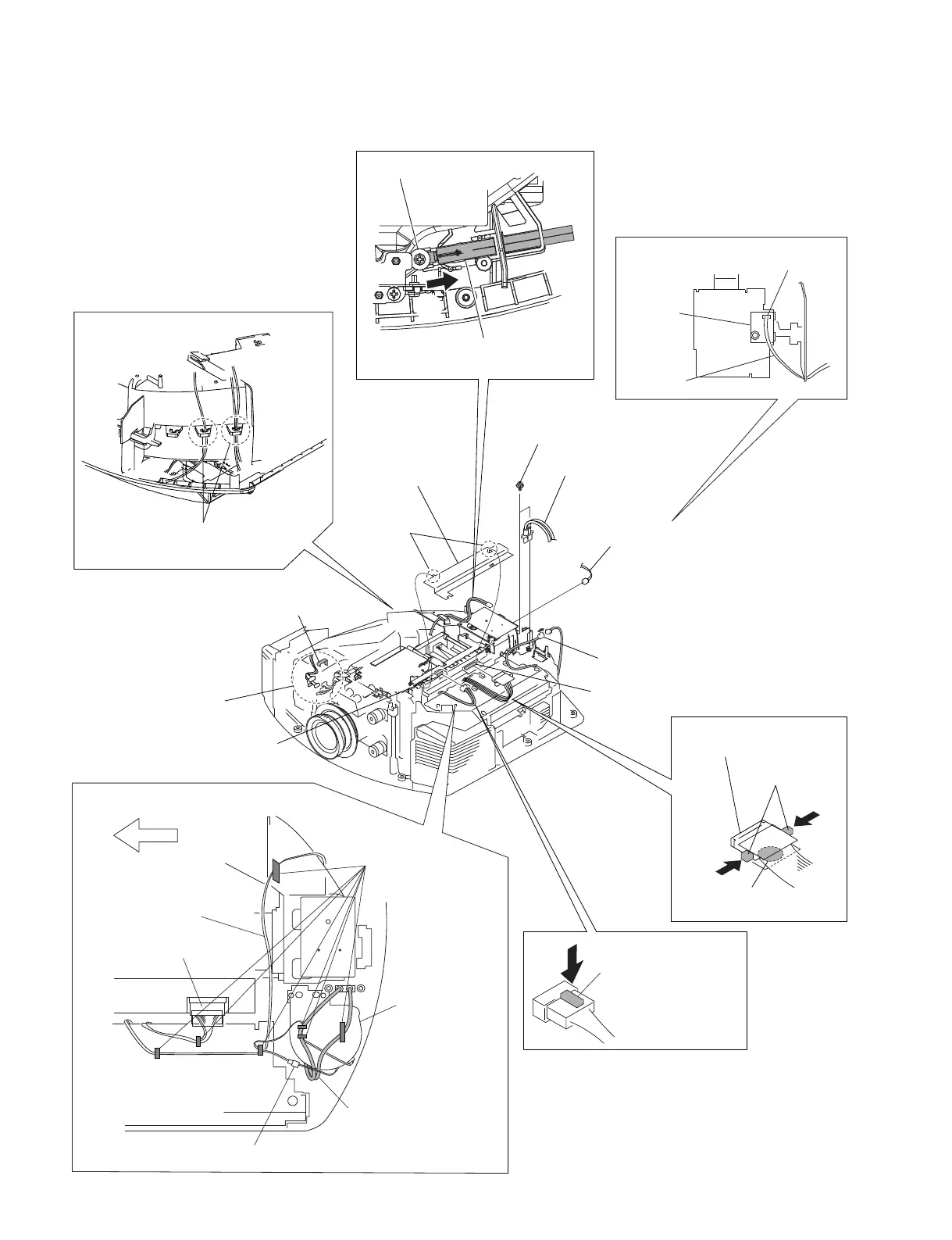

1-3-5. Optical Block Assembly-1
!= Remove it while
pressing the claw
of the connector.
D.C. fan
(Sirocco)
Fan connector
Claw
Front Side
of Unit
6 Two screws
(+BVWHTP 3 x 12)
!\
Remove harnesses from
claws of the fan duct.
5 Three harnesses
1 Duct sheet (C)
!] Three connectors
![
Remove harnesses
from the
seven claws.
8 Harness
2 Two claws
7 Lamp power
connector assembly
9 Fan connector
!-
Press the
two claws.
4 Remove the fuse connector assembly
in the direction of the arrow
A .
CB board
CN2001
CA board
CN1501
3 Loosen screw.
Marking is printed
on the bottom.
0 Lead with connector
(LVDS)
A
TL board
CN70
Harness
Lamp power
connector assembly
Fuse connector
assembly
Lead with connector
(LVDS)
Rear Side
of Unit
