1-2
VPL-VW70

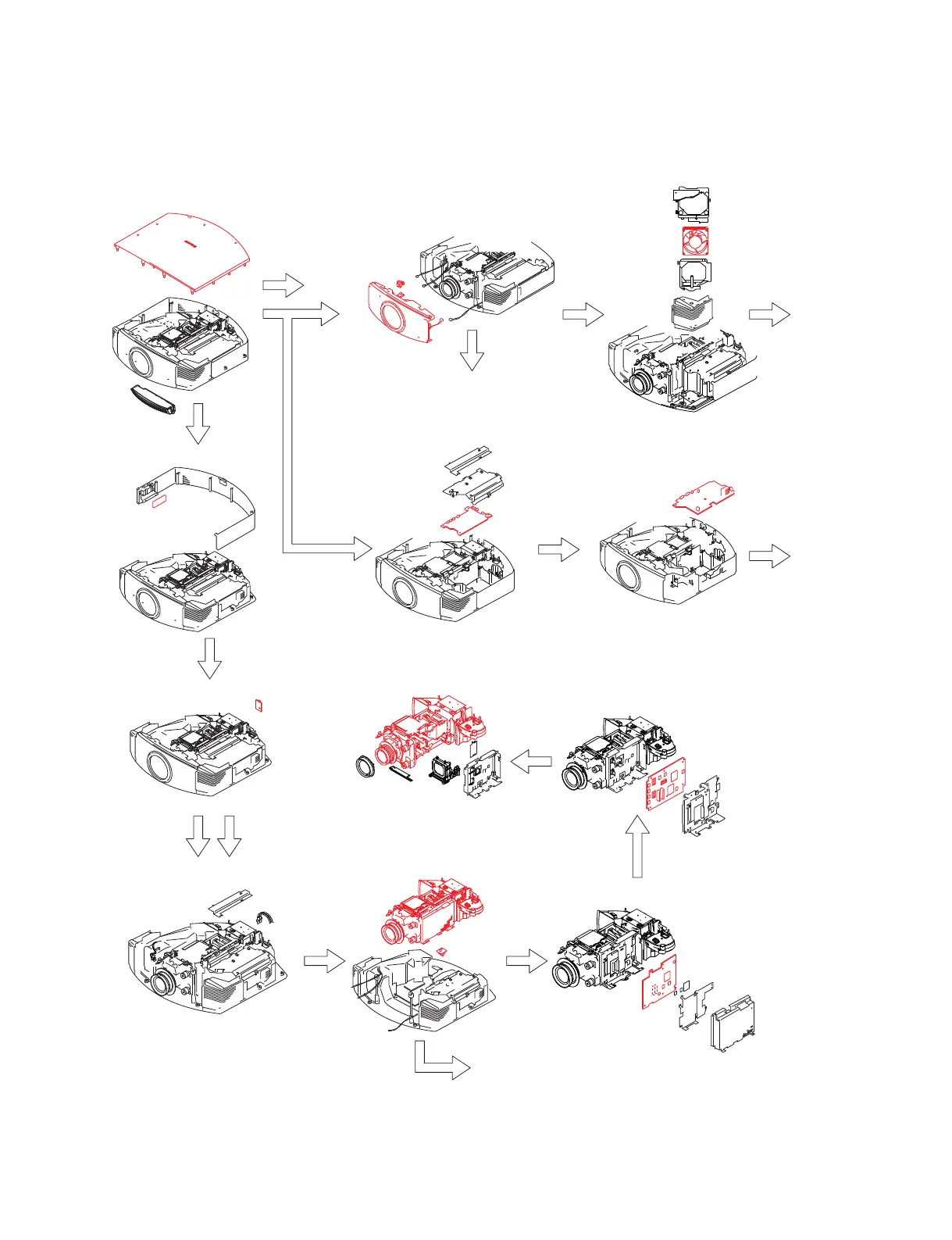

1-3. Disassembly
1-3-1. Top Cover Assembly
1-3-4. Front Panel Block
1-3-2. HA Board
1-3-3. TL Board
1-3-5. Optical Block Assembly-1
1-3-6. Optical Block Assembly-2
and U Board
1-3-7. CB Board
1-3-8. CA Board
1-3-10. GA Board
1-3-11. GB Board
1-3-12. D.C. Fan
1-3-9. Optical Unit Assembly
A
D
D
C
B
E
