VPL-VW70

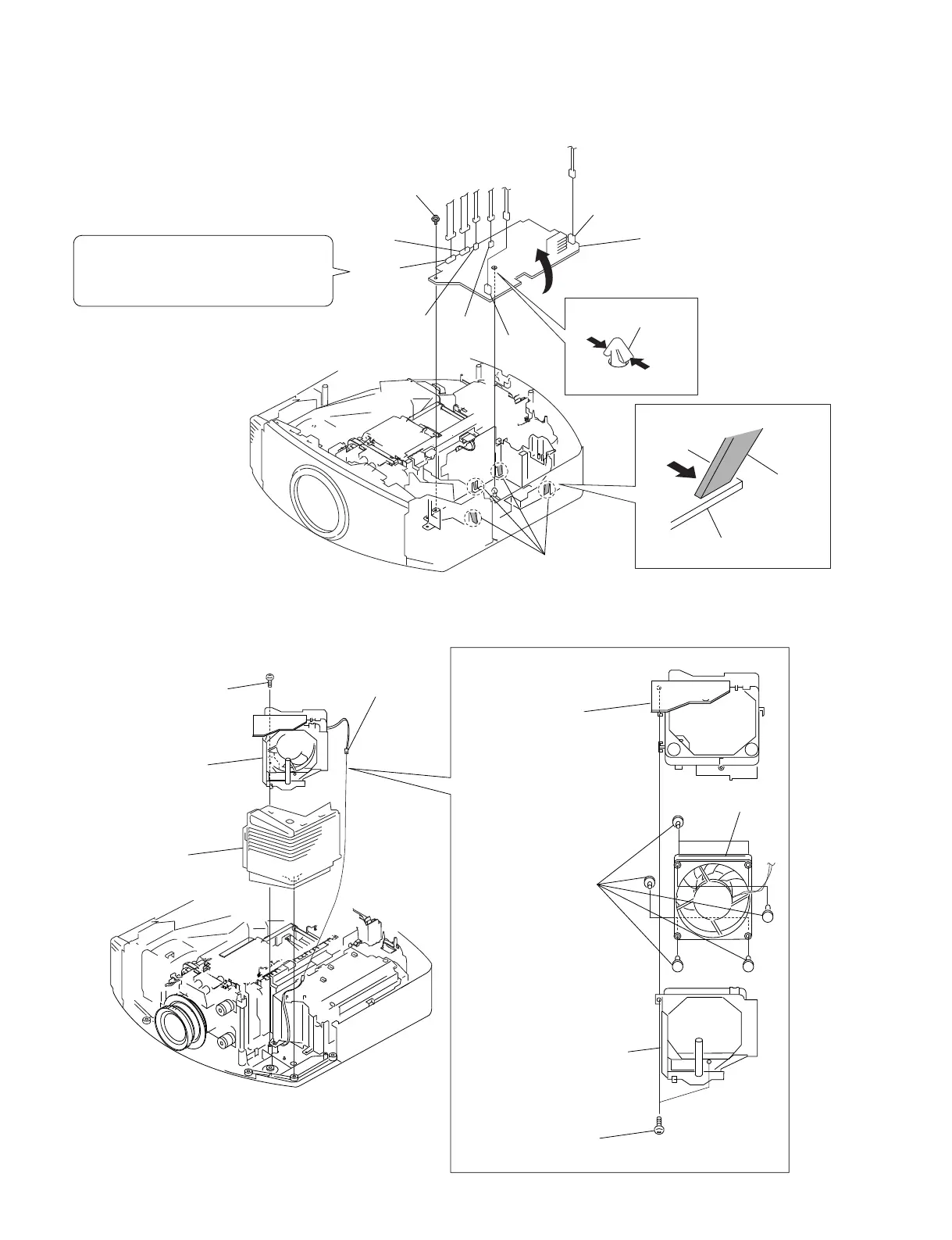

1-3-11. GB Board
1-3-12. D.C. Fan
When extending the C board, remove the
connector CN301, and extend the board
using the N SH connector assembly.
(Refer to page 1-18.)
Claw
2 Four claws
1 Screw
(+PSW 3 x 8)
4 Remove the GB board in the
direction of the arrow
A .
3 Spacer c law
CN201
CN202
CN304
CN301
CN303
CN200
GB board
A
2 Screw
(+BVTP 3 x 12)
5 Two screws
(+BVTP 3 x 12)
3 Louver (R)
1
Fan connector
4 D.C. fan block
9 D.C. fan
6 Chassis fan
duct (OUT)
7 Lamp fan duct (ATT)
8 Eight fan dampers
