Sony VPL-VW70 User Manual

1-5
VPL-VW70

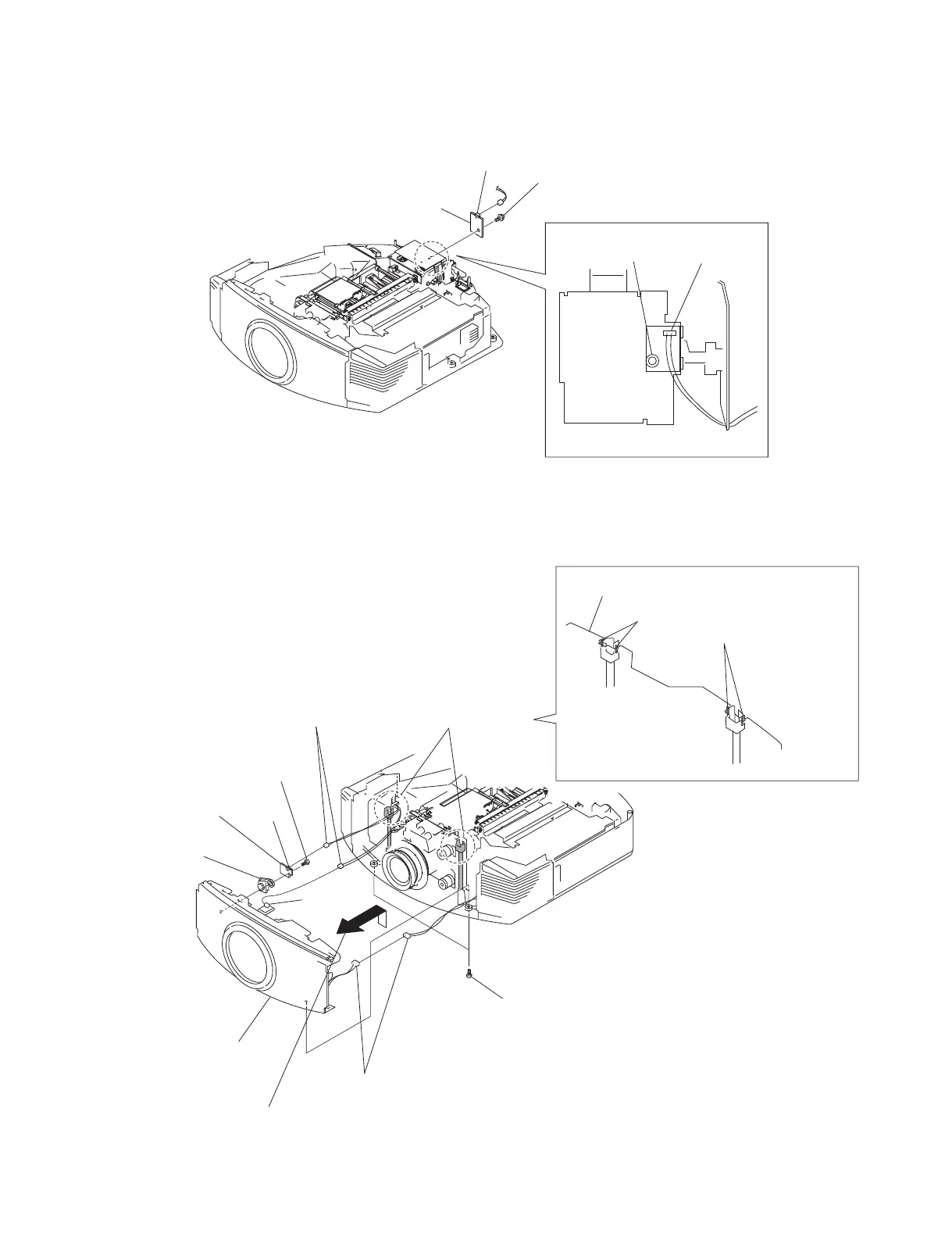

1-3-3. TL Board
1-3-4. Front Panel Block
1 Screw
(+PSW 3 x 8)
2 TL board
CN70
TL board
CN70
Rear Side of Unit
Screw
(+PSW 3 x 8)
6 Screw
(+BVTP 3 x 12)
1 Two screws
(+BVTP 3 x 12)
7 NF board
9 Front panel block
3 Remove the front panel block
in the direction of the arrow.
4 Connector
5 Two connectors
Two adjuster bosses
Front panel block
8 NF lens
CN40
HB board
CN80
2 Setting position of the two adjuster
bosses at four locations.
