Sony VPL-VW70 User Manual

1-11
VPL-VW70

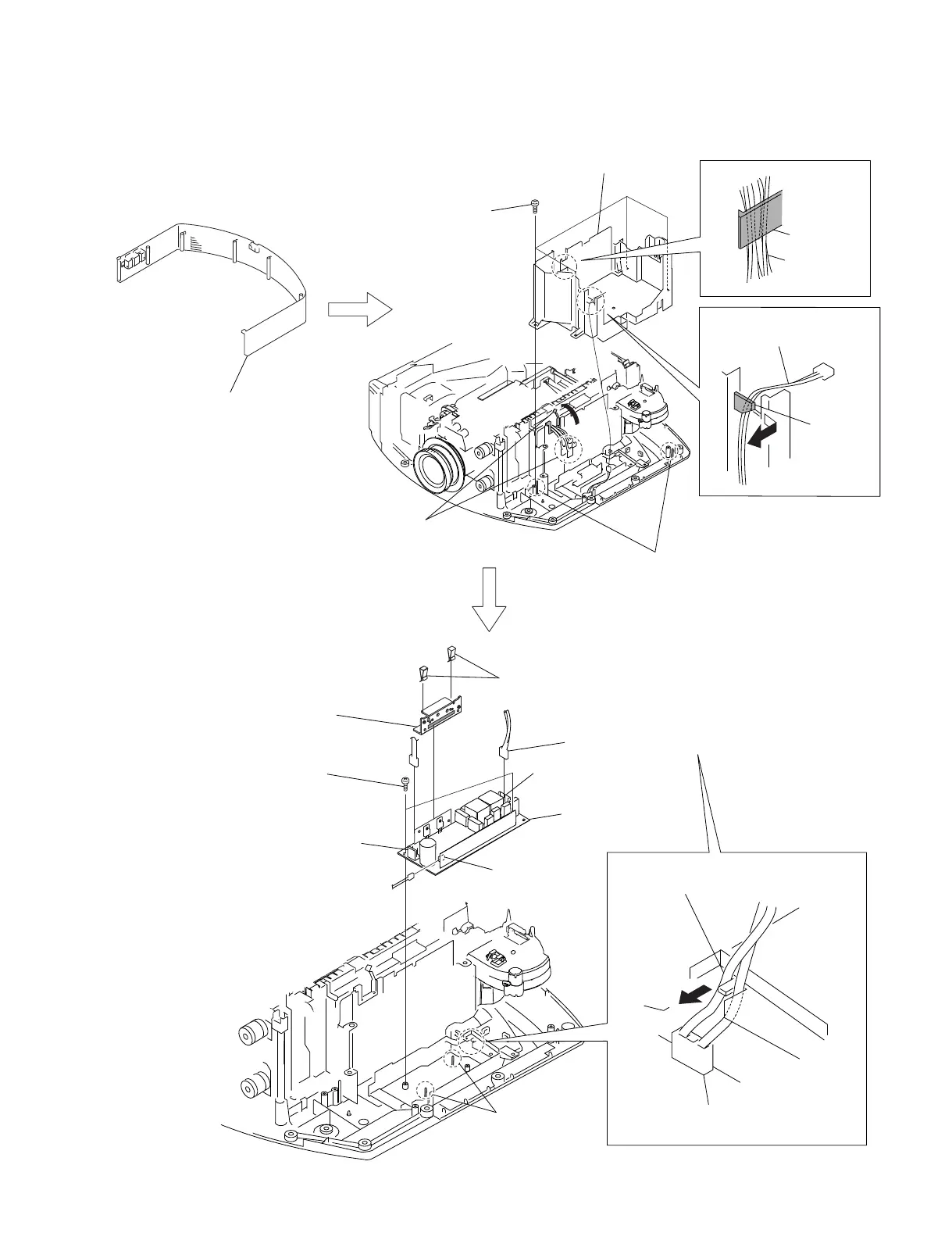

1-3-13. Lamp Power Supply
4 Four screws
(+BVTP 3 x 12)
7 G Holder
6 Two claws
5 harnesses
3 Remove the harness in the
direction of the arrow A .
Protrusion
Protrusion
2 Open the edge clamp and remove
the harnesses in the direction of the arrow B.
A
B
8 Two screws
(+BVTP 3 x 12)
![
Lamp power supply
0 Two claws
Lamp power connector assembly
9 Remove the lamp power connector
assembly in the direction of the arrow C .
!=
Heat sink (BA), Sheet (BA)
!- Two clips (BA)
X3
X3
X2
X1
1 Remove the hood assembly.
(Refer to section 1-3-2, step 1.)
C
