Sony VPL-VW70 User Manual

1-14
VPL-VW70

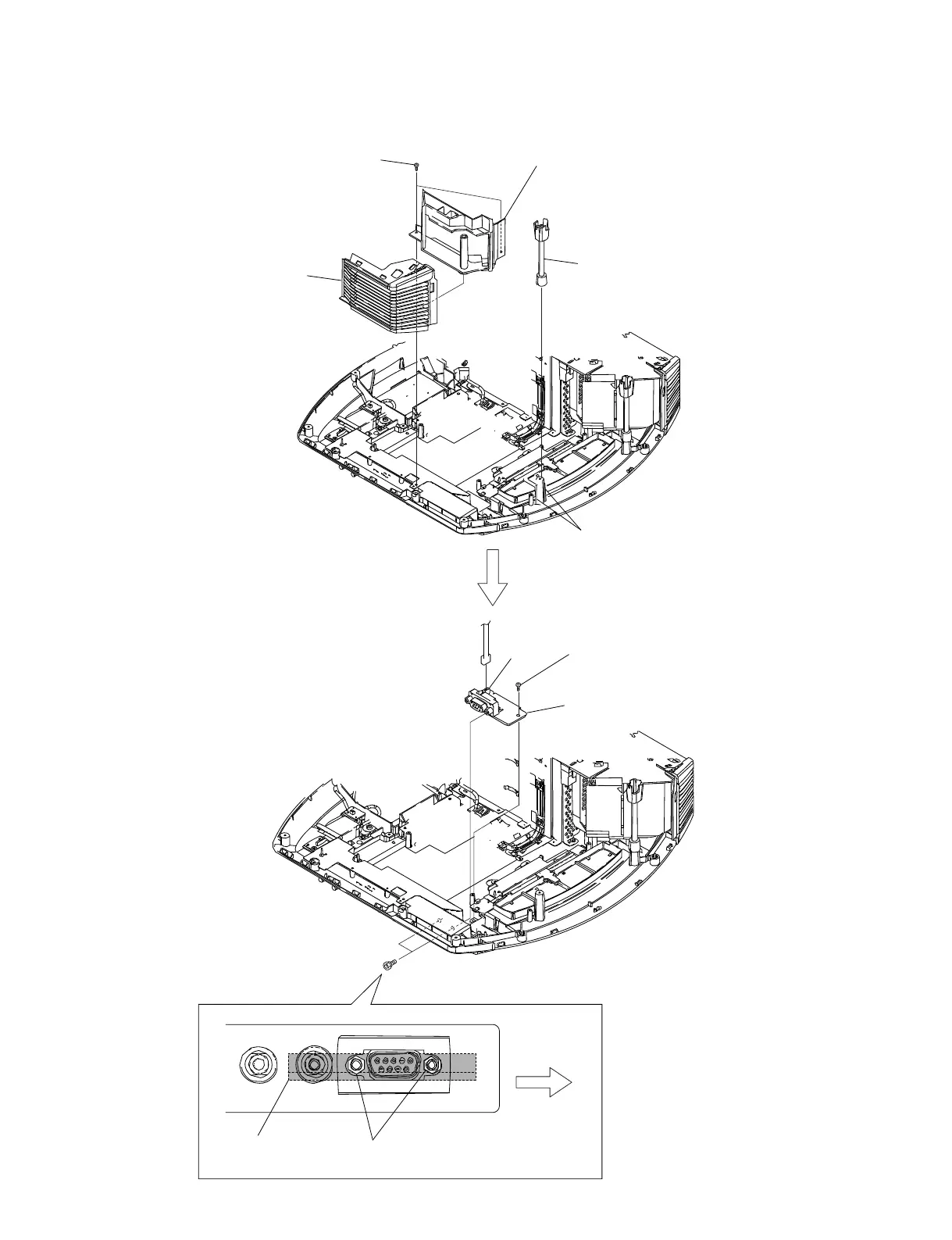

1-3-16. QB Board
3 Two screws
(+BVTP 3 x 12)
5 Louver (L)
2 Adjuster boss
1
Two protrusions
4 Lamp fan duct
(ATT)
6 Screw
(+BVTP 3 x 12)
8 QB board
CN11
Front Side
of Unit
7 Two hexagon screws
(There is a height difference. )
QB board
