XAV-701BT/741
7

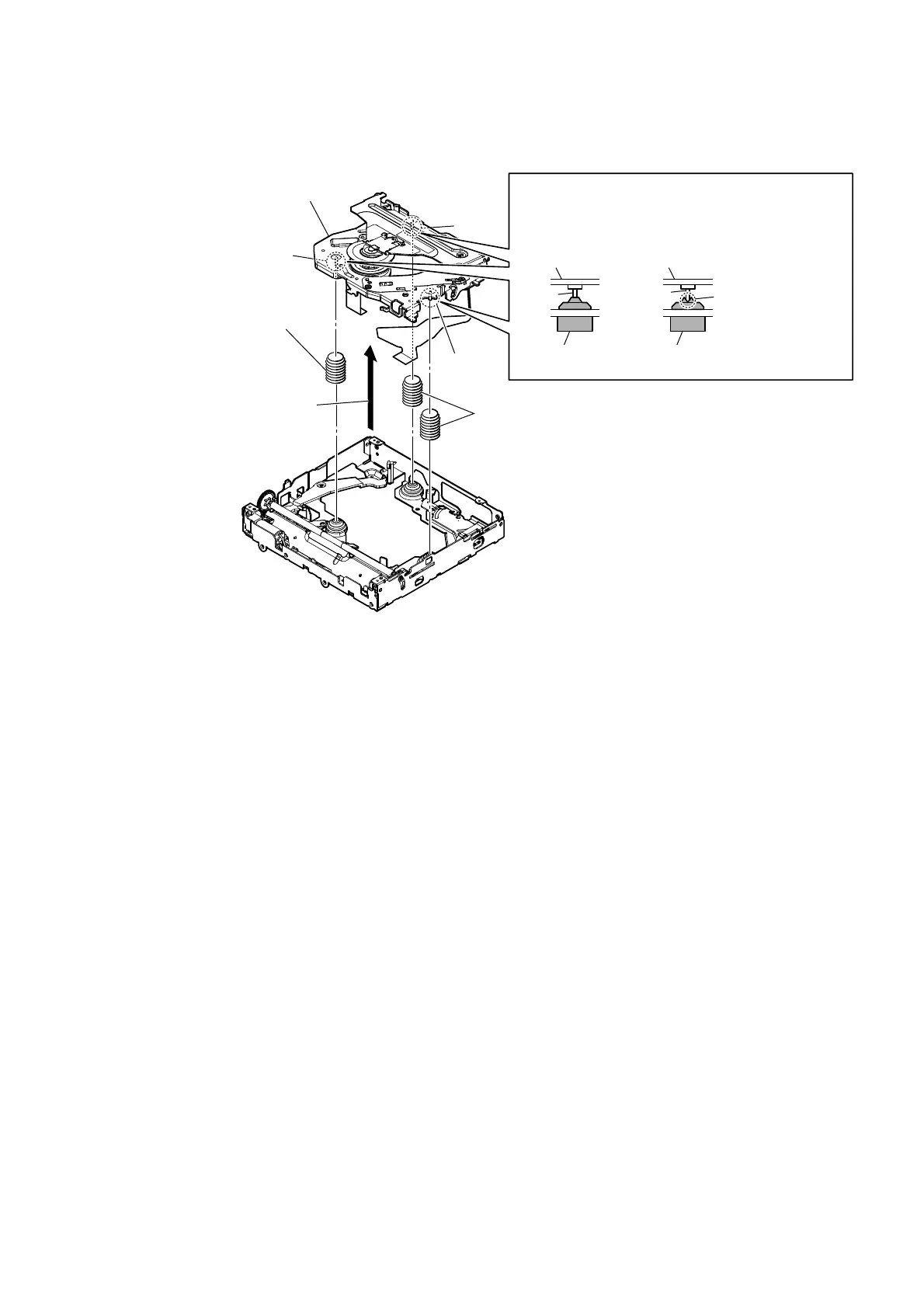

2-6. CHASSIS (OP, 614) COMPLETE ASSY (OP1)
xxxxxxxxxxx
3
two
compression springs
(damper) (natural)
1
shaft
1
shaft
1
shaft
4
compression
spring
(damper) (blue)
2
Remove the chassis (OP, 614)
complete assy in the direction
of an arrow.
5
chassis (OP, 614) complete assy
(OP1)
damper (S)
shaft
chassis (OP, 614)
complete assy
(OP1)
OK
damper (S)
Damper (S) is crushed.
shaft
chassis (OP, 614)
complete assy
(OP1)
NG
Note:
When installing the chassis (OP, 614) complete assy (OP1),
Check that the damper (S) is not crushed by the shaft.
