Sony XAV-701BT - 6-7. DVD MECHANISM DECK SECTION (MG-613 XF-187)

70
XAV-701BT/741

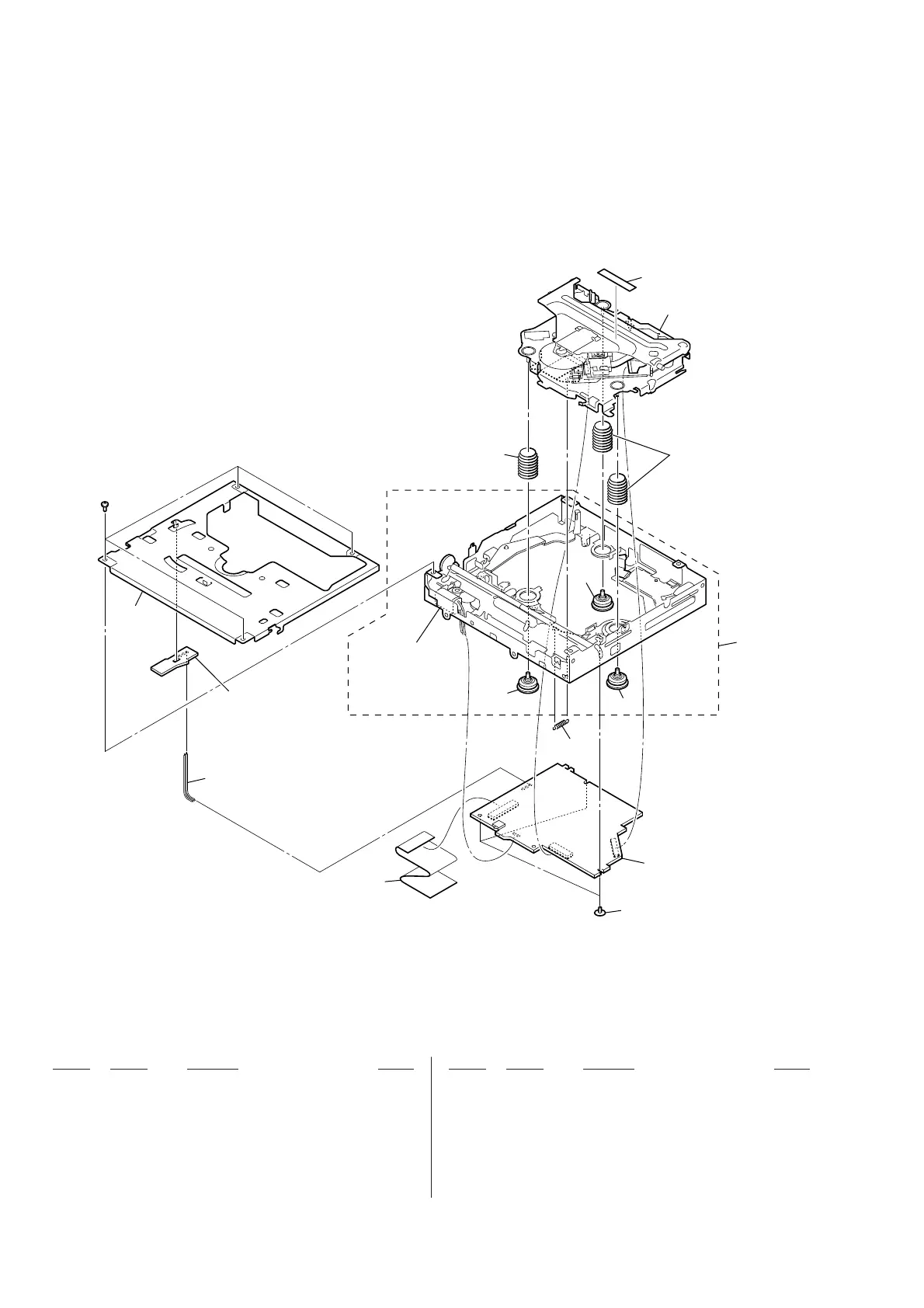

6-7. DVD MECHANISM DECK SECTION (MG-613XF-187)
301 A-1211-766-B CHASSIS (T612Z) SUB ASSY
302 2-893-930-01 SPRING (DAMPER, Z), COMPRESSION
303 3-257-892-01 SPRING (DAMPER), COIL
304 2-891-836-02 DAMPER (S)
305 3-253-748-11 DAMPER (S)
306 2-188-954-11 SPRING (KF), TENSION
307 A-1848-243-A SERVO BOARD, COMPLETE
308 4-162-647-01 SCREW, TOOTHED LOCK +Z M1.7X2.5
FFC1 1-839-497-11 CABLE, FLEXIBLE FLAT (60 CORE)
MO1 A-1732-663-A CHASSIS (M613) COMPLETE ASSY
(Including loading motor (M1))
0 OP1 A-1560-594-B CHASSIS (OP, ZA) COMPLETE ASSY
(Including optical pick-up (KHS-360A))
#8 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
xxxxxxxxxxx
301
#8
MO1
loading motor (M1)
FFC1
not supplied
OP1
not supplied
(SENSOR board)
302
303
306
307
308
305
304
305
not supplied
