XAV-701BT/741
18

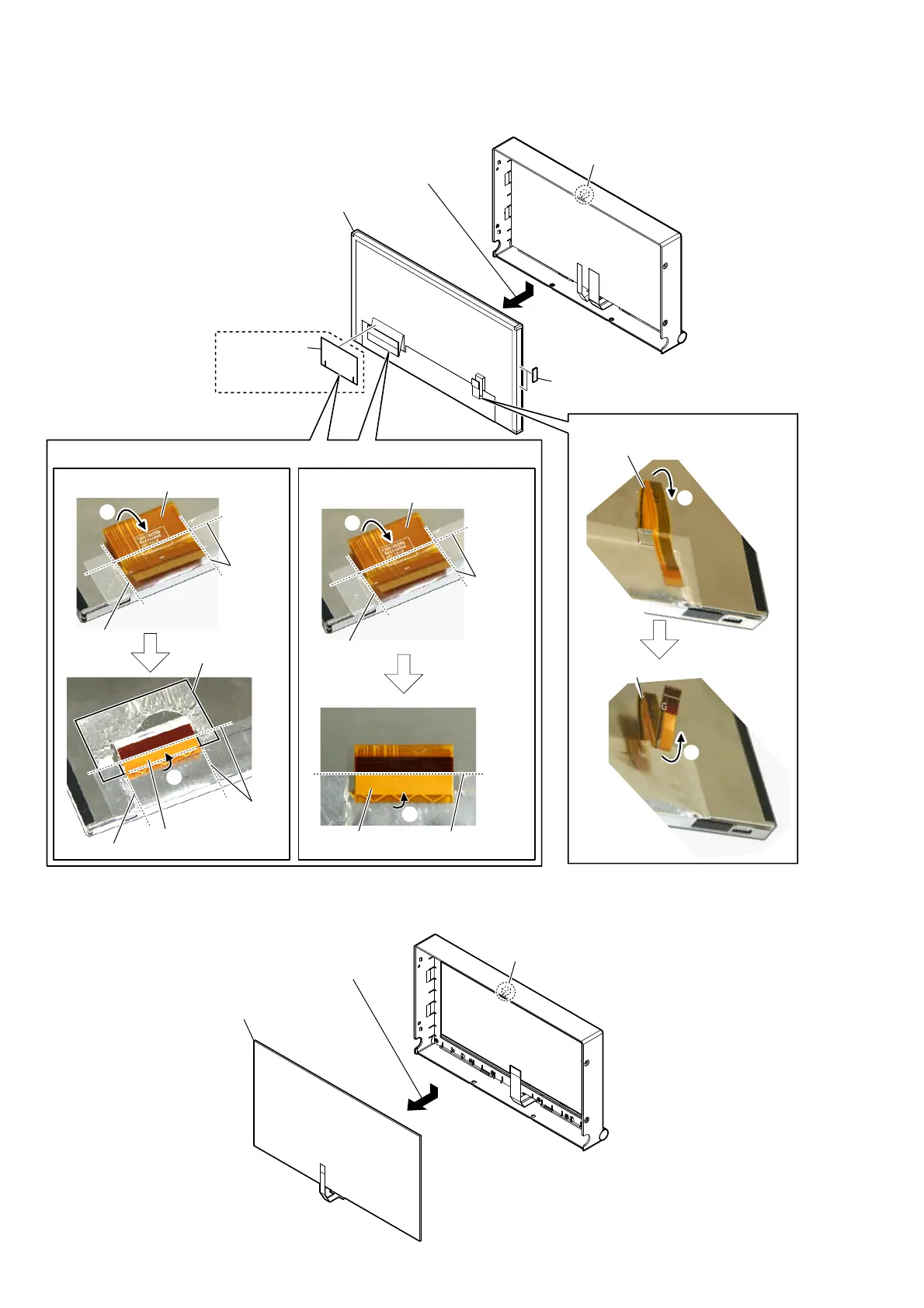

3-7. LIQUID CRYSTAL DISPLAY PANEL (LCD1)
(XAV-701BT)
(XAV-701BT)
2 Remove the LCD block in
the direction of an arrow.
3 two cushions (LCD)
4 sheet (LCD)
5 liquid crystal display panel
(LCD1)
1 claw
– Front panel block rear side view –
sheet (LCD)
1
2
guide line
guide line
guide line
guide line
/&' Ile[ible board settinJ
LCD flexible board
LCD flexible board
(XAV-741)
1
2
guide line
guide line
guide line
LCD flexible board
LCD flexible board
/&' Ile[ible board settinJ
LCD flexible board
LCD flexible board
1
2
2 Remove the touch panel in
the direction of an arrow.
3 touch panel (TPN1)
1 claw
– Front panel block rear side view –
3-8. TOUCH PANEL (TPN1)
To Next Page
