XAV-701BT/741
XAV-701BT/741
1010
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
C
B
These are omitted.
E
Q

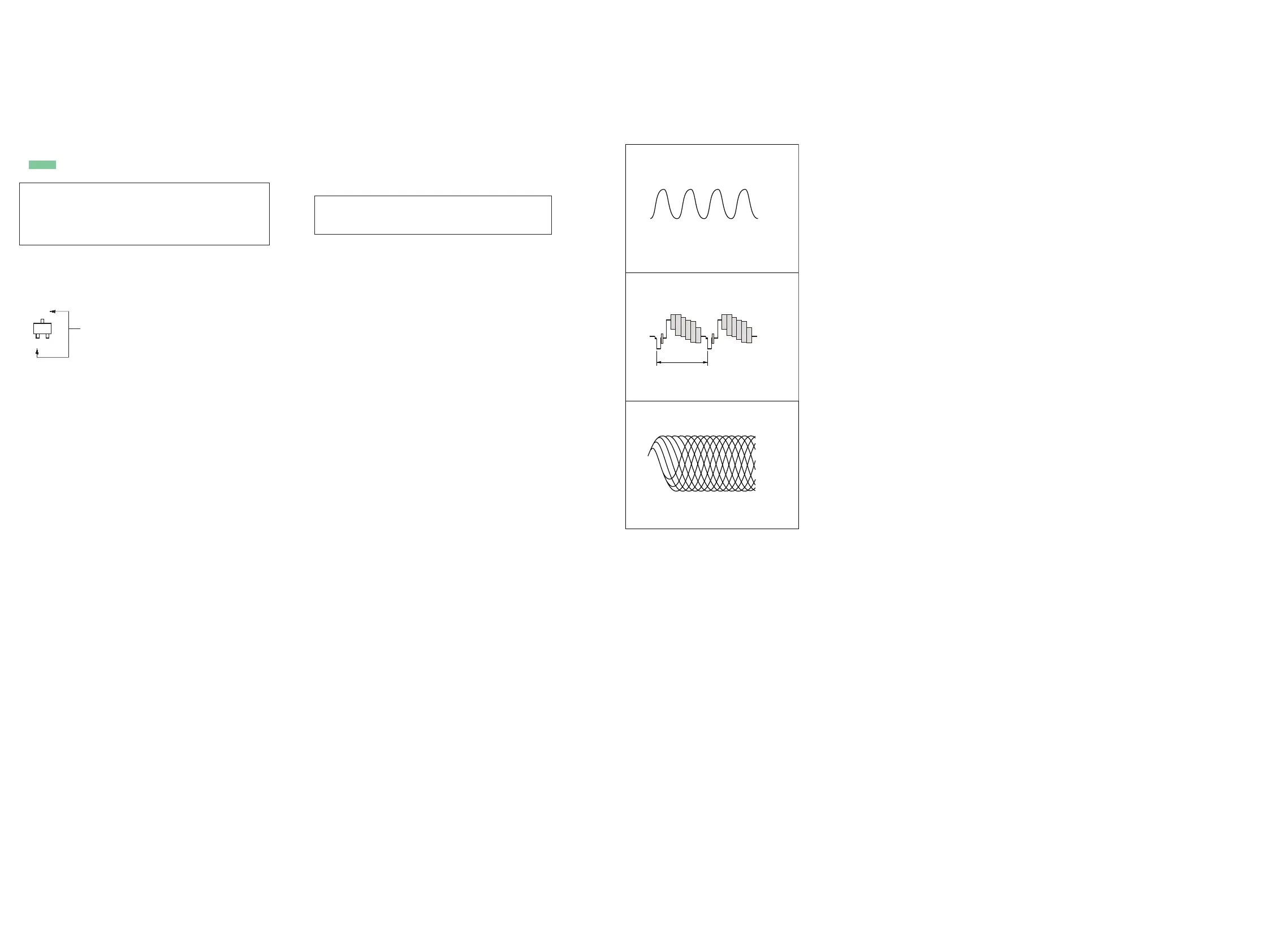

• Waveforms
Note: Numerical values are changed by the measurement condition,
or quality of parts, the values have not been indicated.
– SERVO Board –
2
IC004 <zbz (DAC3)
(Color bar)
500 mV/DIV, 20 Ps/DIV
3
IC004 <zbm (RFP)
(DVD play mode)
200 mV/DIV, 200 ns/DIV
1
IC004 <zvb (XO)
2 V/DIV, 20 ns/DIV
H
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• SERVO board is multi-layer printed board.
However, the patterns of intermediate-layer have not
been included in this diagrams.
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.
• A : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc pow-
er supply from ACC and BA
TT cords.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark
: DVD PLAY
*
: Impossible to measure
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
J : DISC PLAY
E : VIDEO
Note: The components identifi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specifi ed.
To Next Page
