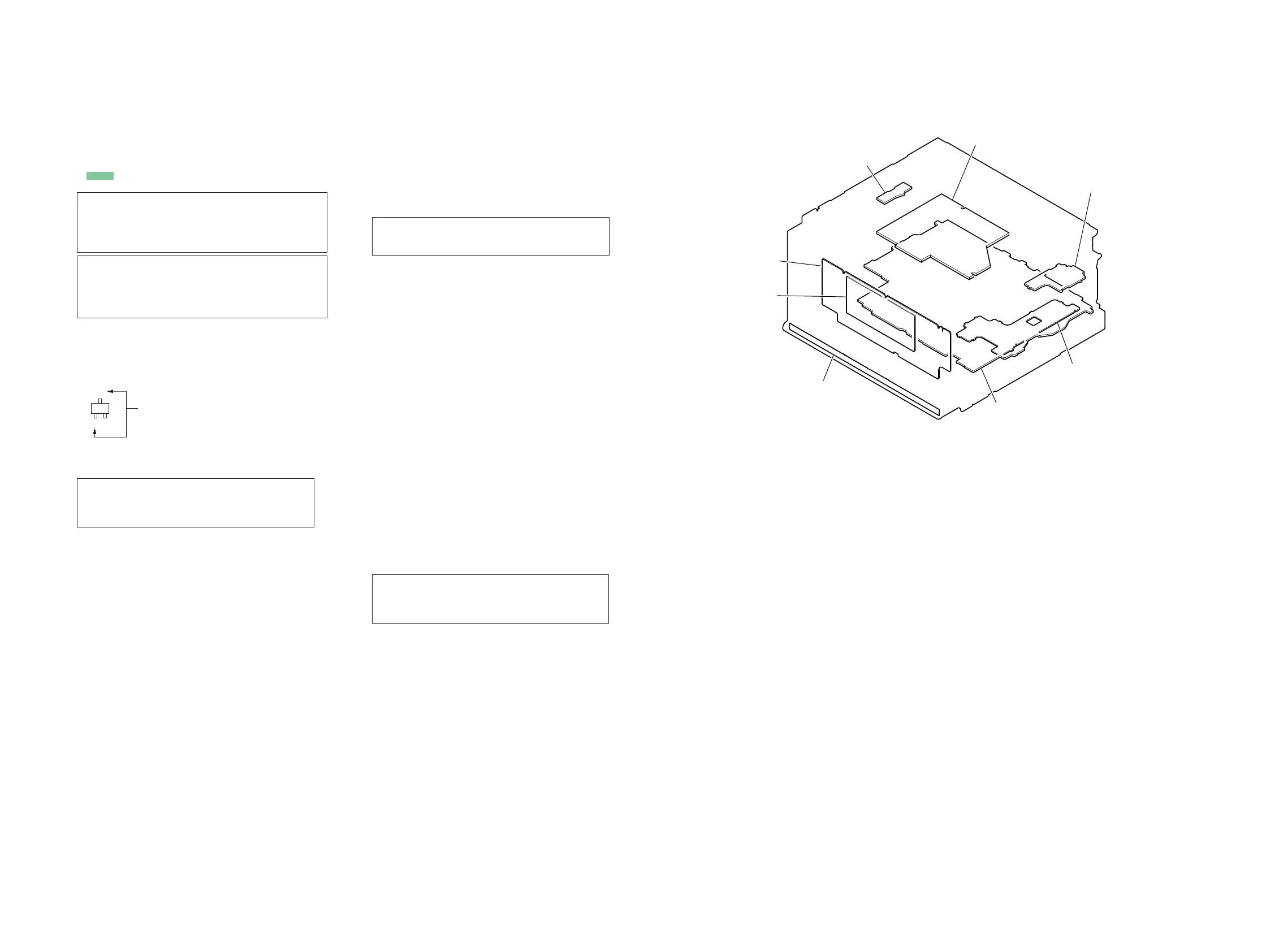

Circuit Boards Location
For Schematic Diagrams.
Note:
All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in Ω and 1/4 W or less unless otherwise
speci ed.
f
: Internal component.
C : Panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A : B+ Line.
B : B– Line.
Power voltage is dc 14.4V and fed with regulated dc pow-
er supply from ACC and BATT cords.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
- SERVO board -
no mark
: DVD PLAY
*
: Impossible to measure
- Other board -
no mark
: TUNER (FM)
Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
J : DISC PLAY
k : USB
f : TUNER
N : MIC
h : NAVI
E : VIDEO
• Abbreviation
RU : Russian model
SAF : South African model
For Printed Wiring Boards.
Note:
X : Parts extracted from the component side.
Y : Parts extracted from the conductor side.
f
: Internal component.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
SERVO board is multi-layer printed board.
However, the patterns of intermediate-layer have not
been included in this diagrams.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Indication of transistor.
C
B
These are omitted.
E
Q
• Abbreviation
RU : Russian model
SAF : South African model
Note: When the complete MAIN board is replaced, the
destination setting is necessary. Refer to “NOTE
THE MAIN BOARD OR SYSTEM CONTROLLER
(IC502) REPLACING” on page 5.
Note: When the complete MAIN board is replaced, the
destination setting is necessary. Refer to “NOTE
THE MAIN BOARD OR SYSTEM CONTROLLER
(IC502) REPLACING” on page 5.
Note: The components identi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number speci ed.
MAIN board
MOTOR board
EXT-NAVI board
(E (PAL), South African, Russian models)
KEY7 board
DISPLAY board
D-SUB7 board
SENSOR board
SERVO board
