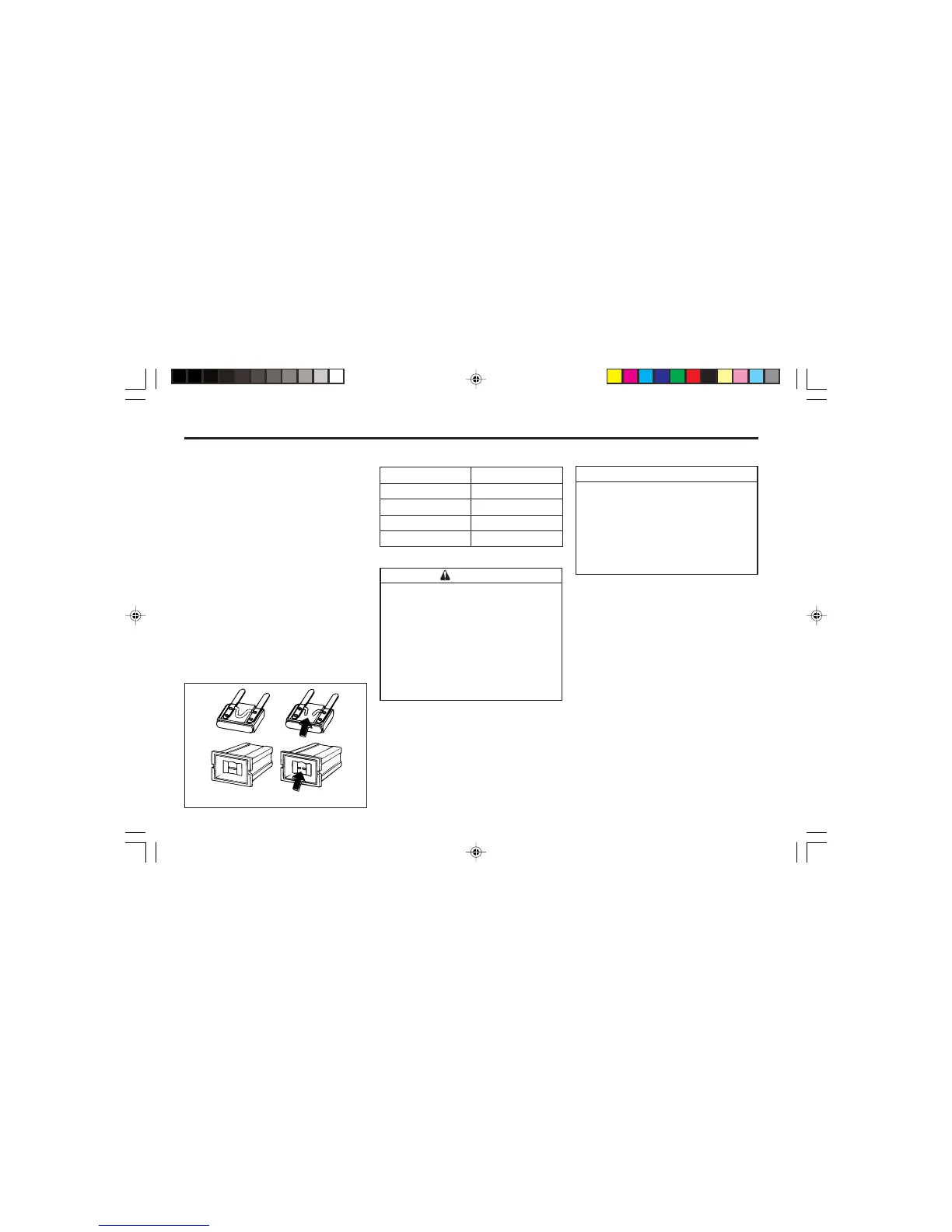

7–28 SERVICE AND MAINTENANCE
Rating
7.5A
10A
15A
20A
Color
Brown
Red
Blue
Yellow
WARNING
The use of different types or differ-
ent rating fuses could cause damage
to the electrical system and even start
a fire.
• Always replace fuse with one with
the same rating.
• Never use anything else but a fuse.
• Do not use anything metal to re-
move fuse.
NOTE
Five pieces of spare fuse for 7.5A,
10A, 15A, 20A, 25A are located on the
inside of fuse & relay box in the en-
gine compartment respectively.
Four pieces of spare fuse for 7.5A, 10A,
15A, 20A are located on the inside of
fuse in the interior respectively.
ELECTRICAL SYSTEM
Ignition System
Electronic ignition systems have a greater
ignition power than conventional systems. It
is thus highly dangerous to touch live parts.
Fuse
For fuse replacement, withdraw the cover
and extract blown fuse.
A defective fuse can be recognized by its
melted wire. A new fuse should only be in-
stalled after the cause of the trouble has
been located and eliminated.
Only fuses of the specified rating should be
installed. The rating is given on all fuses.
normal melted
