SERVICE AND MAINTENANCE 7–35
7. Install a new bulb into the holder by
pressing it in and rotating it clockwise.
8. Install the bulb holder into the lamp hous-
ing by rotating it clockwise.
9. Reconnect the wiring harness connector.
10. Re install the lamp assembly using the
original screw and nut, tighten securely.
11. Close the tailgate.
* Rear fog lamp: Mandatory where required
by regulation
Turn signal
Brake/Tail
Rear fog*
Reverse

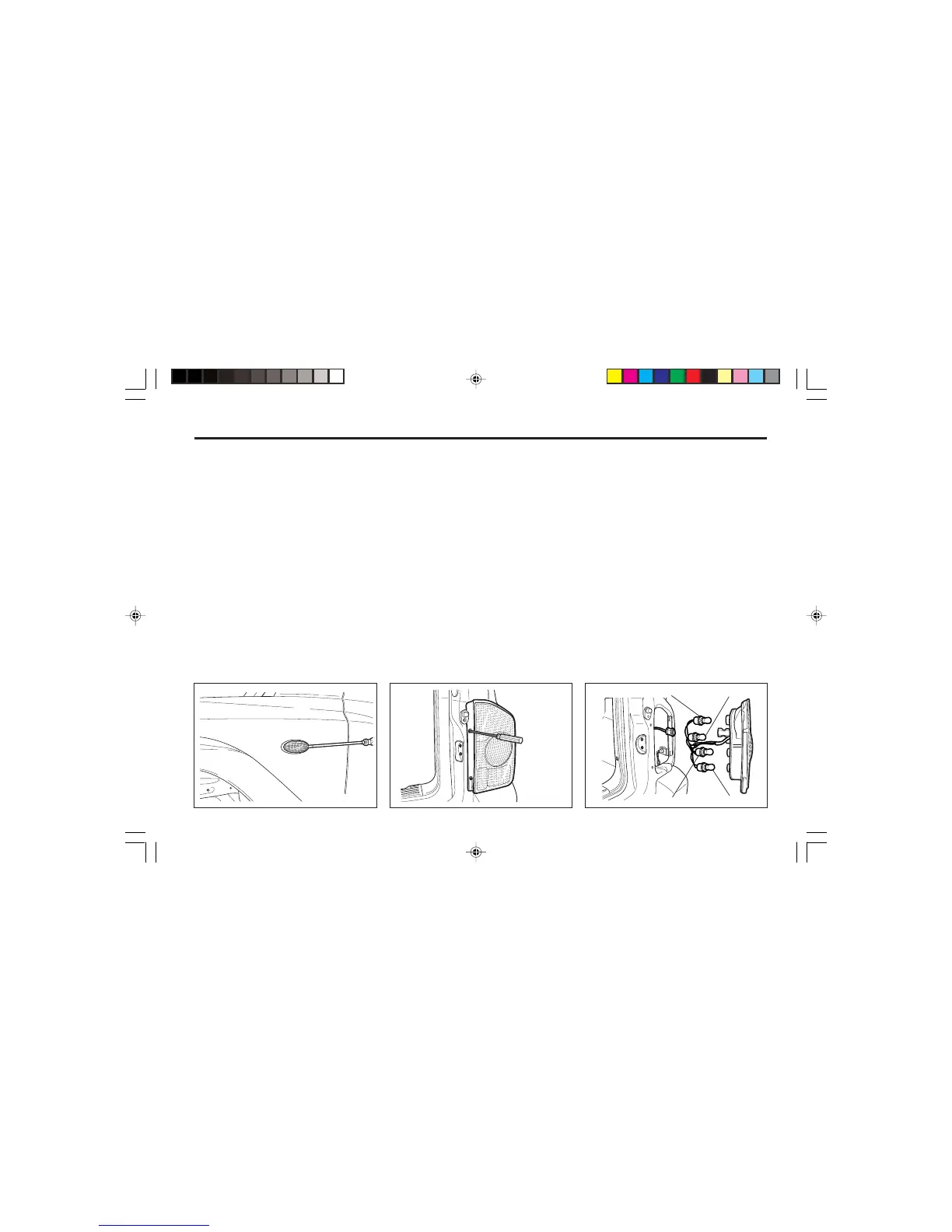

REAR COMBINATION LAMPS
(BRAKE, REAR TURN SIGNAL,
REVERSE, AND REAR FOG*
LAMPS)
Bulb Replacement:
1. Open the tailgate.
2. Remove the two screws and the lamp
assembly.
3. Disconnect the wiring harness connec-
tor from the rear of the lamp assembly.
4. Rotate the bulb holder counterclockwise.
5. Pull the bulb holder out of the lamp hous-
ing.
6. Press the bulb inward and rotate it
counter clockwise to remove it from the
bulb holder.
SIDE REPEATER LAMPS
Bulb Replacement:
1. Remove the lamp assembly with a flat-
blade screwdriver by pushing the re-
tainer spring of the lamp assembly.
2. Rotate the bulb holder counterclockwise.
3. Remove the bulb from the lamp housing
by pulling the bulb straight out of the
holder.
4. Insert the proper replacement bulb in the
bulb holder by pushing in.
5. Install the bulb holder by rotating it clock-
wise.
6. Push the lamp assembly into its original
position.
