– 101 –
APPENDIX

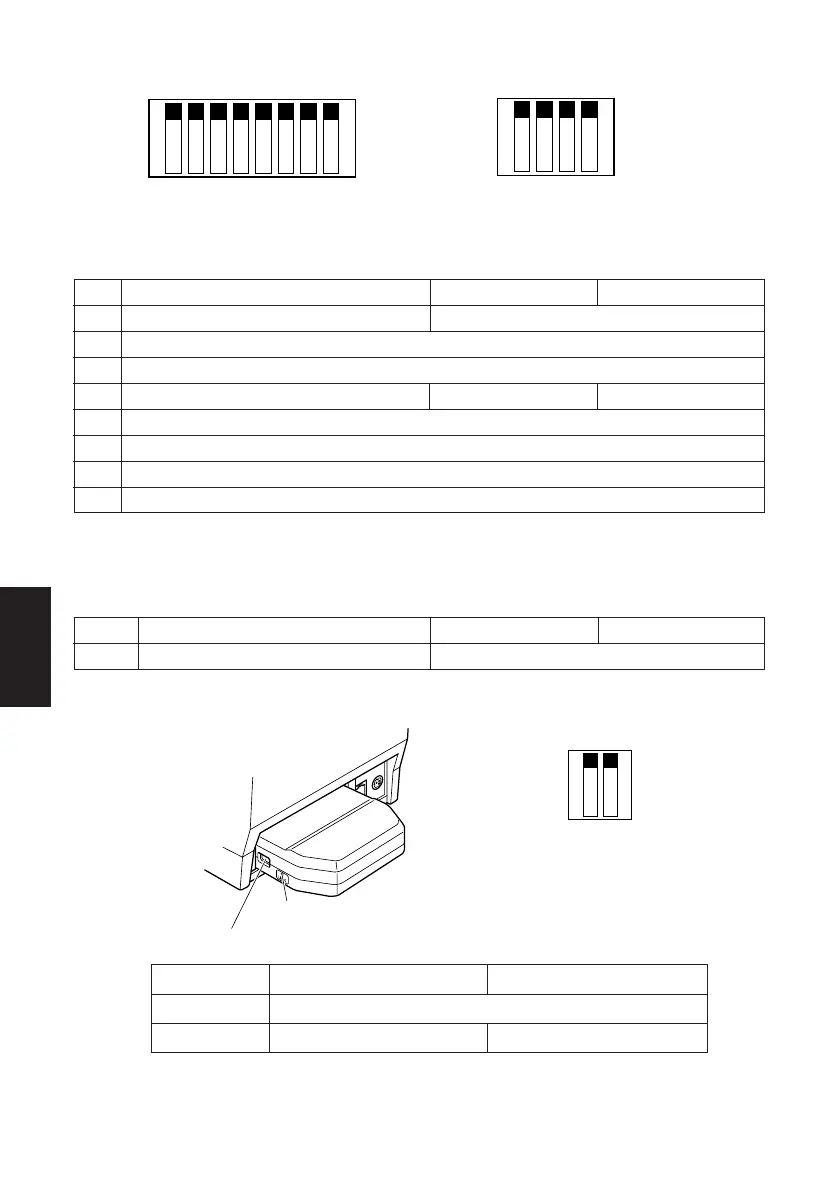

B-5. Wireless LAN Interface Model
DIP Switch ON OFF
3-1 Fixed at OFF
3-2 Initialize of setting information —
The factory settings of DIP switch are all off.
LED Display
Green : Lights when pockets are received.
DIP Switch 3
LED
No. 1
DIP-SW 3
2
OFF
ON
No. 1
DIP-SW1
2 3 4 5 6 7 8
No. 1
DIP-SW2
2 3 4
Switch
Function ON OFF
1-1 Command emulation (Ster Line mode) Always ON
1-2 Should not be changed (Should be set to on)
1-3 Should not be changed (Should be set to on)
1-4 Sensor adjustment Invalid Valid
1-5 Should not be changed (Should be set to on)
1-6 Should not be changed (Should be set to on)
1-7 Should not be changed (Should be set to on)
1-8 Should not be changed (Should be set to on)
The factory settings of DIP switch are all on.
DIP-SW 2
Switch
Function ON OFF
2-1~2-4 Always ON Should be set to on
The factory settings of DIP switch are all on.
DIP-SW1
To Next Page
