EN - 3
2. PRODUCT DESCRIPTION
This machine is a gardening tool designed to be operated
as a front cutting, ride-on lawn mower with seated operator.
The machine has an engine which actuates the cutting means
which is protected by a guard as well as a transmission which
ensures machine movement.
The machine is articulated. This means that the chassis is
divided into a front section and a rear section which can be
steered in relation to each other.
The articulated steering means that the machine can be
driven around trees and other obstacles with an extremely
limited steering radius.
The operator is able to operate the machine and use the main
controls, always seated in the operator's position.
The safety devices tted on the machine will stop the machine
and the cutting means assembly.
Intended use and misuse
This machine is designed and built for cutting grass in gardens
and grassy areas.
The use of special attachments provided for by the
Manufacturer as original equipment or which may be
purchased separately, allows this work to be done in various
operating modes, illustrated in this manual or the instructions
that accompany the single attachments.
Any other use may be dangerous and cause damage to
persons and/or property.
Examples of improper use may include, but are not limited to:
• transporting other persons, children or animals on the
machine;
• using the machine for towing or pushing loads without the
use of the specied attachment for towing;
• Using the cutting means on surfaces other than grass;
• Using the machine for leaf or debris collection;
• using the machine to pass over unstable, slippery, icy,
stony or uneven ground, puddles or swamps.
Improper use of the machine will void the war-
ranty and relieves the Manufacturer of any liability, placing all
responsibility for damage or injury, to him/herself or third par-
ties, on the user.
The machine must be used by one operator
only.
The machine has not been type-approved for cir-
culation on public roads. It must be used (as indicated by the
highway code) in private areas closed to traffic.
2.1.
A. Chassis
B. Wheels
C. Steering wheel
D. Seat
E. Console
F. Pedal control
G. Engine hood
H. Front attachments lift lever
I. Fuse housing
J. Battery
K. Fuel tank
L. Transmission oil tank
M. Engine
N. Quick-release supports for attachments
2.2.

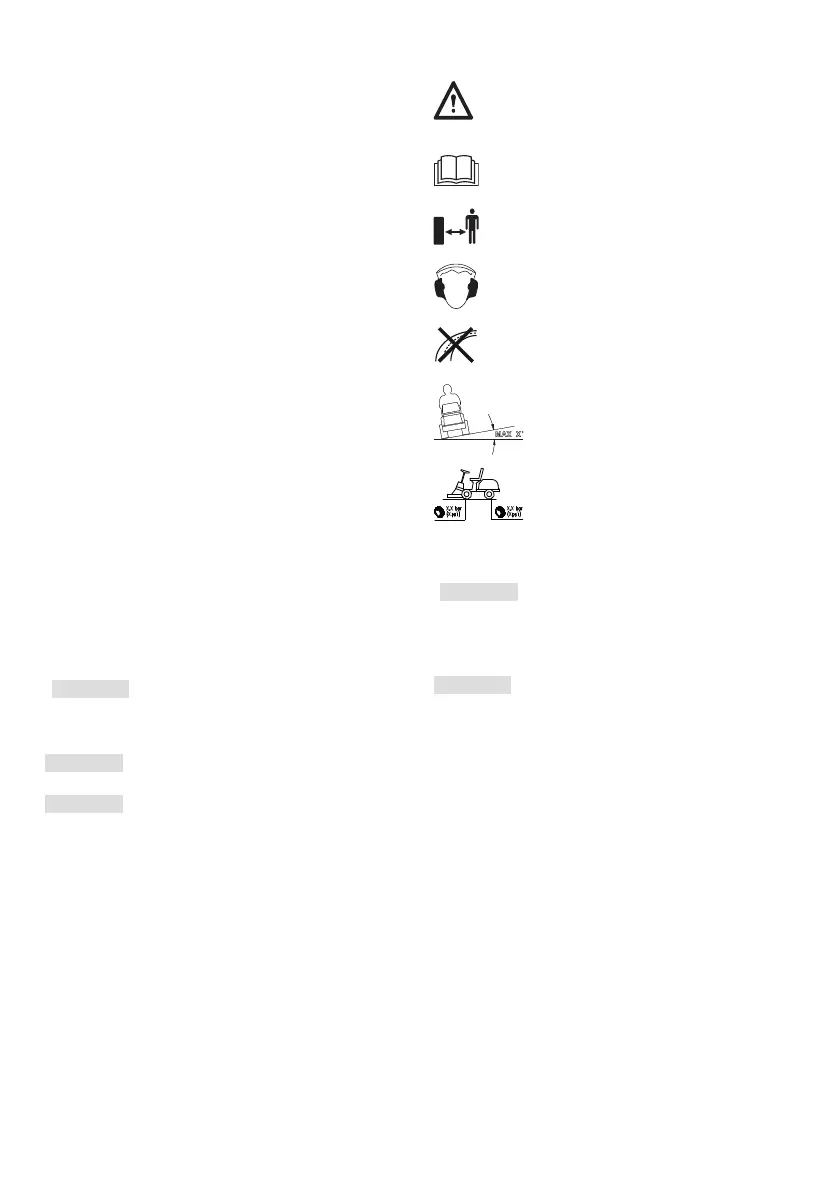

ATTENTION
Indicates danger. It is normally combined
with other signs indicating the particularity
of the danger.
ATTENTION
Read the owner's manual carefully before
using the machine.
ATTENTION
Pay attention to any scattered objects. Pay
attention to any people on the workplace.
ATTENTION
Always wear ear defenders.
ATTENTION
The machine has not been approved for use
on public roads.
ATTENTION
This machine, with original attachments
installed, can proceed with a maximum
inclination of 10°, regardless of direction.
Tyre pressure . The label shows the opti-
mum tyre pressure values - see chapter '0
TABLE OF TECHNICAL DATA'. The cor-
rect tyre pressure is an essential condition
for obtaining good results from using the
machine.
Any damaged or illegible decals must be re-
placed. Order replacement decals from an Authorised Service
Centre.
3.
Unpacking and assembly operations should be
performed on a flat and stable surface, with enough space for
handling the machine and its packaging, using the proper tools.
3.1. UNPACKING
1. Carefully open the packaging, paying attention not to
lose components
2. Consult the documentation in the box, including these
instructions.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the packaging taking the
following precautions:
- move the cutting means assembly to its maximum height
(par. 4) to protect it against damage when the machine
is lifted o the base pallet;
- Move the front drive release lever to the released position
(par. 4) (for models with hydrostatic drive).
- Lift the machine o the base pallet.
