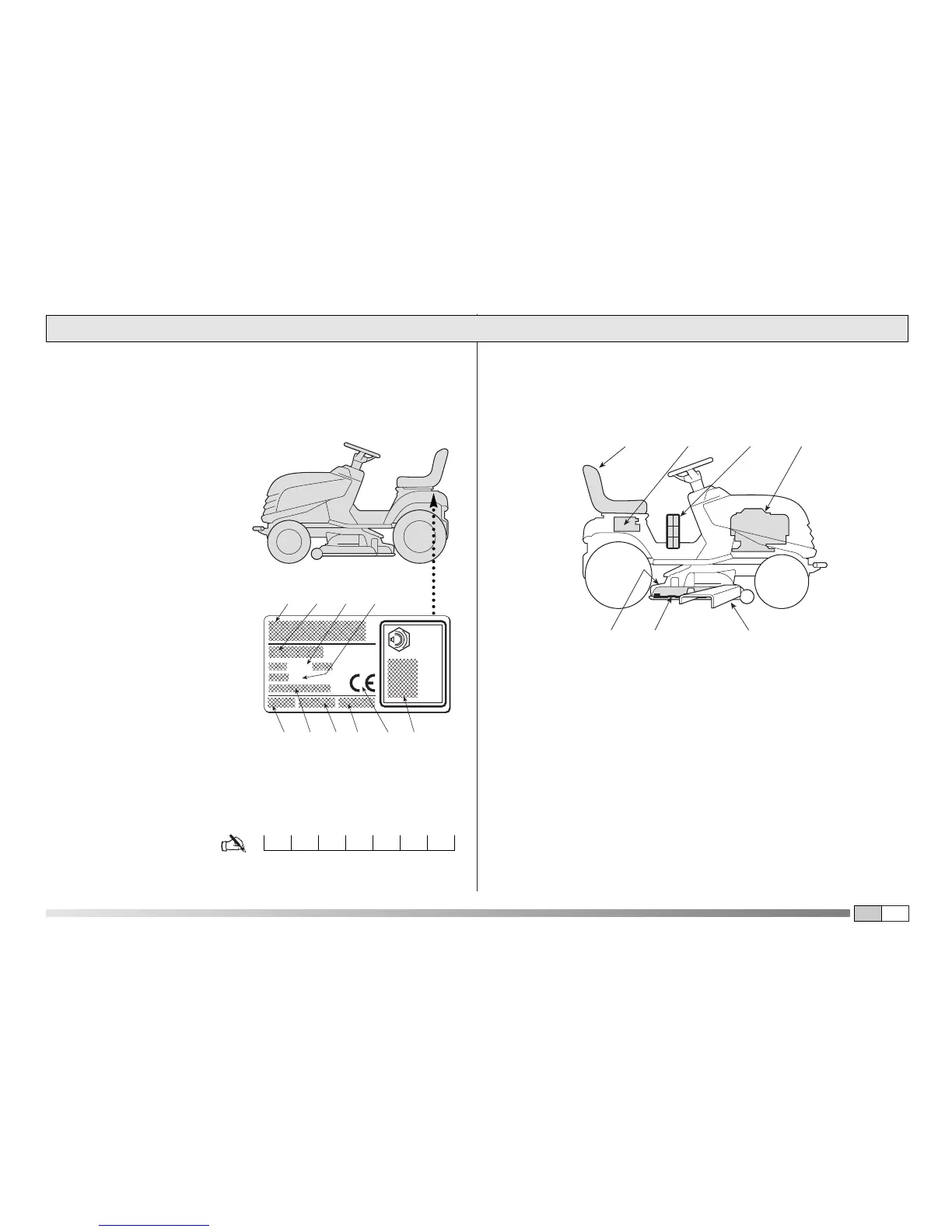

2.1 IDENTIFICATION OF THE MACHINE
The label located near the battery housing has the essential
data of each machine.
1. Acoustic power level
according to directive
2000/14/CE
2. Conformity mark
according to directive
2006/42/CE
3. Year of manufacture
4. Operating engine power
and speed
5. Type of machine
6. Serial number
7. Weight in kg
8. Name and address
of manufacturer
9. Type of transmission
(if indicated)
10. Article Code
2.2 IDENTIFICATION OF MAIN COMPONENTS
The main components of the machine have the following func-
tions:
11. Cutting deck: this is the guard housing the rotating
blades.
12. Blades: these are what cut the grass. The wings at the
ends help convey the cut grass towards the collector
channel.
13. Stone-guard or deflector: It is a safety guard which pre-
vents objects drawn up by the blades from being thrown
outside of the machine.
14. Engine: this moves the blades and drives the wheels. Its
specifications and regulations for use are described in a
specific manual.
