9
For storage and transport purposes, some components of the
machine are not installed in the factory and have to be assem-
bled after unpacking. Follow the instructions below.
The machine is supplied without engine
oil or fuel. Before starting the engine, fill with oil and fuel fol-
lowing the instructions given in the engine manual.
Unpacking and completing the
assembly should be done on a flat and stable surface,
with enough space for machine handling and its packag-
ing, always making use of suitable equipment.
3.1 UNPACKING
When unpacking the machine, take care to gather all individual
parts and fittings, and do not damage the cutting deck when
taking the machine off the pallet.
The packaging contains:
– the machine;
– the steering wheel;
– the dashboard cover;
– the seat;
– the battery;
– the stone-guard
– an envelope containing:
WARNING!
IMPORTANT
– the operator’s manuals and documents,
– steering wheel assembly parts,
– nuts and bolts to assemble the seat and the stone-guard,
– the connection screws for the battery cables
– 2 starter keys,
– 1 spare 10 A fuse.
To prevent damage to the cutting deck,
raise it to its maximum height and take utmost care when
taking the machine off the pallet.
To make it easier to get the machine off the pallet and to
move it, the drive disengage lever should be put in position
«B» ( 4.33).
Disposal of the packaging should be done in accordance with
the local regulations in force.

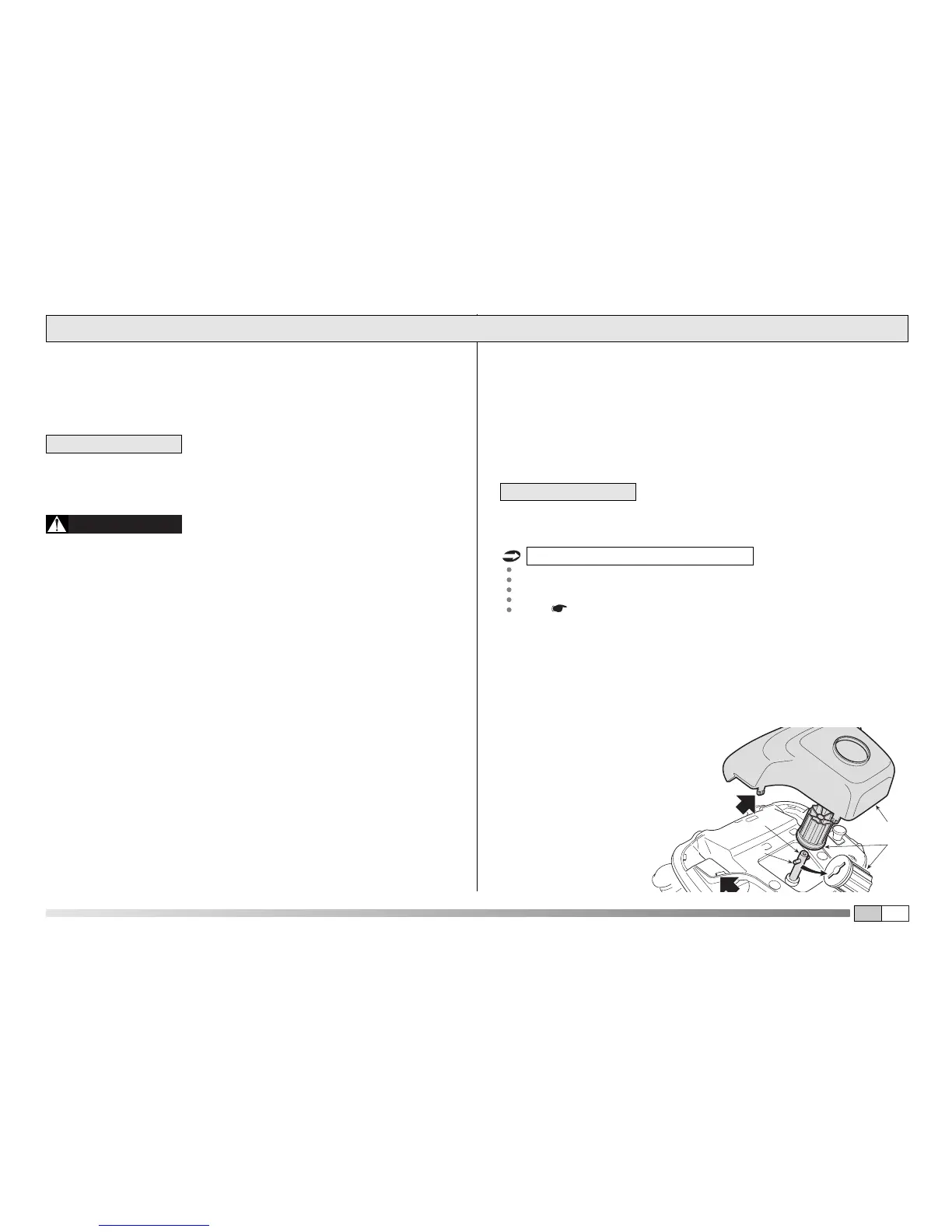

3.2 FITTING THE
STEERING
WHEEL
Put the machine on
a flat surface and
straighten up the
front wheels.
Mount the hub (1)
on the shaft (2),
Hydrostatic transmission
NOTE
EN
3. UNPACKING AND ASSEMBLY
