WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD
The stretcher can be accessed from the inspection
hatch beneath the seat.

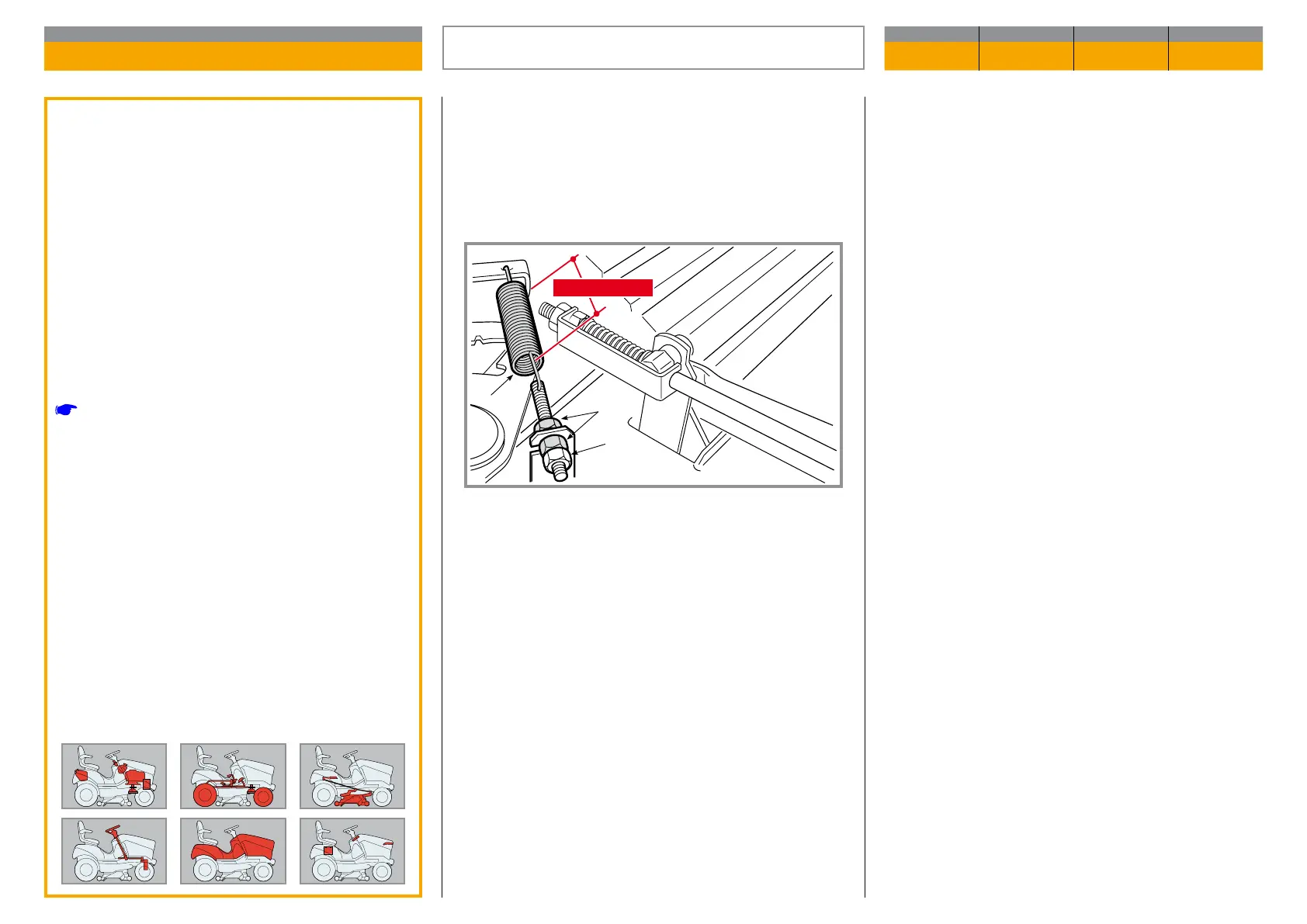

Adjust the tension of spring (1) using nuts (2) to set
length «A» of 109 ÷ 111 mm, measured from the outer
ends of the springs with the drive commands disen-
gaged.
Following adjustment, fully tighten the nuts (2) and the
locknut (3).
General informations
If it seems that the forward drive is not working
pro perly after a long period of use or after repla
cing the belt, this may be caused by a change in
the length of the belt.
– A loose belt reduces output from the drive and
li mits forward movement power;
– a belt which is too tight increases noise and
re sults in jerky movements or tipping up when
en gaging the drive.
In both cases the stretcher needs to be adjusted.
Related topics
[
6.4] Replacement of the drive belt
CHAPTER REVISION FROM ... PAGE
4.3 0 2018 1 of 1
DRIVE BELT ADJUSTMENT
