WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD

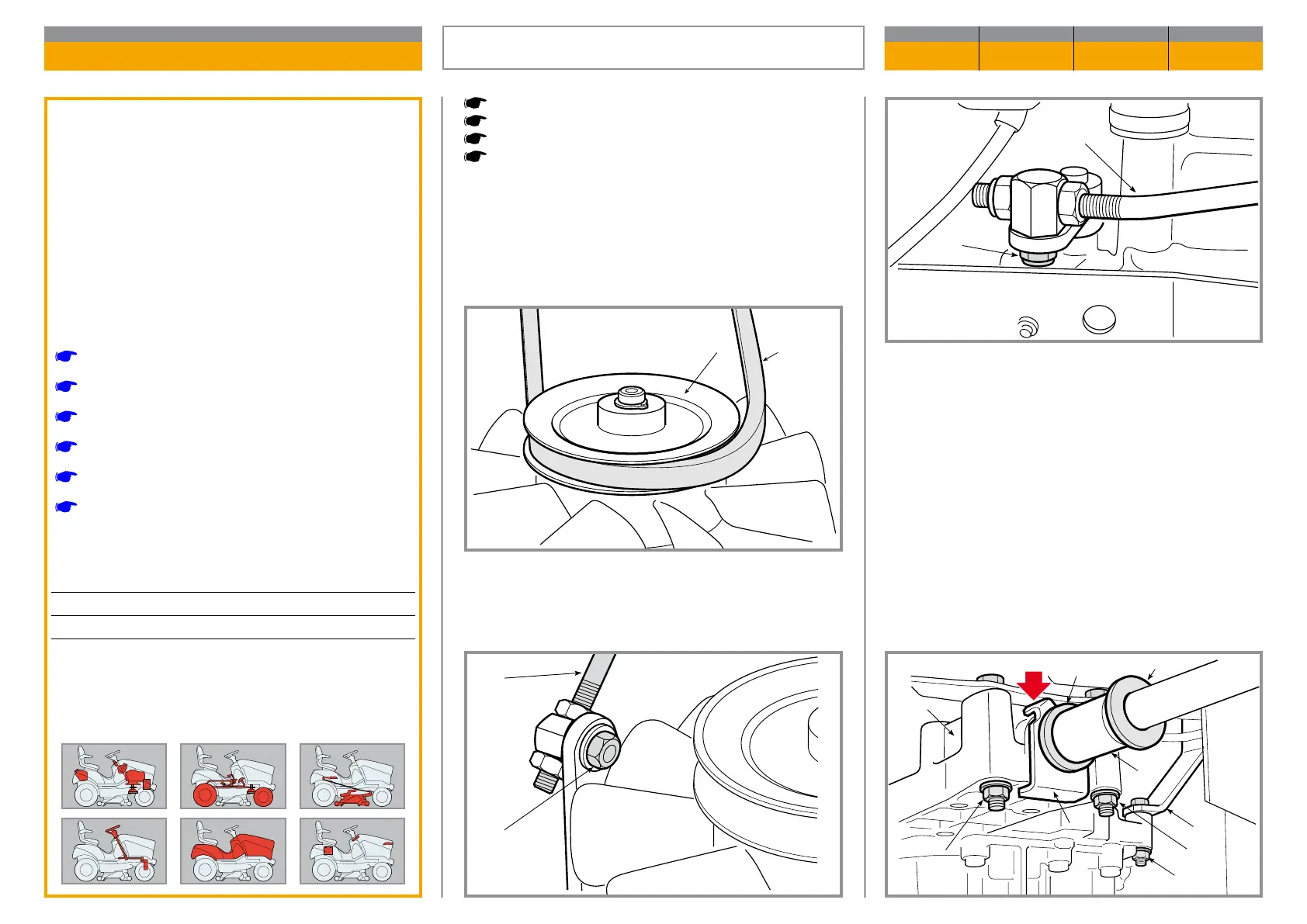

The transmission unit (11) is supported by a holder
(12) xed by a screw with nut (13) and is xed to the
chassis by four screws with relative nuts (14).
Undo the nut (13) and then carefully undo the four
lower nuts (14), holding up the unit so that it does not
fall.
Remove the rear part of the wheel cover
Remove the rear tank (if installed)
Lift the rear part of the machine
Remove the rear wheels.
Working from the rear section, grasp the two branch-
es of the belt (1), pulling it just enough to free it from
the pulley throat (2), overcoming the resistance of the
idler pulley spring.
Remove the drive control rod (3) by unscrewing the
relative pin nut (4) and the brake rod (5) by un screwing
the nut (6) under the lever.
General informations
The rear axle (Transaxle) is made up of a single
maintenance free sealed unit which includes the
transmission unit (hydrostatic) and the dieren
tial and doesn’t need any maintenance.
It only needs to be removed to be replaced or for
an overhaul by the Manufacturer’s Service Cen
tre.
Related topics
[
2.3] Lifting of the machine
[
4.2] Brake adjustment
[
4.4] Drive pedal adjustment
[
5.2] Removal of the rear cover
[
5.7] Removal the rear tank (if present)
[
6.1] Removal of the wheels
Tightening torques
13 Rear axle support nut .................. 25 ÷ 30 Nm
14 Rear axle fastening nuts .............. 25 ÷ 30 Nm
REMOVAL OF THE REAR AXLE
(Tu Torq K46F)
CHAPTER REVISION FROM ... PAGE
5.5 0 2018 1 of 2
