WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD

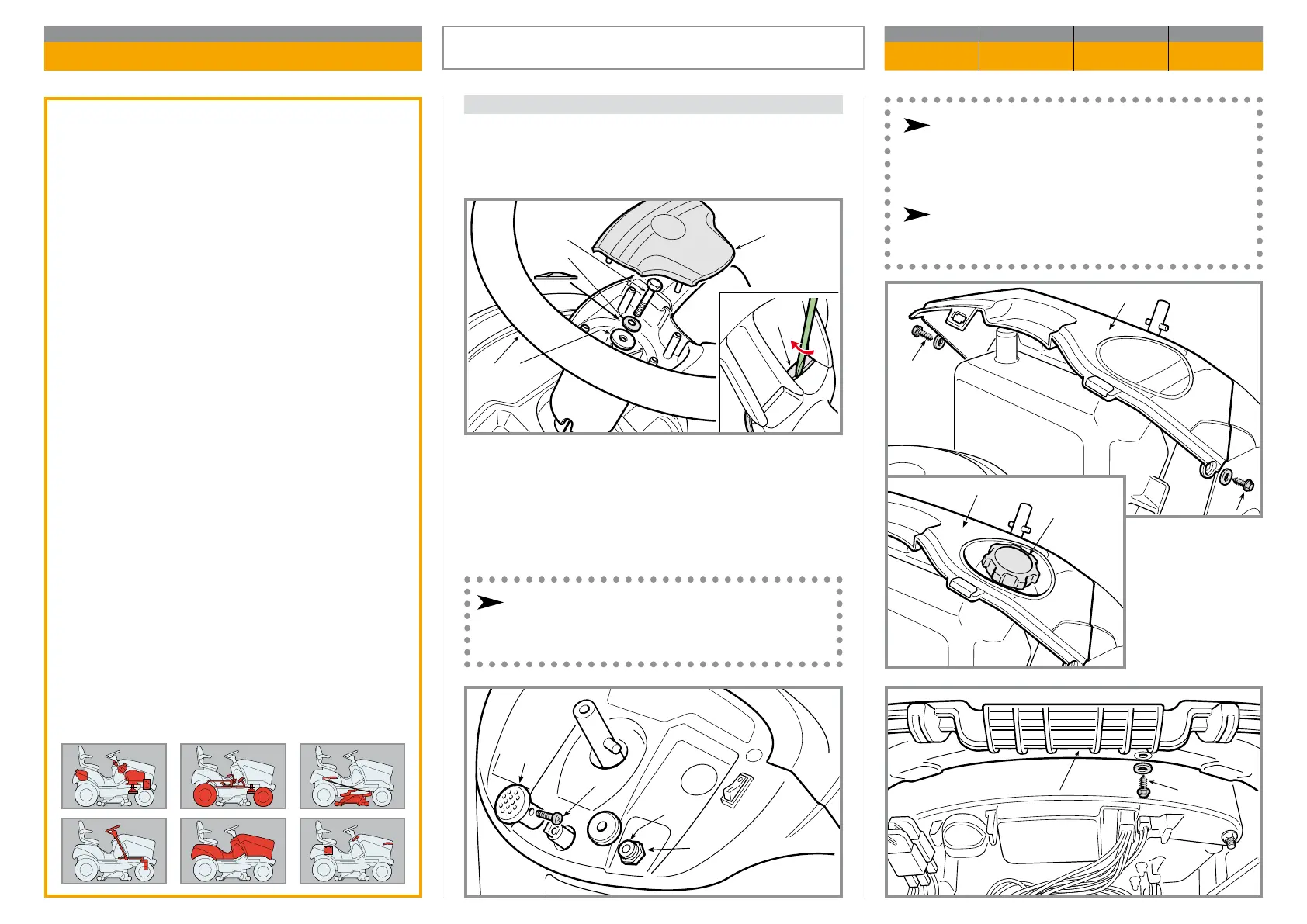

A) Removing the dashboard
Use a screwdriver to remove the central cover (1a) of
the steering wheel (1), being careful not to damage it.
Unscrew the screw (2), remove the Belleville washer
(3) and washer (4) and remove the steering wheel (1).
Unscrew nut (5) and dismantle the ignition key block
(6) without disconnecting the electric cables, to pre-
vent reassembly errors.
Models with cruise control:
Loosen the screw (7) and remove the control knob
(8).
General informations
Removing the dashboard gives better access to:
– the accelerator
– the ignition block,
– various electrical components.
Related topics
---
REMOVING THE DASHBOARD
AND FRONT COVER
CHAPTER REVISION FROM ... PAGE
5.3 0 2018 1 of 2
Models with front tank:
Remove the tank cap (9) and protect the noz-
zle to prevent foreign bodies from falling into the
tank.
Models with dashboard extension:
Remove the dashboard extension (10), secured
by screws (11) and (12).
