WORKSHOP MANUAL

Map of functional units

TC 108 SD - TC 118 SD

On assembly, be careful to:

– correctly position the keys (3) on the shafts;

– correctly locate the blades, with the ns facing to-

wards the inside of the cutting deck;

– t the exible disc (4) so that the concave part is

pressing against the knife;

– tighten the screws (1) with a torque wrench set to

45-50 Nm.

Remove the cutting deck

WARNING! Always wear protective gloves

when handling the blades and protect eyes when

sharpening.

WARNING! The blades are connected to

each other, the rotation of each blade engages

the rotation of the other.

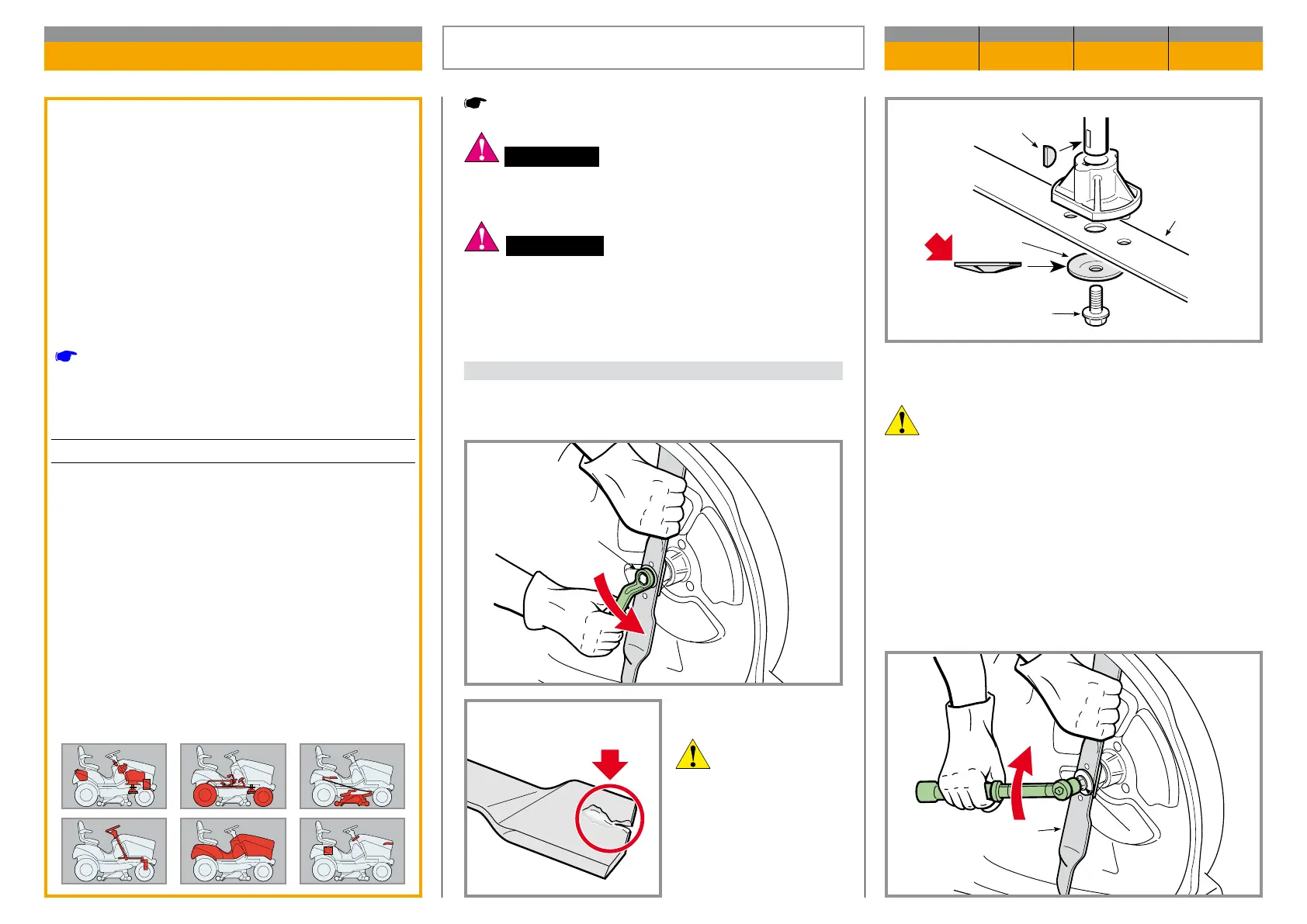

A) Removing and reassembling

For removing a blade it must be rmly held and the

cen tral screw (1) undone.

Always check that

the ns are intact with

cracks or breaks. Al-

ways replace damaged

blades.

General informations

A badly sharpened blade causes grass to be co

me yellow and reduces grass collection capabil

ity. If not balanced, excessive vibration can be

cau sed during use.

Fins on broken, bent or damaged blades reduce

the grass expulsion force and can cause damage

and injuries.
