Stiga TC 108 SD User Manual

WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD
General informations:
It is necessary to remove the rear tank to access
the hydrostatic transmission control belt and re
place the transmission unit.
Related topics:
[
5.2] Removal of the wheel cover
CHAPTER REVISION FROM ... PAGE
5.7 0 2018 1 of 2

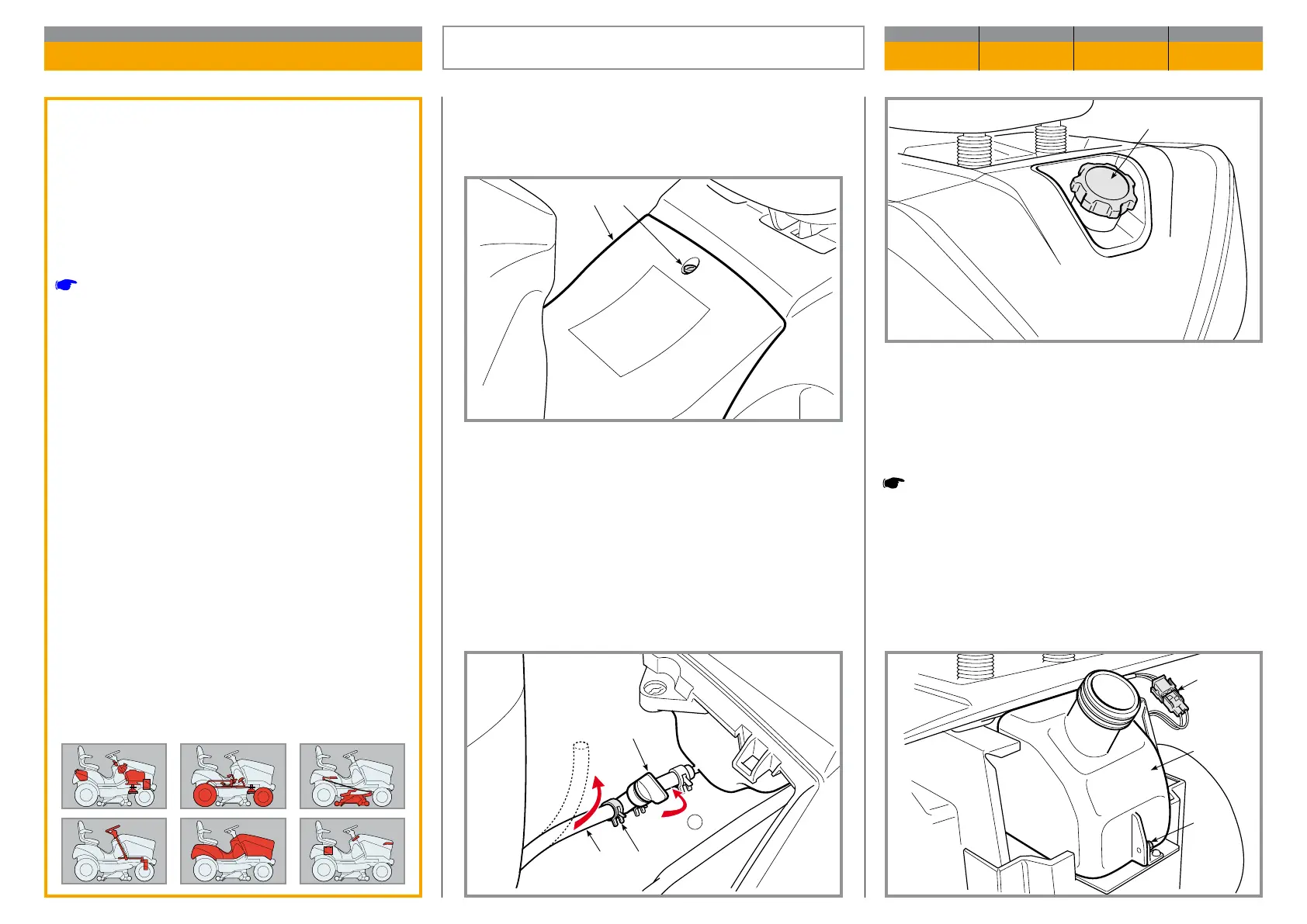

REMOVING THE REAR TANK
(if present)
Remove the tank cap (6) and protect the nozzle to
prevent foreign bodies from falling into the tank.
Remove the rear part of the wheel cover
Disconnect the level indicator connector (7).
Loosen the screw (8) and remove the tank (9).
Remove the central safety guard (1) fastened in place
by the screw (2).
Close the tap (3), remove the clamp (4) and discon-
nect the output tube (5) holding it up to prevent spill-
age of any fuel left inside it, making sure not to dis-
perse it in the work area.



 



