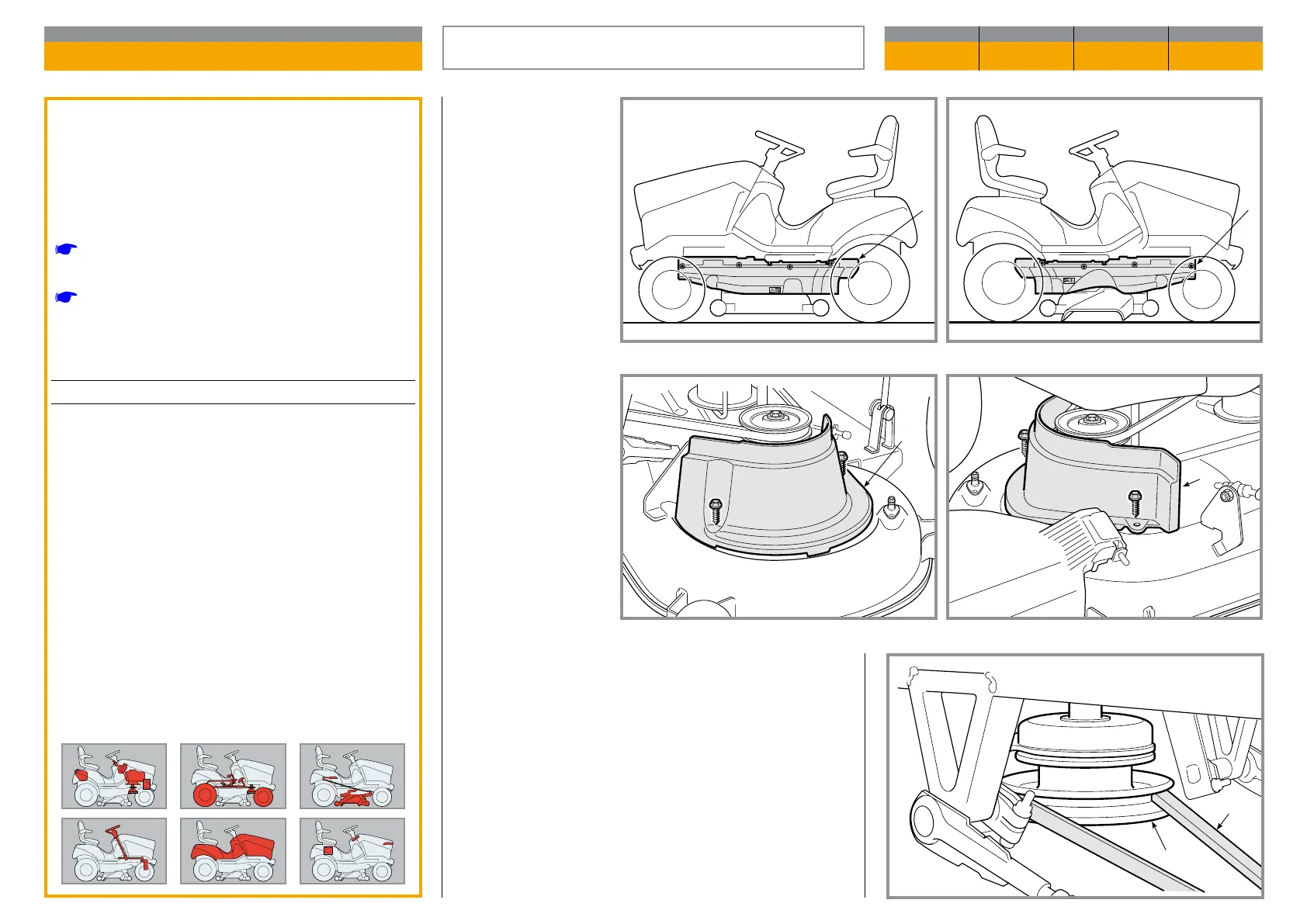

WORK
SHOP MANU
AL
Map
of functional
units
T
C 108 SD -
TC 118 SD
Lo
wer
the
cutting
deck completely
.
Identify
the fastening
scre
ws
and
remov
e
the
left
(1)
and
right
(2)
external
saf
ety
guard.
Remo
ve
the
left
(3)
and
right
(4)
internal
safety guar
ds.
Pull
one
branch
of
the
belt
(5)
to
release
it
from
the
clutch pulle
y (6).
General informations
Related topics
[
4.1]
Adjusting
the
engagement
and
checking
the blade brake
[
8.2]
Belts assembly
Tightening torques
7
Nut
for idle
pulle
y
...........................
20
÷ 25
Nm
REPLA
CEMENT OF
THE BLADES
CONTROL BEL
T
CHAPTER
REVISION
FROM ...
P
AGE
6.5
0
2018
1 of 2
54
56
Table of Contents
Structure of the Manual
2
Technical Specifications
3
Functional Units Map
3
Terminology and Abbreviations
3
Index of Functional Units
4
Identification
10
Safety Information
12
Tools
14
Lifting
15
Fitting Snap Rings
16
Joint Pivot Pins
16
Crown Fasteners
17
Criteria for Maintenance
18
Occasional Tuning
18
Routine Maintenance
18
Troubleshooting and Remedies
19
Engine and Tank Troubles
19
Transmission - Brakes - Wheels Troubles
20
Cutting Deck Troubles
21
Steering Troubles
21
Adjusting Blade Engagement
22
Checking the Blade Brake
22
Brake Adjustment
23
Drive Belt Adjustment
24
Drive Pedal Adjustment
25
Adjusting the Pedal in the “Neutral” Position
25
Adjusting the “Neutral” Position of the Micro Switch
25
Aligning the Cutting Deck
26
Combined Adjustment to the Parallel and Minimum Front and Rear Height
26
Adjustment of the Longitudinal Position
26
Steering Allowance Adjustment
30
Steering Geometry Adjustment
31
Toe-In Adjustment
31
Adjustment of the Steering Wheel
31
Checking Blades Alignment
32
Removing, Sharpening and Balancing the Blades
33
Removing of Front Hood
35
Removal of the Wheel Cover
36
Removing the Rear of the Wheel Cover Only
36
Removing the Whole Wheel Cover
36
Removing the Dashboard and Front Cover
38
Removal of the Engine
40
Removal of the Rear Axle
44
Removal of Cutting Deck
46
Removing the Rear Tank
48
Replacement of Tyres and Wheels
50
Replacement of Front Wheel Bearings
51
Dismantling of the Steering Components
52
Dismantling the Steering Pinion and Ring Gear
52
Lower Bush Replacement
53
Replacement of the Drive Belt
54
Replacement of the Blades Control Belt
55
Replacement of the Supports and Shafts of the Blades
59
Replacement of the Bearings and the Shafts of the Blades
59
Replacement of the Accelerator and Adjustment of the Carburettor
63
Troubleshooting of the Electrical System
64
Cutting in the Safety Devices
67
Safety Microswitches Operation Check
68
Terminal Board Supply Check
69
Carburettor Solenoid Valve Operation Check
70
Starter Relay Operation Check
71
Electromagnetic Clutch Operation Check
72
Recharge Circuit Check
73
Checking the Lower Charging Limit
73
Checking the Upper Charging Limit
73
Maintenance of the Sealed Battery
74
Rules for Recharging the Battery
74
Fitting Safety Microswitches
75
Electrical Diagrams
76
Tightening Torques and Adjustments Summary
78
Belts Assembly
79
