WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD

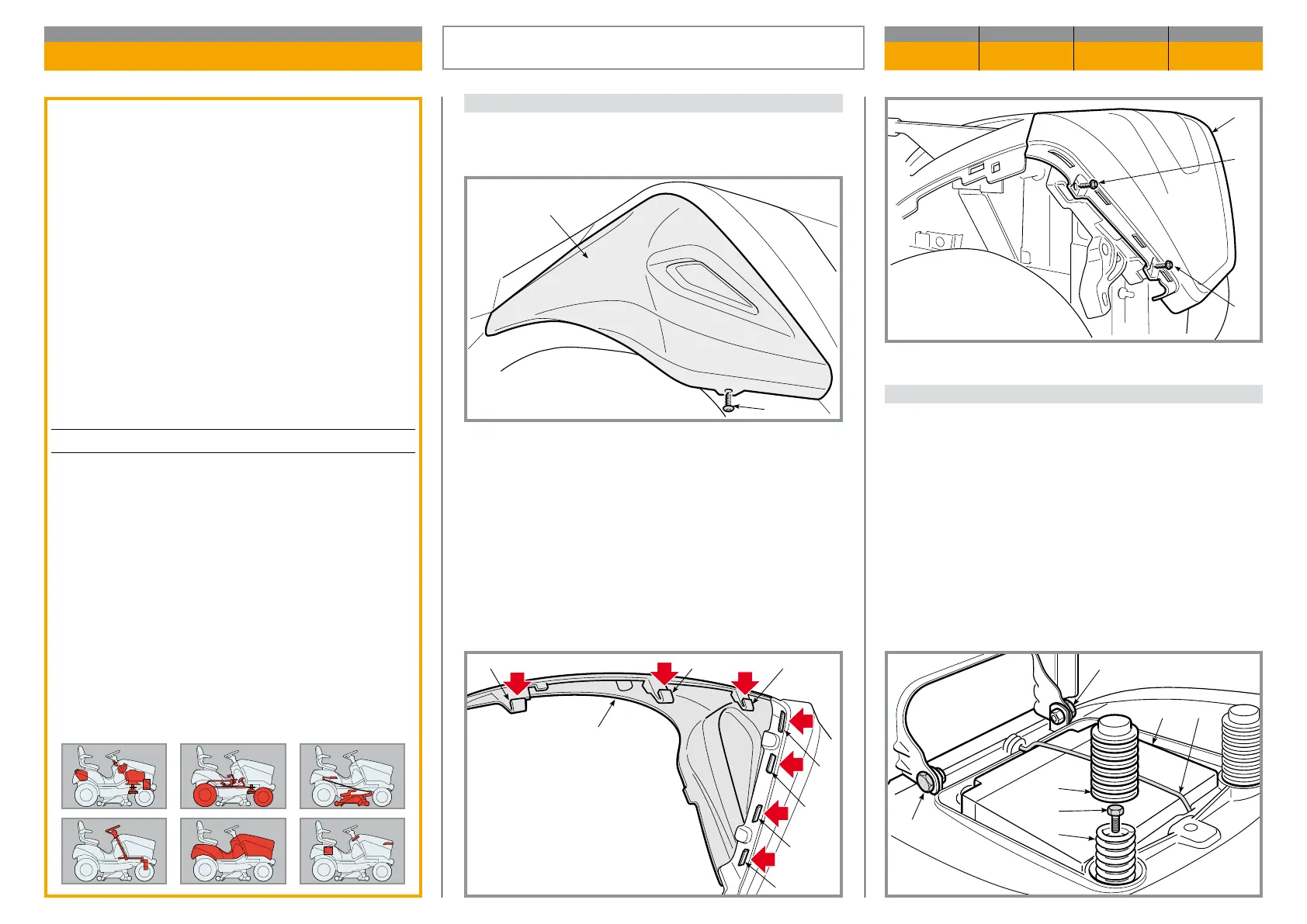

B) Removing the whole wheel cover
● Remove the rear cover as shown in point A).
FIRST disconnect the black cables (mass) and ONLY
THEN the red cable (positive) on the battery (11).
Disassemble the spring (12) and remove the battery
(11).
Remove the caps (13), loosen the internal screws (14)
and remove the springs (15).
Disassemble the two pins (16) and remove the seat.
A) Removing the rear of the wheel cover only
Loosen the two screws (1) and disassemble the two
side sections (2), unhooking the 7 fastener tabs (3)
positioned inside each of them.
Remove the rear cover (4) xed with four screws (5).
General informations
Removing the wheel cover gives access to:
– the mount for the lever to raise the deck;
– the supports of the footboards.
Removing the rear section of the wheel cover
makes it possible to access the rear tank and
necessary in order to access the transmission
belt..
Related topics
---
Tightening torques
20 Lower cover xing screw .............4,0 ÷ 4,5 Nm
REMOVAL OF THE WHEEL COVER
CHAPTER REVISION FROM ... PAGE
5.2 1 2018 1 of 2










  







