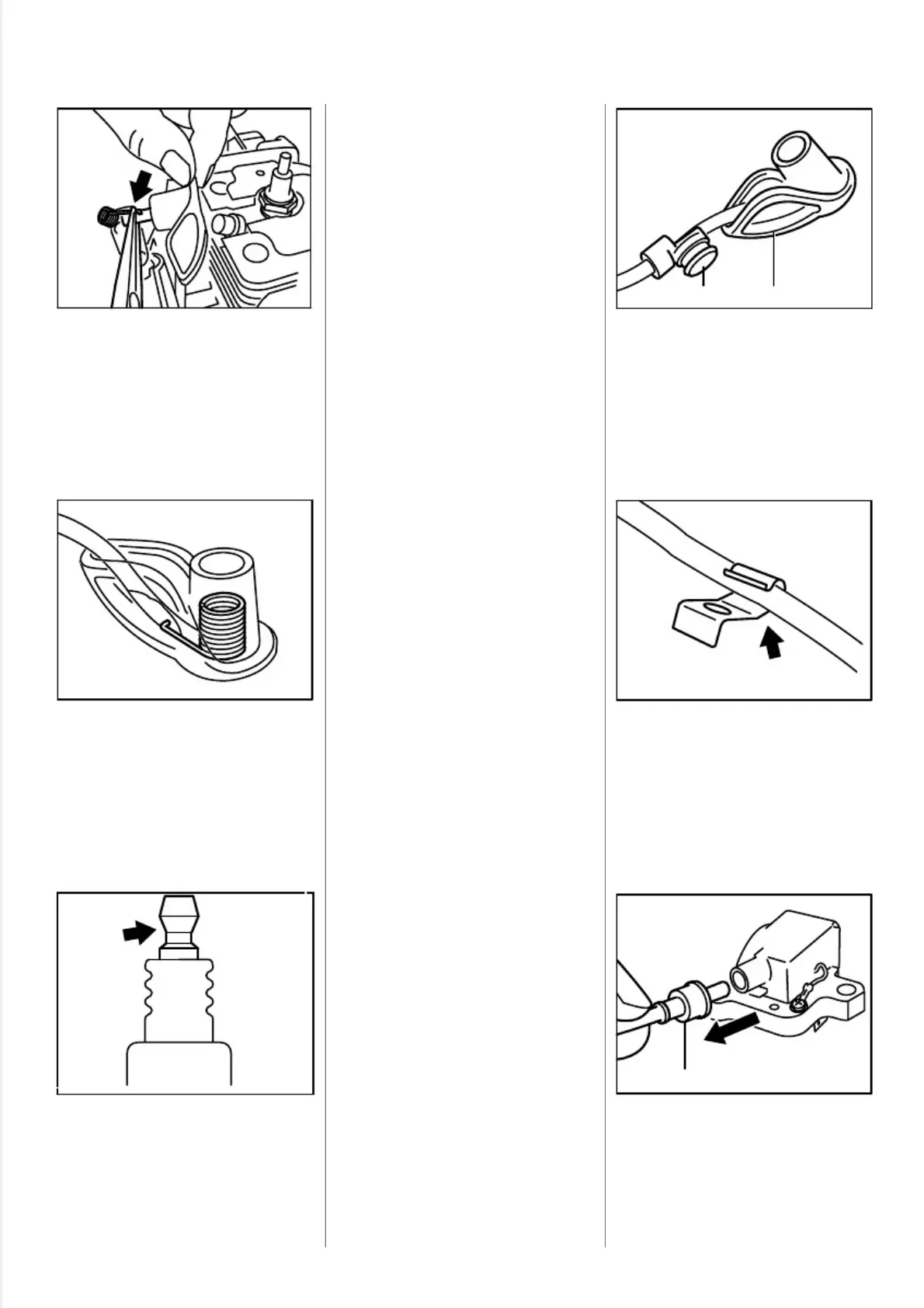

Pinch hook of leg spring into the
center of the lead, i.e. about
10 mm (3/8") from the end of
the lead.
•
Pull the lead back into the
boot so that the leg spring
locates properly inside it.
Important:If the spark plug
comes with a separate terminal
nut, always fit the nut on the
thread and tighten it down
securely.
- On FS 400/450, FR 450, attach
the cable retainer to the cylinder.
- Fit the boot on the spark plug.
- Fit the shroud - see 4.1.
- Remove the ignition module -
see 5.3.3.
•
Remove spark plug boot (1) -
see 5.1.
•
Pull off the cable retainer (2).
•
Remove the retainer.
•
Pull rubber boot (1) off the high
voltage output.
•
Unscrew the ignition lead from
the contact pin and pull it out of
the high voltage output.
5.2 Ignition Lead
(FS 400/450, FR 450)
2
5
0
R
A
0
8
9
V
A
2
5
0
R
A
0
9
2
2 1
V
A
2
5
0
R
A
0
9
0
V
A
2
5
0
R
A
0
9
4
1
V
A
V
A
2
5
0
R
A
0
0
8
2
5
0
R
A
0
5
3
V
A
24 FS 120, 200, 300, 350, 400, 450, FR 350, 450
