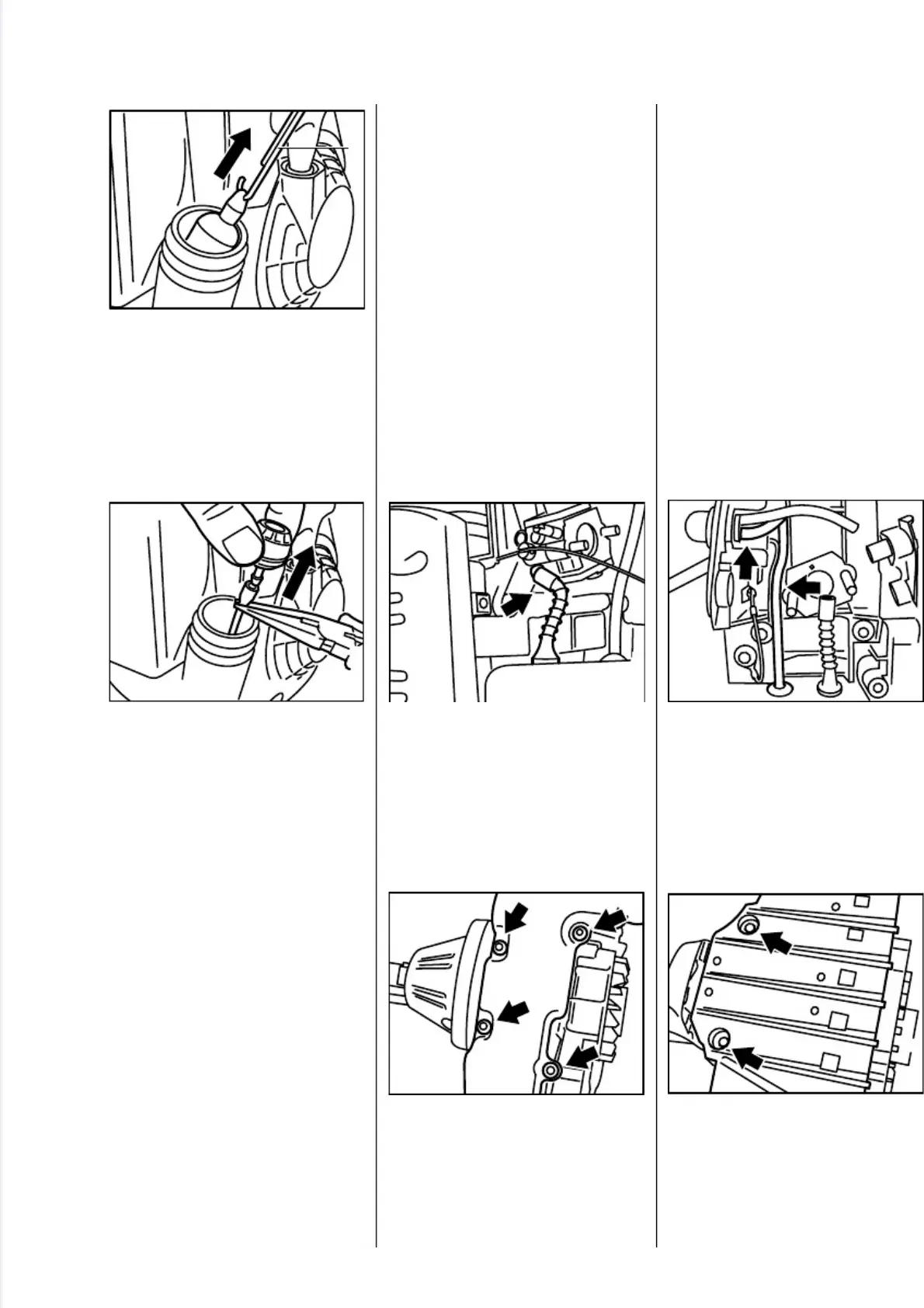

Use hook (1) 5910 893 8800 to
pull the pickup body out of the
fuel tank.
Note:
Do not stretch the fuel hose.
•
Pull the pickup body off the fuel
hose.
- Fit new pickup body.
Install in the reverse
sequence.
All models
- Drain the fuel tank.
- Remove the shroud -see 4.1.
- Removethe fan housing - see
6.2.1.
FS 120...350, FR 350
- On FR 350, remove powerhead
from support frame- see 9.3.
- Removethe filter housing - see
8.2.1.
•
Pull fuel hose off carburetor
elbow connector.
•
Take out the screws.
- Remove the fuel tank.
- Replace sleeves and grommets
if necessary.
- Remove fuel hoses if necessary.
Reassemble in the reverse
sequence.
- Tighten down screws to 6.0 Nm
(4.4 lbf.ft).
FS 400/450, FR 450
- On FR 450, removepowerhead
from support frame -see 9.3.
- Remove the carburetor - see
8.2.2.
•
Disconnect fuel hose from lower
connector on manual fuel pump
and pull it out of the guide.
FS 400/450 only
•
Take out the screws.
- Remove the guard plate.
8.5 Fuel Tank/
Hoses
2
5
0
R
A
1
7
6
V
A
2
5
0
R
A
1
7
7
V
A
2
5
0
R
A
1
7
8
V
A
2
5
0
R
A
1
7
4
1
V
A
2
5
0
R
A
1
7
5
V
A
2
5
0
R
A
1
7
9
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 45
