- Removefan housing with rewind
starter -see 6.2.
Starter rope
- Remove rope rotor - see
"Standard Repairs, Trouble-
shooting" handbook.

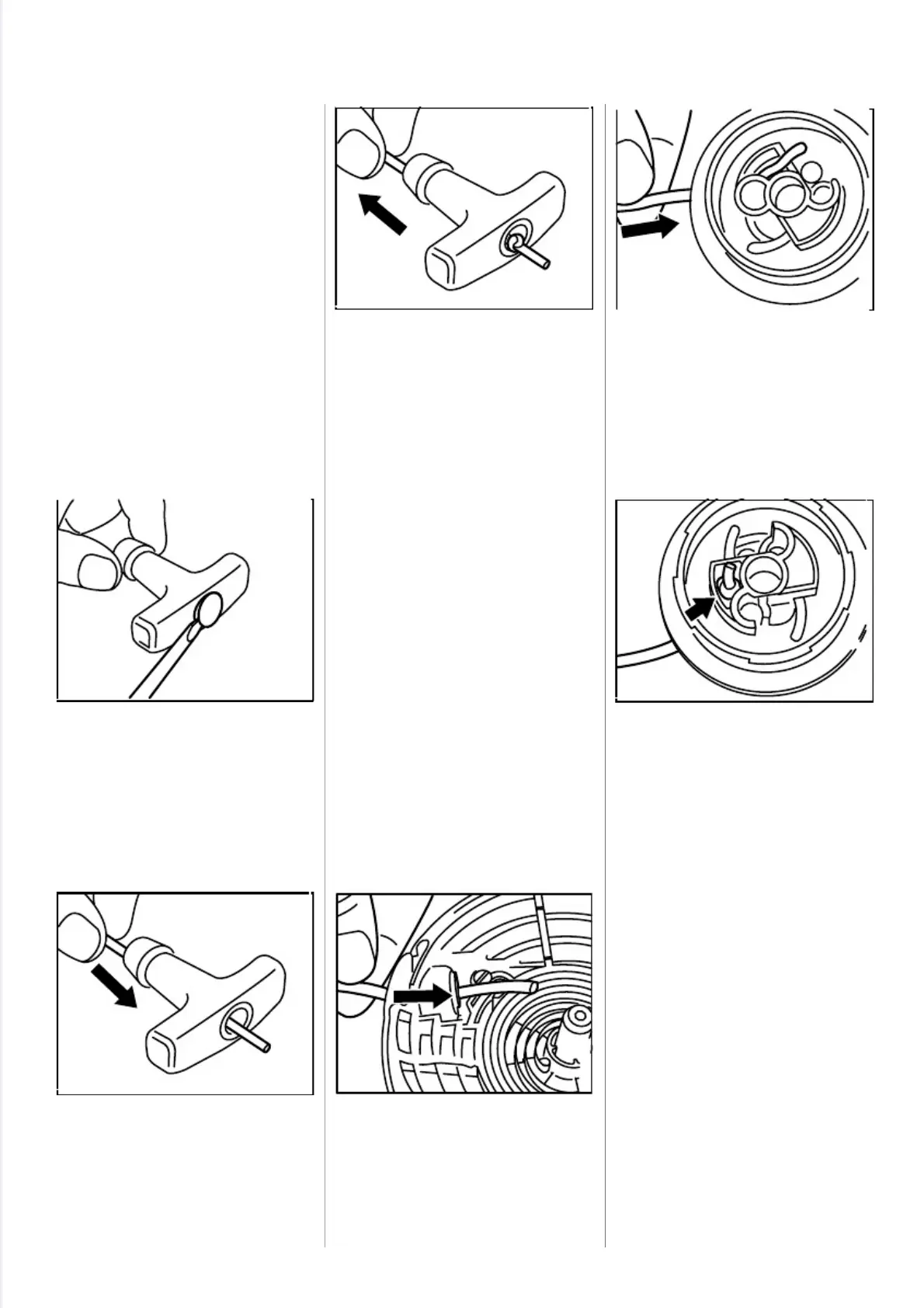

- Remove the starter rope from
the rotor.
•
Pry cap out of starter grip.
- Pull rope out of starter grip.
- On FR 350/450, slip tube
(75 mm/2.95") over the starter
rope.
•
Thread end of new starter rope
through the underside of the star-
ter grip.
- Secure end of rope with a simple
overhand knot.
•
Pull the rope back to locate the
knot in the starter grip.
- Push cap into starter grip.
- Secure starter rope to rope rotor.
- Install the rope rotor.
Starter grip
The starter grip is supplied with
starter rope.
- Remove the rope rotor - see
"Standard Repairs, Trouble-
shooting" handbook.
- Pull the knot out of the recess in
the rope rotor.
- Undo the knot and pull the rope
out of the rotor and fan housing.
- On FR 350/450, slip tube
(75 mm/2.95") over the starter
rope.
•
Thread the starter rope
0000 195 8200 through the gui-
de bush from outside the
fan housing.
•
Thread rope through the hole in
the side of the rotor.
- Secure the starter rope with a
simple overhand knot.
•
Pull the rope back into thr rotor
so that the knot locates in the
recess.
- Install the rope rotor - see
"Standard Repairs, Trouble-
shooting" handbook.
- Tension the rewind spring - see
6.2.2.
- Fit fan housing withrewind
starter -see 6.2.2.
