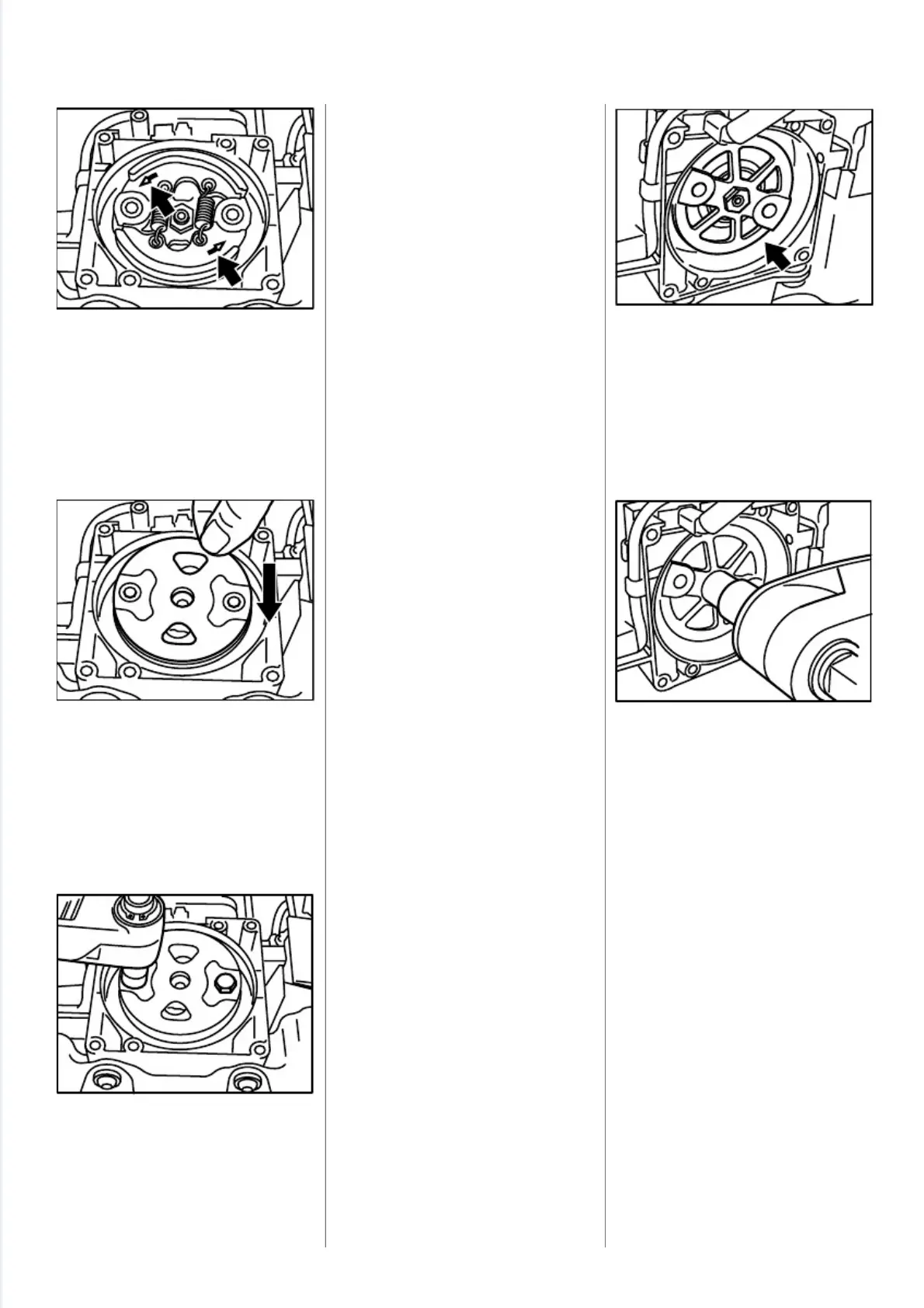

Installation
•
Fit clutch shoes with springs and
bushings so that the arrows point
counterclockwise.
•
Fit cover in position.
•
Insert screws and tighten down
to 12 Nm (8.8 lbf.ft).
- Pull locking strip out of cylinder.
- Fit spark plug and tighten down
to 20 Nm (15 lbf.ft).
Important:
If the spark plug
comes with a separate terminal
nut, always fit the nut on the
thread and tighten it down
securely.
- Fit the boot on the spark plug.
- Fit the shroud -see 4.1.
-Fit clutch housing -
see 9.1or 11.2.
- Remove clutch -see 3.1.
•
Unscrew carrier from end of
crankshaft.
•
Fit the carrier and tighten it
down to 24 Nm (17.7 lbf.ft).
- Install the clutch -see 3.1.
3.2 Clutch Carrier
2
5
0
R
A
2
3
2
V
A
2
5
0
R
A
2
3
1
V
A
2
5
0
R
A
2
3
4
V
A
2
5
0
R
A
2
3
5
V
A
2
5
0
R
A
2
3
3
V
A
8 FS 120, 200, 300, 350, 400, 450, FR 350, 450
